220V Nema42 20Nm Closed Loop Stepper Motor Driver 3 Phase Motor Stepper With Driver Kit Cnc
Price:
$198-214.20 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Lichuan
Product Description
Packing List
|
NO.
|
Product Name
|
Model / Description
|
Quantity
|
|
1
|
3ph Nema42 closed loop stepper motor
|
LC110H3219
|
1
|
|
2
|
3phase closed loop stepper drive
|
LCDA2260E
|
1
|
|
3
|
Encoder Cable
|
Standard (3m)
|
1
|
Products Description

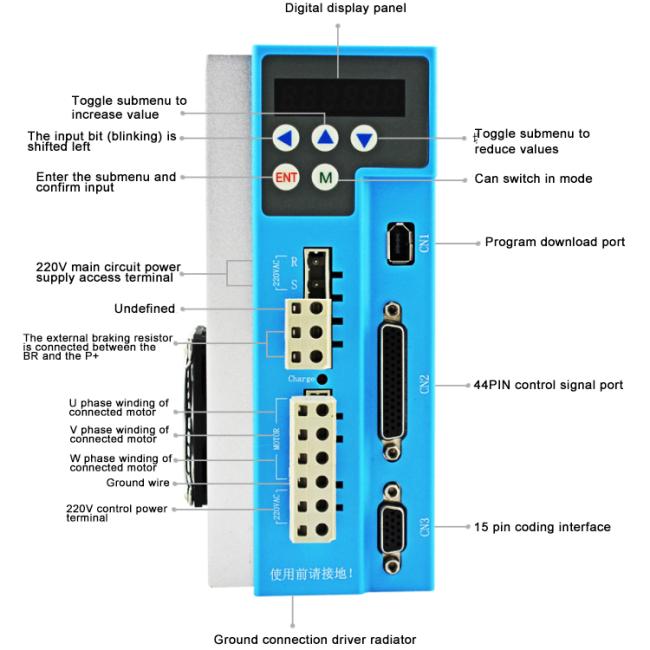

3 phase Digital Closed-loop Stepper Drive LCDA2260E
LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
|
Lichuan 3-phase digital Stepper Drive
|
|
|
|
|||
|
Product Model
|
LCDA2260E
|
Product Size
|
202 x 139 x 75mm
|
|||
|
Product Weight
|
1.33KG
|
Alarm Output
|
stand by
|
|||
|
Power Range
|
AC:220V
|
Subdivision Range
|
Adjustable on the drive
|
|||
|
Current Range
|
Peak current 6A
|
|
|
|||
|
Pulse Forml:Pulse + direction
|
|
|
|
|||
|
Drice Motor:Three-phase 86 closed-loop stepper motor
|
|
|
|
|||
|
Max Pluse Response Frequency:200KHZ(Pulse Width Greater than 2.5μs)
|
|
|
|
|||
|
Signal voltage:Default + V5,connected to +V12/V24 requires series resistor
|
|
|
|
|||
|
Three-phase 110mm closed-loop stepper motor
|
|
|
|
Model
|
LC110H3219
|
|
|
Weight(kg)
|
11.1KG
|
|
|
Length(mm)
|
219mm
|
|
|
Holding Torque(N.m)
|
20N.m
|
|
|
Phase Current(A)
|
6.9A
|
|
|
Rotational Inertia(g.cm²)
|
17400
|
|
|
Phase Resistance(Ω)
|
1.859
|
|
|
Step Angle(°)
|
1.2
|
|
|
Shaft Diameter(mm)
|
φ19
|
|
|
Shaft Extension(mm)
|
Keyway 6 x 30
|
|
|
Shaft Length(mm)
|
40mm
|
|
|
Phase Inductance(mH)
|
7.26
|
|
|
Lead wire(No.)
|
3
|
|
