5.5KW 7.5KW 11KW 18KW 22KW 30KW 37KW AC Servo Motor Kit For Laser Cutting Machines
Price:
$807-2,899 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
LICHUAN
Product Description
Packing List
|
NO.
|
Product Name
|
Model / Description
|
Quantity
|
|
1
|
Lichuan 5.5KW-37KW Servo Motor
|
23Bit servo motor
|
1
|
|
2
|
Lichuan AC Servo Driver
|
High torque series servo driver
|
1
|
|
3
|
Motor Cable
|
Standard (3m)
|
1
|
|
4
|
Encoder Cable
|
Standard (3m)
|
1
|
|
5
|
Servo Driver Instruction Book
|
Standard
|
1
|

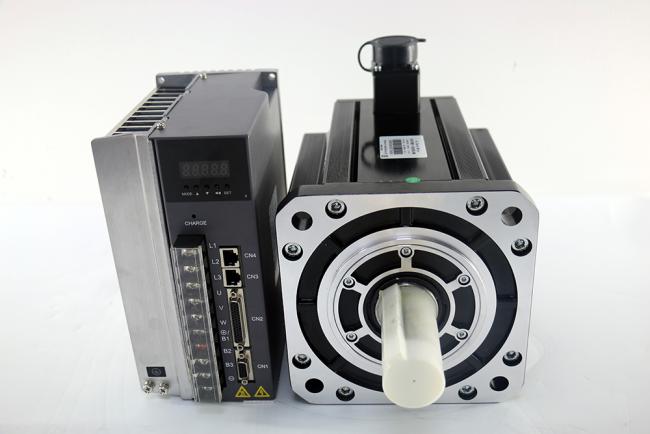

Products Description
Lichuan 180-200 series AC servo motor includes 5.5KW-37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.
|

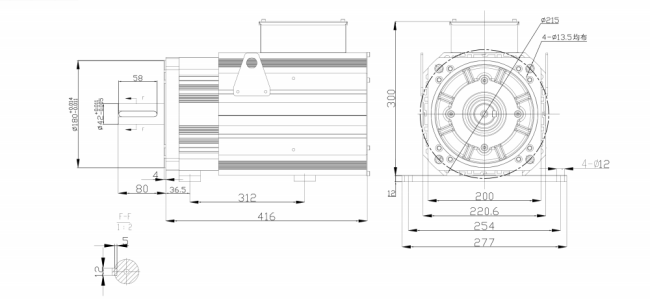

Technical requirements
|
|
|
|
Motor Name
|
180M70015
|
|
|
Rated power
|
11KW
|
|
|
Rated torque
|
70N.m
|
|
|
Rated voltage
|
380V
|
|
|
Rated speed
|
1500r/min
|
|
|
Insulation grade
|
Grade F
|
|
|
Protection grade
|
IP65
|
|
|
Ambient temperature
|
-20°C--+50°C
|
|
|

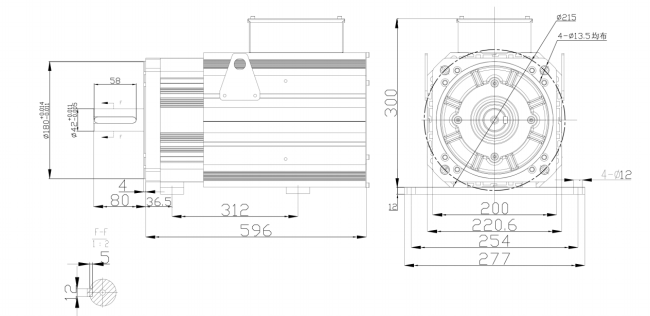

Technical requirements
|
|
|
|
Motor name
|
200M235015B
|
|
|
Flange
|
200
|
|
|
Rated power
|
37KW
|
|
|
Rated Current
|
50A
|
|
|
Rated torque
|
235N.m
|
|
|
Rated voltage
|
380V
|
|
|
Rated speed
|
1500r/min
|
|
|
Motor size
|
70*35*30cm
|
|
|
Insulation grade
|
Grade F
|
|
|
Protection grade
|
IP67
|
|
|
Encoder type
|
23bit
|
|
|
Brake rated voltage
|
DC24V
|
|
|
Brake rated power
|
58w
|
|
|
Attractive voltage
|
<18v
|
|
|
Release voltage
|
>1.5v
|
|
|
Operating noise
|
<70(dBA)
|
|
|
Ambient temperature
|
-20°C--+50°C
|
|
