Pure Tungsten Lab Sintering Furnace Materials Processing Hydrogen Sintering Furnace

Price Negotiable

Price: $45000-60000

MOQ: 1 Set

Delivery Time: 90 Days

Brand: Nuotian

Product Description

Pure Tungsten Materials Sintering Lab Furnace Hydrogen Sintering Offering Precise Temperature Control for Laboratory Scale Processing of up to 2200C

Thenium material processing 2200c laboratory scale furnace is high level precision customized for laboratory-scale tungsten material processing research tasks.
With superior intermediate frequency induction and vacuum/protective atmosphere systems, enabling ultra-high-temperature operations (attaining 2200C) to fulfill the rigorous sintering and heat treatment needs of various advanced materials.
Available in 3 models, it supplies flexible options for small-batch experiments or sample preparation. Adopts IGBT control (paired with Japanese Shimaden FP93 temperature controller) and American Raytek infrared temperature measurement (covering 1000℃–3200℃), ensuring precise temperature regulation ±5℃ uniformity.
Under Argon, Hydrogen and Nitrogen or vacuum (micro positive pressure) atmosphere working, with a closed inner circulating water cooling system for stable heat dissipation. Optional configurations (e.g., gas purifier) can be customized to match specific material processing requirements, making it ideal for R&D and small-scale production in material science field.

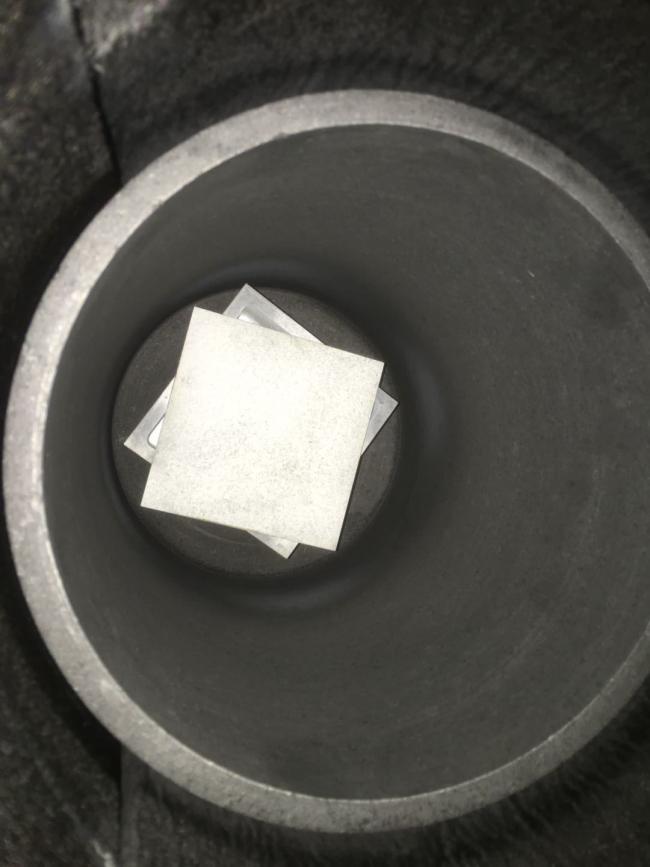

Tungsten crucible as the high temperature, Alumina and Zirconia as the insulation layer and temperature keeping layer, special design for pure tungsten sintering.
With hydrogen ignition device ensure be safe operation.

Materials processing: Processing of pure tungsten for increasing the density.

Laboratory Furnace --Technology Parameter
Model Parameter		NTI-SJL-4L	NTI-SJL-9L	NTI-SJL-57L
Working size	mm	φ150×250	φ200x300	φ350x600
Heating type		IF induction heating
Control type	/	IGBT control
HT zone capacity	L	4	9	57
Loading weight	g	HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³
IF power	Kw	50	60	100
Ultimate vacuum	Pa	10-3
Max.working temperature	℃	2200	2200	2200
Usual working temperature	℃	2100	2100	2100
Temperature uniformity	℃	±5	±5	±5
Working environment	/	Vacuum or Ar. Nitrogen, Hydrogen atmosphere protection(micro positive pressure)

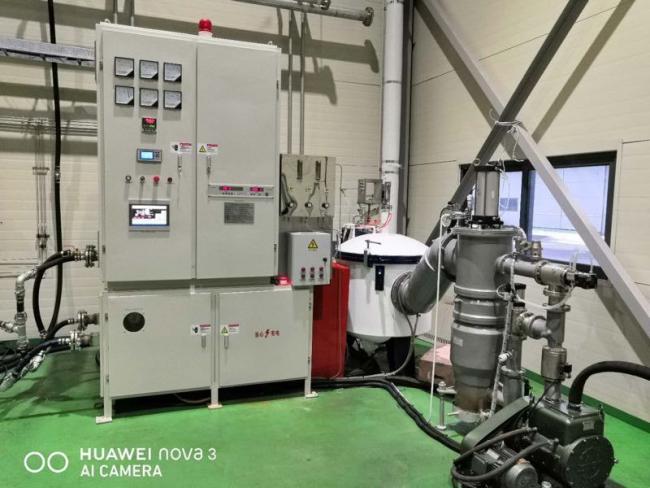

Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.

Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
Temperature Measurement: Adopts Raytek (US) infrared thermometer to realize real-time and accurate high-temperature monitoring (supporting precise temperature control up to 2200°C).
Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.

We provide comprehensive after-sales support to ensure your equipment operates smoothly:

Warranty: 1-year warranty for core electrical components against manufacturing defects.
Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
