2200°C Sintering Resistance Furnace with Vacuum Atmosphere for B4C

Description:

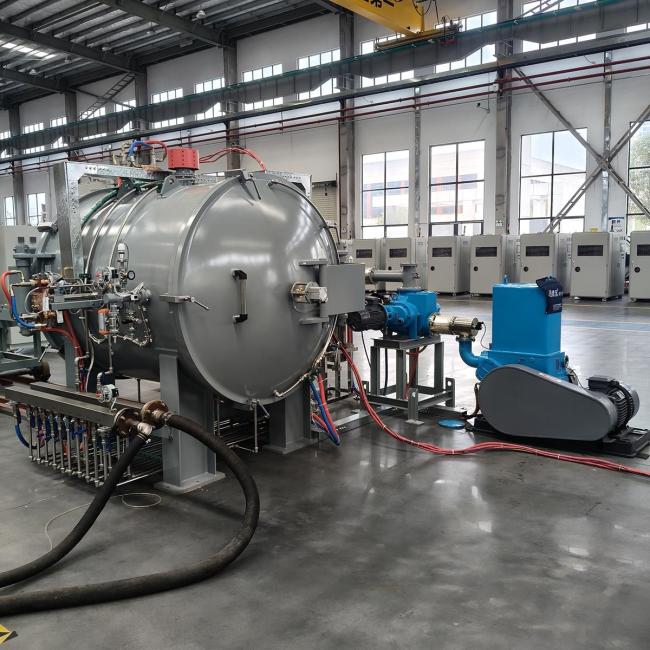

• This specialized vacuum resistance furnace is purpose-built for batch-oriented industrial manufacturing.
• Boasting a high-efficiency resistance heating system and a hermetically sealed vacuum chamber, it achieves a maximum operating temperature of up to 2200°C, with an ultimate vacuum level of 20 Pa.
• Operating on 380V three-phase power and regulated by thyristor control, it delivers stable and uniform temperature performance, even during extended, continuous production cycles.
• Its heavy-duty industrial frame is engineered to withstand the rigors of continuous operation, while the intelligent temperature control system precisely modulates heating rates and holding periods. This ensures consistent processing of large batches, minimizing product variation and boosting overall yield for high-demand materials.
• Equipped with automatic safety features—including vacuum leak detection, over-temperature cut-off, and power failure protection—and a streamlined user interface, it reduces manual labor and operational risks. This makes it an ideal choice for the mass production of hard alloys, SiC components, and carbon-based materials.

Application:

• Graphite Electrode Production: Mass heat treatment for metallurgical and industrial applications.
• PI Film Debinding: High-throughput processing for carbon fiber precursor manufacturing lines.
• Radiation-Proof Material Sintering: Large-batch production of carbon-based shielding components.

Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 2200℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
