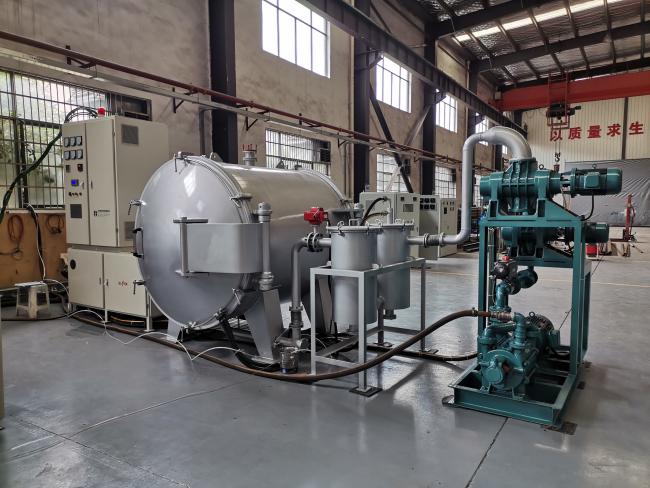

Refractory Metals 2200°C HT Vacuum Sintering Graphite Resistance Furnace

Description:

• Designed for industrial batch production, this 1-to-1 vacuum resistance furnace utilizes high-efficiencyresistance heating to reach operating temperatures up to 2200°C, supported by a well-sealed vacuumchamber with an ultimate vacuum level of 20Pa. Powered by 38oV three-phase electricity and controlled bysilicon-controlled rectifier (SCR) modules, the system ensures stable and uniform temperatureperformance even under long-duration continuous production
• Featuring a heavy-duty industrial structure resistant to wear from continuous operation, its intelligent temperature control system precisely adjusts heating rates and holding durations to ensure consistentprocessing of large batches. This design minimizes product deviation and enhances overall yield forhigh-demand materials.
• Outfitted with full-automatic safety safeguards including vacuum leakage inspection, overtemperature shutdown and power outage protection, the device also adopts a concise and user-friendly operating panel. It curbs manual operating workload and lowers potential operational risks, making it well-suited for bulk manufacturing of cemented carbide, silicon carbide parts and carbon-based materials.

Application:

• Graphite Electrode Production: Mass heat treatment for metallurgical and industrial applications.
• PI Film Debinding: High-throughput processing for carbon fiber precursor manufacturing lines.
• Radiation-Proof Material Sintering: Large-batch production of carbon-based shielding components.

Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 2200℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
