3600AX Commercial Truck Brake Drums 16.5"X7" Outboard Mount For Class 8 Trucks
Premium Heavy-Duty Brake Drum 3600AX | 16.5" x 7" Outboard Mount for Class 8 Trucks
Product Overview

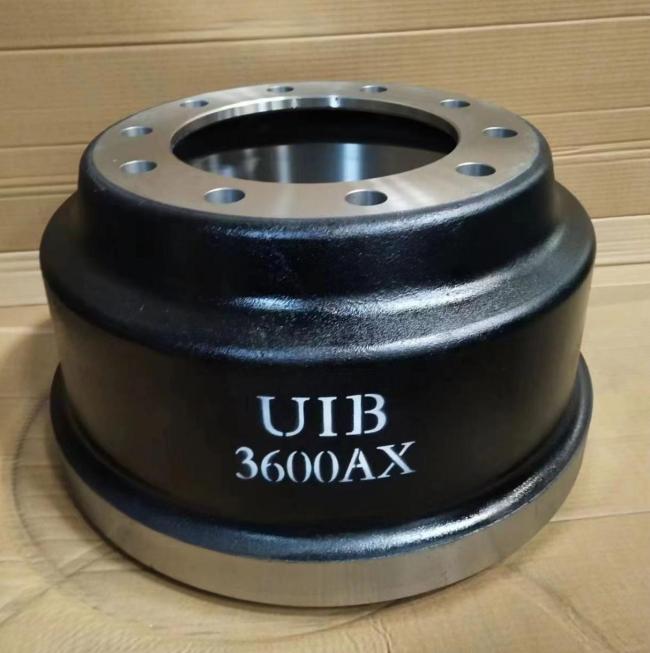

The 3600AX Brake Drum is the industry standard for heavy-duty commercial vehicles. Engineered for maximum durability and heat management, this 16.5" x 7" outboard mount brake drum is designed to meet the rigorous demands of long-haul trucking and severe-service applications.
Manufactured from High-Carbon G3000 Grey Iron, our 3600AX drum provides superior thermal conductivity and resistance to heat checking. Each unit is precision-machined to ensure a perfect fit on standard 10-hole wheel hubs. Whether you are replacing a worn drum on a Freightliner Cascadia or a Kenworth T680, our 3600AX ensures consistent stopping power and reduced maintenance downtime.
Technical Specifications
|
Attribute |
Detailed Specification |
|
Industry Part Number |
3600AX / 3600A |
|
Brake Size |
16.50" x 7.00" (419mm x 178mm) |
|
Mounting Type |
Outboard |
|
Bolt Hole Count |
10 Holes |
|
Bolt Circle Diameter (PCD) |
11.25" (285.75mm) |
|
Pilot Diameter (Center Hole) |
8.78" (223mm) |
|
Overall Depth |
10.54" (267.7mm) |
|
Brake Surface Width |
7.56" |
|
Material |
Premium High-Carbon G3000 Iron |
|
Weight |
Approx. 112 lbs (50.8 kg) |
Vehicle Compatibility
The 3600AX Brake Drum is a universal replacement for most North American Class 8 heavy-duty trucks and trailers:
Freightliner: Cascadia, Columbia, Century, M2
Kenworth: T660, T680, T800, W900
Peterbilt: 379, 386, 389, 579
International Navistar: ProStar, LoneStar, TranStar
Trailer Axles: Compatible with Meritor, Dana, and Hendrickson 23,000 lb axles.
Cross-Reference & Interchange
This product is a direct interchange for the following major brand part numbers:
Gunite: 3600AX, 3600A, 3135X
Webb: 66864, 66864B, 61528
Meritor: 53-123385-002
Dayton: 123385, 123448
Haldex: 3600AX, 3922X
Bendix: 3292404
Key Benefits
Advanced Thermal Management: Formulated to dissipate heat faster than standard aftermarket drums, preventing "brake fade" and extending the life of your brake linings.
Precision Dynamic Balancing: Every 3600AX is balanced to strict tolerances to eliminate wheel vibration, protecting your hub seals and tires from premature wear.
Structural Integrity: The reinforced mounting flange and heavy-duty casting prevent warping and ensure consistent pedal feel under maximum load.
Anti-Corrosion Coating: Treated with a specialized industrial finish to resist rust and ensure a professional appearance and long service life.
FAQ
Q1: Is the 3600AX suitable for steer axles or drive axles?
A: The 3600AX is primarily designed for rear drive axles and trailer axles that utilize a 16.5" x 7" brake shoe. For steer axles, please verify the required width, as they often use 5" or 6" drums.
Q2: What is the benefit of the "AX" suffix?
A: The "AX" typically denotes an "Extra-Heavy" or "Advanced Performance" casting design, optimized for better heat absorption compared to standard 3600A models.
Q3: How do you handle shipping for such heavy components?

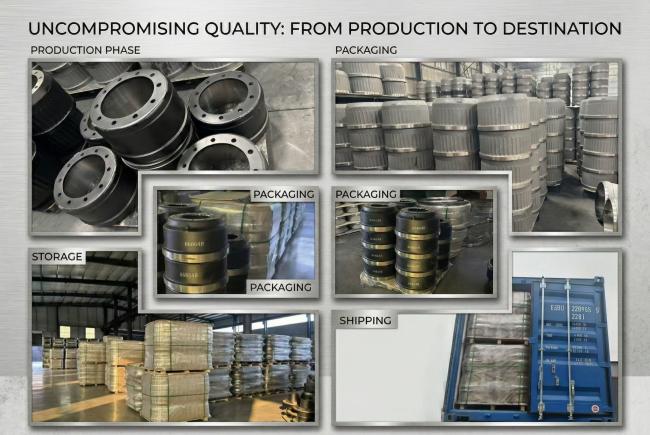

A: We provide secure palletized shipping for bulk orders. Individual units are protected with moisture-proof wrapping to ensure they arrive at your shop in perfect condition.
