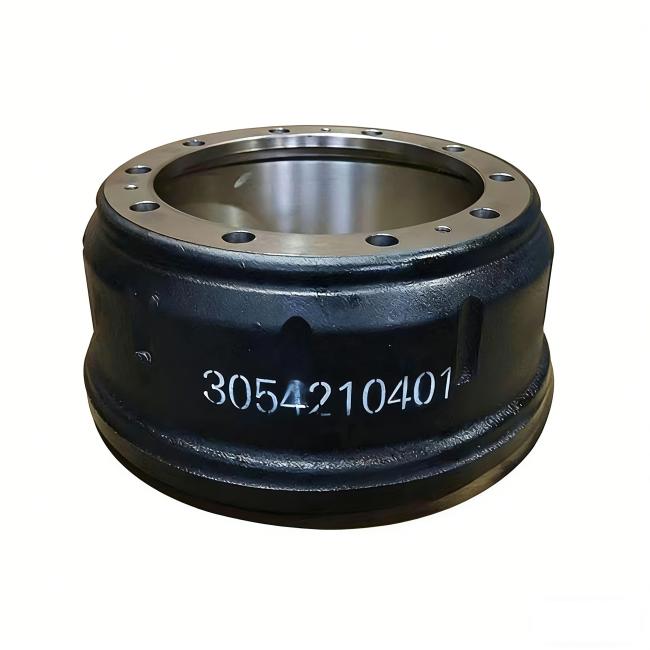

Premium Brake Drum 3054210401 for Mercedes-Benz Trucks - High-Performance Cast Iron
Product Overview
Our high-performance Brake Drum (OE# 3054210401) is engineered to provide superior stopping power and thermal stability for heavy-duty commercial vehicles. Manufactured from high-grade grey cast iron, this brake drum ensures maximum durability and resistance to heat cracking under extreme loads.
Designed specifically for Mercedes-Benz Actros, Axor, and Atego series, it meets or exceeds OEM standards to guarantee a perfect fit and reliable operation in demanding long-haul conditions.
Vehicle Compatibility
This brake drum is widely used in the following Mercedes-Benz commercial vehicle series:
Mercedes-Benz Actros: MP2 / MP3 Series
Mercedes-Benz Axor: 2 Series
Mercedes-Benz Atego: Various heavy-duty models
Bus/Coach Applications: Suitable for specific Mercedes-Benz bus chassis.
Note: Please verify the dimensions and OE cross-reference before purchasing to ensure 100% compatibility with your specific axle configuration.
Technical Specifications
Precision-engineered for safety, the technical parameters of the 3054210401 brake drum are as follows:
|
Feature |
Specification |
|
OE Number |
3054210401 |
|
Brake Surface Diameter |
410 mm |
|
Total Height |
255 mm |
|
Brake Surface Width |
175 mm |
|
Number of Bolt Holes |
10 |
|
Pitch Circle Diameter (PCD) |
335 mm |
|
Center Bore Diameter |
281 mm |
|
Material |
GG25 / G3000 Grey Cast Iron |
|
Weight |
Approx. 46.5 kg |
Cross-Reference & Interchange
To help you find the right part, this product is equivalent to the following industry reference numbers:
Mercedes-Benz: 305 421 04 01 / A3054210401
DT Spare Parts: 4.62310
Febi Bilstein: 02213
Meyle: 034 042 3041
Textar: 94015600
TRW: DB4124
Key Benefits
Optimal Heat Dissipation: Advanced metallurgy prevents "brake fade" by efficiently dispersing heat during prolonged braking.
Extended Service Life: Enhanced wear resistance reduces the frequency of replacements, lowering your Total Cost of Ownership (TCO).
Precision Balancing: Each unit is factory-balanced to eliminate vibration, ensuring a smooth ride and protecting wheel bearings.
Corrosion Resistance: Coated with a protective oil/finish to prevent rust during storage and initial installation.
FAQ
Q1: How do I know if this brake drum fits my truck?
A: Check your current part for the stamped OE number 3054230401. You can also measure the internal diameter (410mm) and count the bolt holes (10) to confirm.
Q2: Does this product come with a warranty?
A: Yes, all our heavy-duty brake drums come with a 12-month / 100,000 km warranty against manufacturing defects.
Q3: Can I replace just one brake drum on an axle?
A: For safety and balanced braking performance, we strongly recommend replacing brake drums in pairs (both sides of the same axle).
