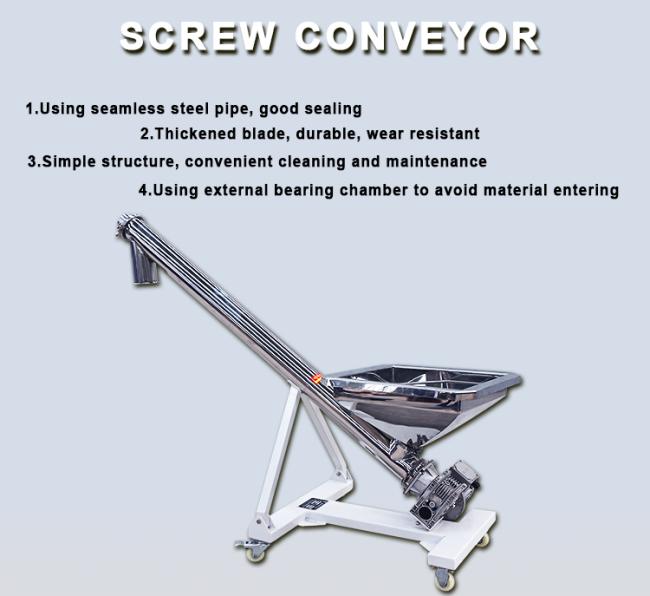

Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor

Name: Industrial Screw Conveyor Stainless Steel Silica Sand Feeder Conveyor
Brand: Xinxiang Dayong Vibration Equipment Co., Ltd.

Price Negotiable

Price: USD1300-2000

MOQ: 1

Delivery Time: 7-15 work days

Brand: DY

Product Description

Hot Sales Industrial Stainless Steel Vertical Screw Conveyor Feeder Silica Sand for Powder and Granule

Product Description

PRODUCT INTRODUCTION

This screw conveyor is a customizable machine. We can design and manufacture a screw conveyor according to customers' specific requirements. The screw conveyor also be called as other name in different country, for example, sometimes will also named it as pipe screw conveyor; auger conveyor; trough shaped screw conveyor; screw feeder; U-type screw conveyor and so on.

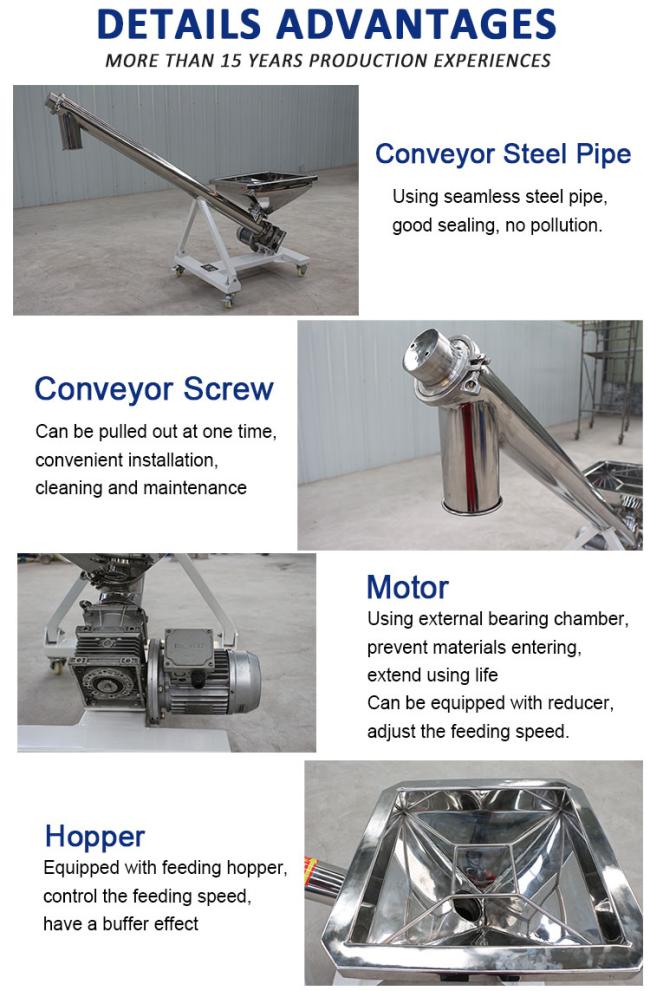

Main Features
1.Small size and rapid rotary speed, which ensures rapid and average conveying. 2.Good sealing quality and rigidity. The outer casing is made of seamless steel pipes, and the end caps are connected with flanges. 3.Modular design and excellent fabricating. 4.Inlets and outlets can be configured as required. 5.Dust-tight housing, high degree of sanitation.
Using ScopeLoose materials such as powder, granular and small piece material , which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc. While it is not applicable for materials with high viscosity and easy to be curdled. Widely applied:It is widely used for the loose cement transportation from cement warehouse to mixer or from cement warehouse to compounding machine in concrete mixing plant
Technical Parameter

			Model

			LSY 100

			LSY 120

			LSY 140

			LSY 160

			LSY 200

			LSY 250

			LSY 300

			LSY 400

			Diameter of screw (mm)

			90

			115

			135

			163

			185

			237

			285

			362

			Speed of main axis (r/min)

			300

			300

			300

			308

			260

			200

			170

			170

			Diameter of main case(mm)

			108

			133

			159

			194

			219

			273

			325

			402

			Max capacity (t/h)

			7

			10

			15

			25

			40

			60

			90

			120

			Max conveying length (m)

			8

			10

			12

			15

			18

			25

			25

			25

			Working angle (degree)

			0~60

			0~60

			0~60

			0~60

			0~60

			0~60

			0~60

			0~60

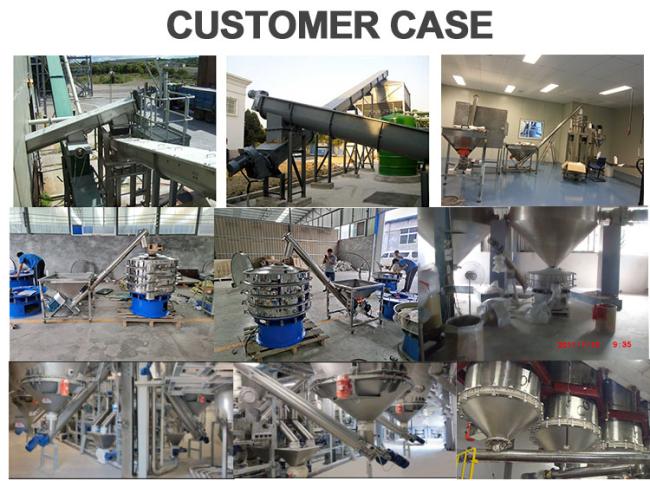

Customer Case
Company Profile

Packing & Delivery
Our service
we are manufacturer of crusher, sieving and conveying machine.

Most of our products are customized as customers' request, pls advice your material, capacity, bulk density.

we'd like to offer you best suitable machine.

Dia 100mm-315mm Industrial Screw Conveyors Vibrating Feeder Conveyor

Container Linear Vibrating Screen Machine 0-200 Mesh Linear Vibrating Sieve

600mm-1800mm Rotary Vibrating Screen Powder Granule Vibrating Filter Sieve

Customized Silica Sand Classifier Machine Sifting Rectangular Linear Vibrating Sieve Screen

Slurry Vibrating Screen Filter Soya Milk Vibrating Filter Sieve

125W Electric Sieve Shaker 8in 0-1200 Mesh Laboratory Sieving

Clay Tumbler Screening Machine Round Vibrating Sieve For Food Processing

Bread Crumbs 200 Mesh Vibration Sieve Machine 600mm Industrial Sieve Shaker Machine

Customizable Carbon Steel Ultrasonic Vibrating Screen 500 Mesh

Stone Linear Vibrating Screen Sand Vibrating Sieve Machine Customized

450 Circular Vibratory Sifter Liquid Fruit Juice Vibrating Filter Customized

8 Inches Laboratory Sieve Shaker Machine Vibration Motorised Sieve Shaker

Get in Touch

Have questions about our products or want to discuss a custom order? Our team is ready to help you.

Company Xinxiang Dayong Vibration Equipment Co., Ltd.

Location Room 1601, Xinghai Center, Renmin East Road, Hongqi district, Xinxiang City, Henan

Contact Person Amanda

Request A Quote

Email Address *

Please check your email address.

Phone / WhatsApp

Your Message *

Your message must be at least 20 characters.

Model	LSY 100	LSY 120	LSY 140	LSY 160	LSY 200	LSY 250	LSY 300	LSY 400
Diameter of screw (mm)	90	115	135	163	185	237	285	362
Speed of main axis (r/min)	300	300	300	308	260	200	170	170
Diameter of main case(mm)	108	133	159	194	219	273	325	402
Max capacity (t/h)	7	10	15	25	40	60	90	120
Max conveying length (m)	8	10	12	15	18	25	25	25
Working angle (degree)	0~60	0~60	0~60	0~60	0~60	0~60	0~60	0~60
