Materials Grading Lab Test Sieve Analysis Equipment Small Sieve Shaker

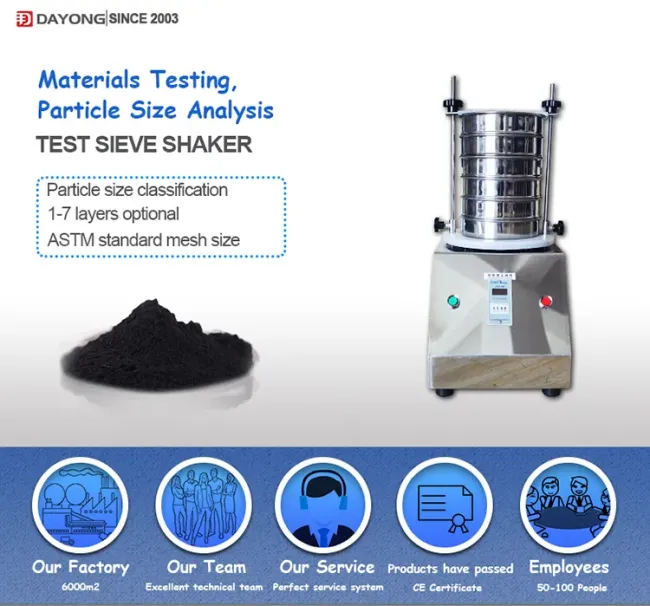

Test Sieve Analysis Equipment for Materials Grading
All laboratory analysis equipment work with an vibration motor drive. This drive produces a 3D throwing motion that moves the material to be sieved equally over the whole sieving surface. Multi-layer standard lab analysis test sieve with timer is a new and precision equipment for continuously selecting / sifting / testing the powder. It uses the new type vibrating motor as the source of vibration. It is usually equipped with Φ100mm, Φ200mm,Φ300mm standard sieve.We can also produce the test sieve according to the customer's requirements.

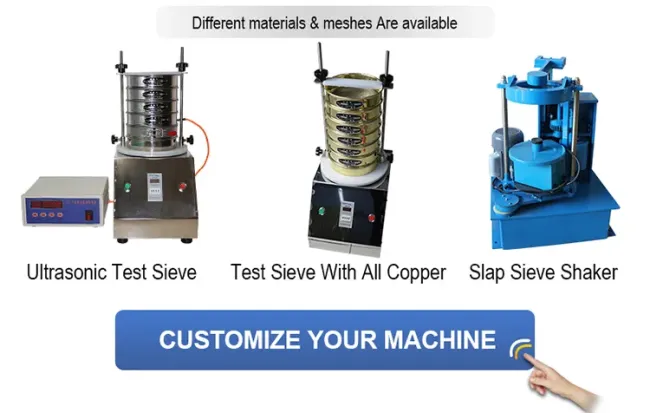

There are usually three types:Ultrasonic test sieve,Test sieve with all copper,Slap sieve shaker
Ultrasonic test sieve is suitable for materials that are difficult to screen and have small meshes.
Test sieve with all copper is suitable for general materials.
Slap sieve shaker is suitable for materials that are easy to block.
If you don't know what kind of equipment your material needs, please let us know your material, and we will choose the most suitable machine model for you and quote a preferential price.
1) Low noise,light weight
2) The platform operation without fixed.
3) Multi-layer screen can be installed, up to 8 layers.
4) We offer customized lab test sieve shaker.if you have special request, contact customer service.
| Items | Name | Unit | Data |
| 1 | Layers | Layer | 1-8 |
| 2 | Diameter | mm | Φ200 Φ300 Φ400 |
| 3 | Sieves Diameter | mm | Φ75 Φ100 Φ200 Φ300 Φ400 |
| 4 | Granularity | mm | 0.038-3 |
| 5 | Noise | db | <50 |
| 6 | Feeding Capacity(once) | g | <200g/ml |
| 7 | Amplitude | mm | <5 |
| 8 | Voltage | v | 110/220/230 |
| 9 | Speed | r/min | 1420 |
| 10 | Powder | kw | 0.125 |
| 11 | Overall Dimension | mm | 450*415*800 |
| 12 | Weight | kg | 45 |
Widely used in food, medicine, chemicals, abrasives, pigments, mining, metallurgy, geology, ceramics, defense and other industries research institutes, laboratories, laboratory, production control, testing and analysis.
Packaging Details:We offer free, Professiona,fumigation-free,and standards wooden case according to product size,and 1 set/case.If you have special equipment please just inform us.
Delivery Time:7-10 working days after payment.
Company Information
Xinxiang Dayong Vibratory Equipment Co., Ltd. is covering an area of 6000 square meter and having more than 20 employees, the company has passed through CE quality management system certification, formed the perfect operation and management system in design and development, product manufacturing, market promotion, equipment installation and after sales service.
Pls confirm and provide below information to us before making an exact solution and price for you for Automatic analysis lab test sieve shaker.
A: 1. Your material's name, bulk density, and water content.
2. How many layers are you need? And what's the screen mesh size for each layer?
3. Voltage and frequency.
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
