Pneumatic Vacuum Conveying Equipment Vertical Lift Conveyor For Grain
Price:
US $900 / set
MOQ:
1
Delivery Time:
7-15 work days
Brand:
DY
Product Description
Pneumatic Feeder Vacuum Vertical Lift Conveyor for Grain
Product Discraption
The ZKS vacuum feeder uses a vacuum pump to suction the air, so that the inlet of the suction nozzle and the whole system are in a certain vacuum state. The powder particles are sucked into the nozzle along with the outside air to form a gas stream, which passes through the suction pipe and reaches the hopper in the hopper. Gas and material separation. The separated material enters the receiving equipment. The feeding and discharging are completed by continuously opening and closing the pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.

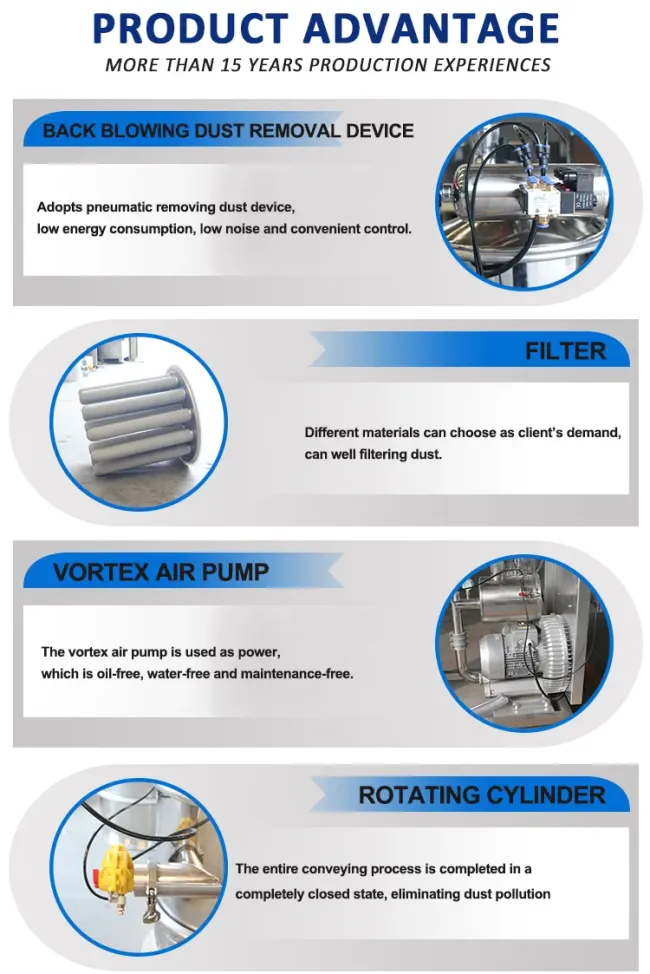

The vacuum feeder is equipped with a compressed air back flushing device. Each time the material is discharged, the compressed air pulse back flushing the filter, and the powder adsorbed on the surface of the filter is dropped to ensure the normal operation of the suction. For the vacuum feeder with material level control, the material in the hopper of the receiving equipment is automatically fed through the material level controller. When the hopper of the receiving equipment is higher than a certain position, the vacuum loading machine stops feeding; when the material level is lower than a certain position, the vacuum loading machine automatically starts to complete the feeding of the receiving equipment.
Product Parameters
Why Choose Us
Packing
Application
Our CompanyXinxiang Dayong Vibration Equipment Co., Ltd., is a technological enterprise created by a professional team. Dayong makes every effort to produce multi functional machines with modern design, and high practicability and reliability, there is great innovation in our products, therefore Dayong wins a wide favors from customers. Dayong offers the widest range of sieving and filtration equipment, mainly produces slurry vibrating sieve, drum vibrating sieve, flat vibrating sieve, high-frequency glaze vibrating sieve, dry-powder vibrating sieve, etc., with our extraordinary confidence, stable high quality and client-ease service.
FAQThe proper selection of the industrial vaccum conveyor system depends on the material, conveying distance, output required, charaterristics of the material etc:
1. Conveying product : _____
2. Viscosity:_____%
3. Capacity:________kg/ hour
4. Conveying length:_______
5. Conveying heigh:______
6. Voltage:______V, Frequency:______HZ, ______ phase
