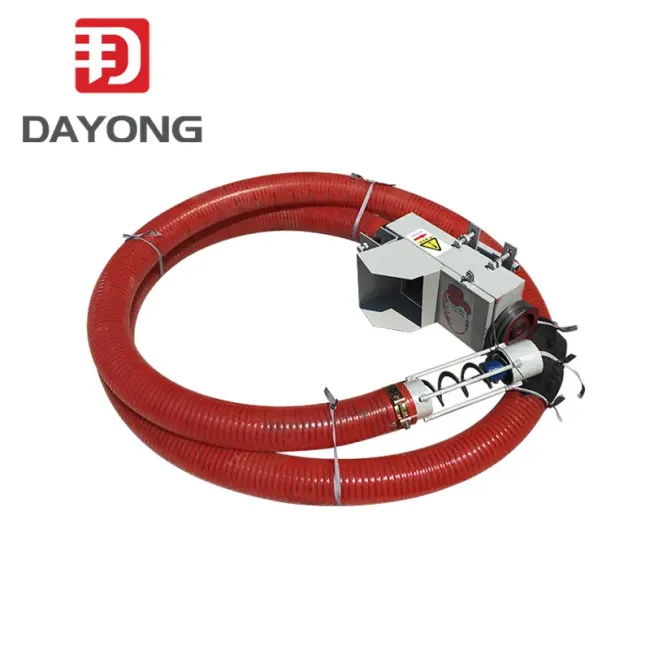

Screw conveyor is devided in two types of horizontal conveyor and vertical conveyor, its mainly used for all kinds of powder, particles, small block and loose material transport and vertical lifting.
Screw conveyor is suitable for Powder, granule, patch and scattered material such as cement, dust coal, food, fertilizer, inder, sand, The temperature must be less than 200 °C. Not suitable for the material of easily deteriorated, viscosity and easily lump.

Machine Feature

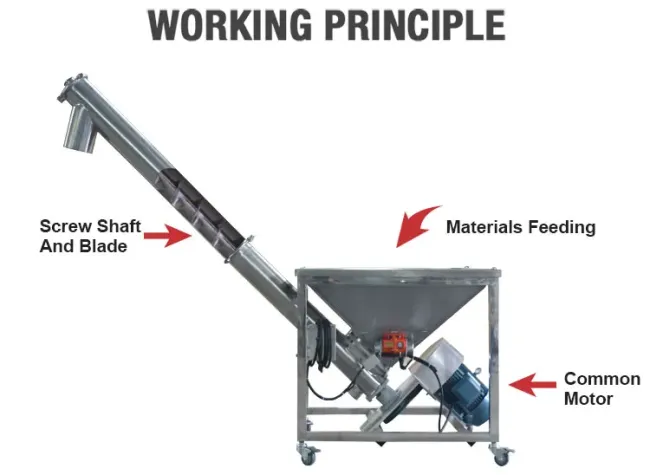

1. Using double electric motors : feeding motor & vibrating motor, separately controlled.
2. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassemble for washing.

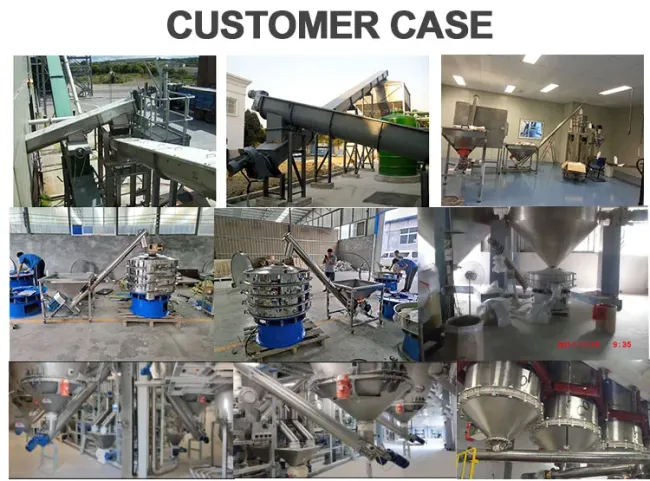

Customer Case

Advantages:

1.Deal for conveying dry to semi-fluid bulk materials - free flowing to sluggish
2.Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical
3.Efficiently distributes bulk materials to various locations using multiple inlet and discharge points
4.Totally enclosed for dusty, corrosive or hazardous environments

Product Parameters



Model	Diameter (mm)	The distance of blades(mm)	Speed (rpm)	Capacity (t/m³)	Speed (rpm)	Capacity (t/m³)	Speed (rpm)	Capacity (t/m³)	Speed (rpm)	Capacity (t/m³)
	D	S	n	φ=0.33	n	φ=0.33	n	φ=0.33	n	φ=0.33
LS100	100	100	140	2.2	112	1.7	90	1.4	71	1.1
LS125	125	125	125	3.8	100	3.0	80	2.4	63	1.9
LS160	160	160	112	7.1	90	5.7	71	4.5	56	3.6
LS200	200	200	100	12.4	80	9.9	63	7.8	50	6.2
LS250	250	250	90	21.8	71	17.2	56	13.6	45	10.9
LS315	315	315	80	38.8	63	30.5	50	24.2	40	13.4

Machine Usage

--This machine is suitable for transfer many kinds of powder such as:
--Milk powder, flour, rice powder, protein powder, Seasoning powder, chemical powder, medicine powder, coffee powder, soy flour Etc.

we are manufacturer of crusher, sieving and conveying machine.
Most of our products are customized as customers' request, pls advice your material, capacity, bulk density.
we'd like to offer you best suitable machine.
