Flexible Ash Screw Conveyor Carbon Steel Inclined Screw Conveyor With Hopper
Price:
US $1800-2,000 / Pie
MOQ:
1
Delivery Time:
7-15 work days
Brand:
DY
Product Description

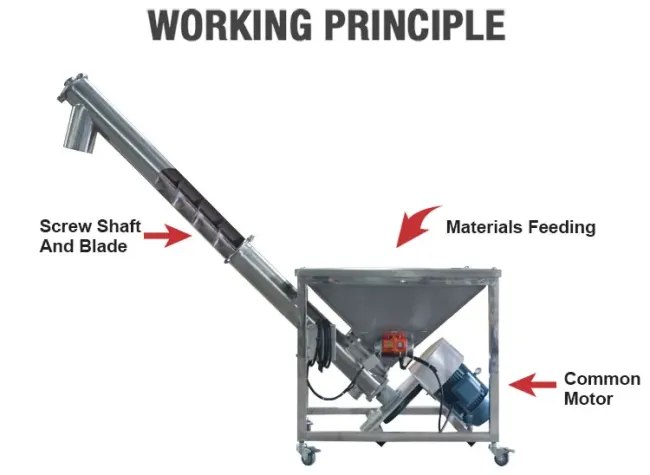

Screw conveyors are divided into two categories: horizontal and vertical. They are mainly used for conveying and vertically lifting various powders, granules, small blocks and loose materials.
Screw conveyors are suitable for powdery, granular, small block and loose materials including cement, coal dust, food, fertilizer, ore and sand, with a material temperature of less than 200 °C. They are not suitable for easily deteriorating, viscous or easily caking materials.
Machine Feature
1. Using double electric motors : feeding motor & vibrating motor, separately controlled.
2. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassemble for washing.
![Ash Flexible Carbon Steel Inclined Hopper Screw Feeder Conveyor]()
2. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassemble for washing.
Advantages:
1.Deal for conveying dry to semi-fluid bulk materials - free flowing to sluggish
2.Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical
3.Efficiently distributes bulk materials to various locations using multiple inlet and discharge points
4.Totally enclosed for dusty, corrosive or hazardous environments
| Model | Diameter (mm) |
The distance of blades(mm) | Speed (rpm) |
Capacity (t/m³) |
Speed (rpm) |
Capacity (t/m³) |
Speed (rpm) |
Capacity (t/m³) |
Speed (rpm) |
Capacity (t/m³) |
| D | S | n | φ=0.33 | n | φ=0.33 | n | φ=0.33 | n | φ=0.33 | |
| LS100 | 100 | 100 | 140 | 2.2 | 112 | 1.7 | 90 | 1.4 | 71 | 1.1 |
| LS125 | 125 | 125 | 125 | 3.8 | 100 | 3.0 | 80 | 2.4 | 63 | 1.9 |
| LS160 | 160 | 160 | 112 | 7.1 | 90 | 5.7 | 71 | 4.5 | 56 | 3.6 |
| LS200 | 200 | 200 | 100 | 12.4 | 80 | 9.9 | 63 | 7.8 | 50 | 6.2 |
| LS250 | 250 | 250 | 90 | 21.8 | 71 | 17.2 | 56 | 13.6 | 45 | 10.9 |
| LS315 | 315 | 315 | 80 | 38.8 | 63 | 30.5 | 50 | 24.2 | 40 | 13.4 |
Machine Usage
--This machine is suitable for transfer many kinds of powder such as:
--Milk powder, flour, rice powder, protein powder, Seasoning powder, chemical powder, medicine powder, coffee powder, soy flour Etc.
![Ash Flexible Carbon Steel Inclined Hopper Screw Feeder Conveyor]()
--Milk powder, flour, rice powder, protein powder, Seasoning powder, chemical powder, medicine powder, coffee powder, soy flour Etc.
we are manufacturer of crusher, sieving and conveying machine.
Most of our products are customized as customers' request, pls advice your material, capacity, bulk density.
we'd like to offer you best suitable machine.
