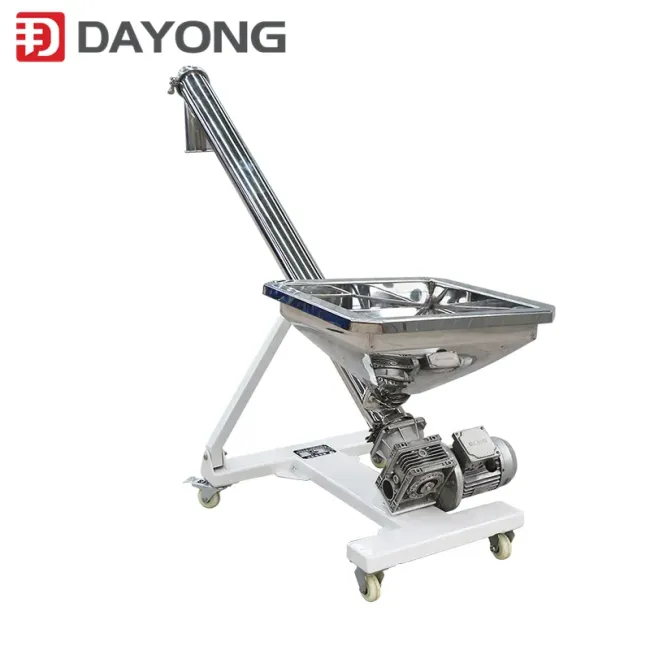

Energy Saving Auger Screw Conveyor Stainless Tubular Screw Conveyor
Easy Movement Low Cost Auger Screw Conveyor with Tube Shape

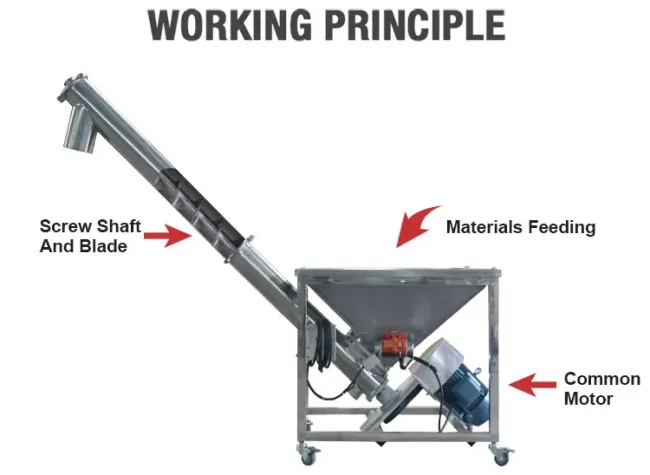

Screw conveyor is devided in two types of horizontal conveyor and vertical conveyor, its mainly used for all kinds of powder, particles, small block and loose material transport and vertical lifting.
Screw conveyor is suitable for Powder, granule, patch and scattered material such as cement, dust coal, food, fertilizer, inder, sand, The temperature must be less than 200 °C. Not suitable for the material of easily deteriorated, viscosity and easily lump.
Machine Feature
2. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products.
3. Product funnel can separate from the tube for easy assembly.
4. Special anti-dust design to protect bearing from dust.
5. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassemble for washing.
Advantages:
1.Deal for conveying dry to semi-fluid bulk materials - free flowing to sluggish
2.Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical
3.Efficiently distributes bulk materials to various locations using multiple inlet and discharge points
4.Totally enclosed for dusty, corrosive or hazardous environments
Primary considerations for the selection of a screw conveyor are:
1. Type and condition of the bulk material to be conveyed including maximum particle size and specific bulk density
2. Capacity or feed rate of bulk material to be conveyed expressed in pounds per hour, tons per hour, or cubic feet per hour
3. Required distance and incline the bulk material is to be conveyed
4. Design conditions such as materials of construction, inlet feed conditions and operating temperature
| Model | Diameter (mm) |
The distance of blades(mm) | Speed (rpm) |
Capacity (t/m³) |
Speed (rpm) |
Capacity (t/m³) |
Speed (rpm) |
Capacity (t/m³) |
Speed (rpm) |
Capacity (t/m³) |
| D | S | n | φ=0.33 | n | φ=0.33 | n | φ=0.33 | n | φ=0.33 | |
| LS100 | 100 | 100 | 140 | 2.2 | 112 | 1.7 | 90 | 1.4 | 71 | 1.1 |
| LS125 | 125 | 125 | 125 | 3.8 | 100 | 3.0 | 80 | 2.4 | 63 | 1.9 |
| LS160 | 160 | 160 | 112 | 7.1 | 90 | 5.7 | 71 | 4.5 | 56 | 3.6 |
| LS200 | 200 | 200 | 100 | 12.4 | 80 | 9.9 | 63 | 7.8 | 50 | 6.2 |
| LS250 | 250 | 250 | 90 | 21.8 | 71 | 17.2 | 56 | 13.6 | 45 | 10.9 |
| LS315 | 315 | 315 | 80 | 38.8 | 63 | 30.5 | 50 | 24.2 | 40 | 13.4 |
Machine Usage
--Milk powder, flour, rice powder, protein powder, Seasoning powder, chemical powder, medicine powder, coffee powder, soy flour Etc.
we are manufacturer of crusher, sieving and conveying machine.
Most of our products are customized as customers' request, pls advice your material, capacity, bulk density.
we'd like to offer you best suitable machine.
