96.46kWh All In One Commercial Battery Storage Systems IP55 Protection Liquid Cooling
96kWh integrated solar + storage + diesel + charging solution providing a comprehensive multi-energy hybrid system for diverse applications.
- Residential Energy Storage: Store solar energy for home use, reducing electricity bills and providing backup power during outages.
- Commercial Buildings: Support shopping malls, office buildings, and hospitals by ensuring uninterrupted power supply and lowering energy costs.
- Public Facilities: Provide reliable power for schools, government buildings, and remote areas, ensuring continuous operations.
- Industrial Applications: Integrate with solar panels and diesel generators to store excess energy, reducing grid dependency and ensuring critical equipment remains operational.
- Electric Vehicle (EV) Charging: Directly charge electric vehicles using stored energy, enhancing energy efficiency and supporting sustainable transportation.
Standard: PCS, DCDC | Optional: MPPT, STS, ATS, Charging Pile (22kw)
| Model | Star192 96.46kWh (Integrated PV, ESS, Diesel and EV Charging Capabilities) |
| Rated Energy | 96.46kWh |
| Voltage Range | 240~350.4V |
| Rated Power | 125kW |
| Rated Output Frequency | 50Hz |
| IP Protection Grade | IP55 |
| Corrosion-proof Grade | C4H |
| Cooling Type | Liquid Cooling |
| Noise | <75dB (1m Away from System) |
| Dimension | W1600*D1435*H2200mm |
| Communication Interface | Ethernet |
| Communication Protocol | Modbus TCP/IP |
*Standard: PCS, DCDC. Optional: MPPT, STS, ATS, Charging Pile
The system consists of a battery system (2 to 4 packs), a power conversion system (PCS), a photovoltaic converter (MPPT), a voltage converter (DCDC), a parallel grid and off-grid switch (STS), a multi-power transfer switch (ATS), an AC charging pile, a liquid cooling unit, a fire suppression system, an EMS (Energy Management System), and a power distribution unit (PDU), among other components. The system features external communication capabilities and is designed for safe and stable operation over extended periods.

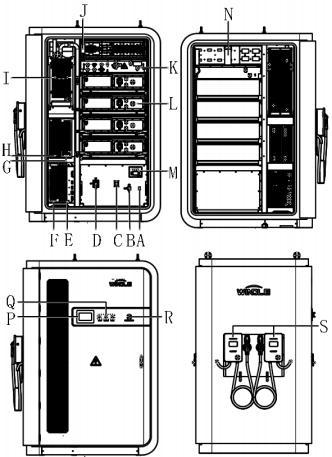

| No. | Identifier | Component Name |
|---|---|---|
| 1 | A | Load Breaker 01 (optional) |
| 2 | B | Load Breaker 02 |
| 3 | C | Main Breaker 01 |
| 4 | D | Main Breaker 02 (optional) |
| 5 | E | STS (optional) |
| 6 | F | Photovoltaic Converter MPPT (optional) |
| 7 | G | Voltage Converter DCDC |
| 8 | H | PCS |
| 9 | I | Liquid Cooling Unit |
| 10 | J | EMS |
| 11 | K | PDU |
| 12 | L | Battery System (optional 2 to 4 packs) |
| 13 | M | Multi-Power Transfer Switch ATS (optional) |
| 14 | N | Fire Suppression System |
| 15 | P | Display Screen |
| 16 | Q | Indicator Light |
| 17 | R | Emergency Stop Button |
| 18 | S | AC Charging Pile (optional) |
- UN38.3
- IEC 62619
- IEC/EN 62619
- IEC 60730-1
- IEC 63056
- IEC/EN 61000
- IEC 60529
- IEC 62040 or 62477
- RF/EMC
- UKCA (IEC 62477-1)
- UKCA (CE-EMC Transfer)
- UL1973
- UL9540
- UL9540A
Within our manufacturing facility, we specialize in researching and producing battery energy storage systems, offering OEM and ODM services alongside our standard product line.
- Origin Manufacturers: We are your direct source for top-tier products.
- Customized Solutions: Tailored to meet your unique specifications.
- Business-Centric Focus: Addressing customer pain points, including unstable grid quality, economic viability, safety, and stability.
