Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified

Price Negotiable

Price: $35000-45000

MOQ: 1

Delivery Time: 35 Working days

Brand: Matsumoto

Product Description

TCK80Y CE Certified Slant Bed CNC Lathe Automatic Precision Metal Turning Center

Features:

1. 30 degrees slant bed CNC lathe,higher accuracy Taiwan linear.
2. Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back.
3. Screw pre-stretching structure.
4. 12 station servo tools tower.

SPECIFICATIONS	Units	TCK80Y
Swing over bed	mm	800
Max. workpiece length	mm	1000/1500/2000/3000
Max. cutting diameter	mm	600
Spindle bore	mm	80
Spindle nose type	-	A2-11(A2-8)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	2000(3000)
Chuck	-	12'' Hollow hydraulic chuck
X axis travel	mm	350
Y axis travel	mm	±50
Z axis travel	mm	900/1400/1900/2900
X axis rapid traverse	mm/min	12
Y axis rapid traverse	mm/min	12
Z axis rapid traverse	mm/min	16
Main motor power	kw	18.5(Opt.37)
Turret type		12 Position Live turret
Turret Model		BMT65-ER32
Tailstock quill taper	-	MT6
Tailstock base travel	mm	900/1400/1900/2900
Machine weight	kg	7000/8000/9000/11000

Application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face,such as processing,and also can process the single and multiple threads in metric ,inch and other standards.

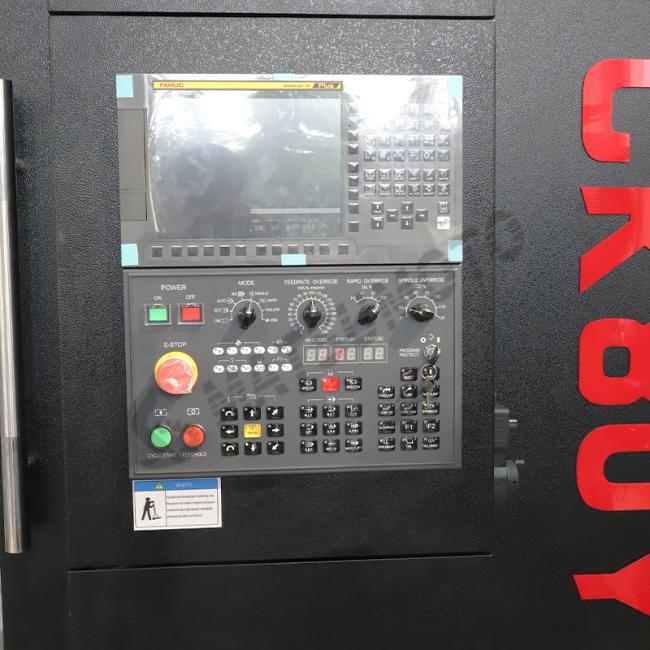

	CNC CONTROL SYSTEM Standard:GSK Optional:FANUC/MISUBISHI etc.

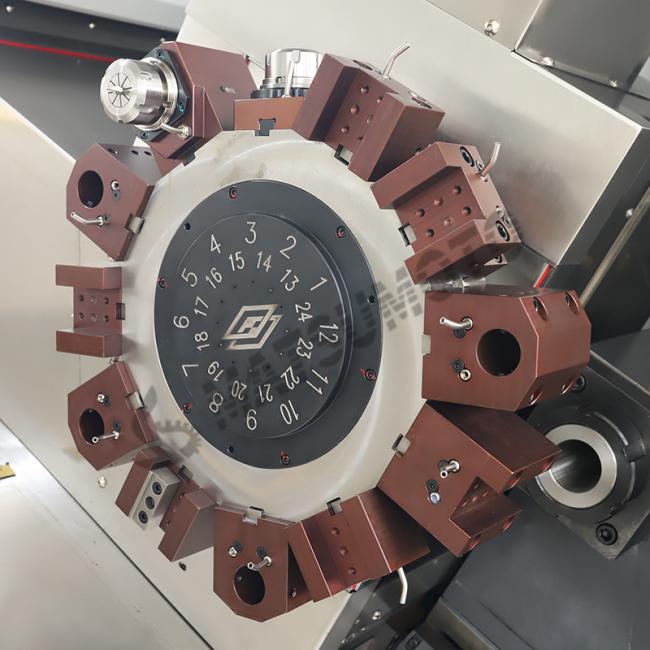

	POWER TURRET High positioning accuracy, stable and reliable, simple structure, convenient maintenance.

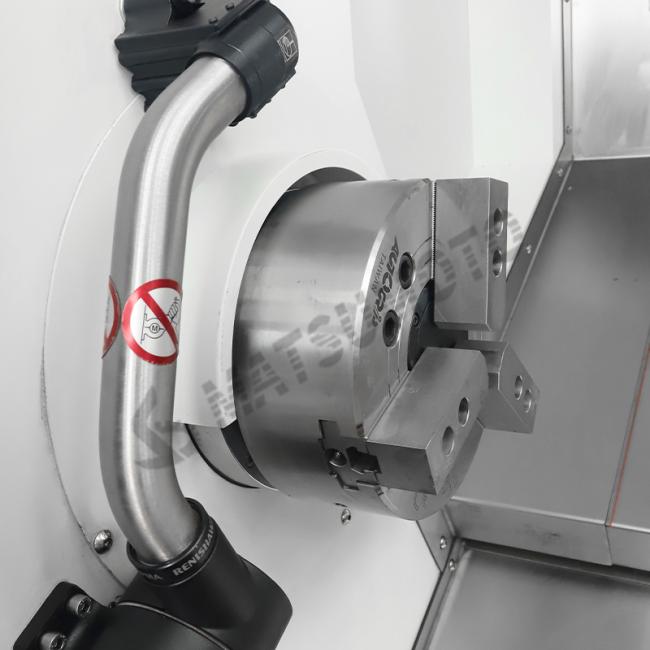

	THREE-JAW CHUCK Strong clamping during work,Long service life.

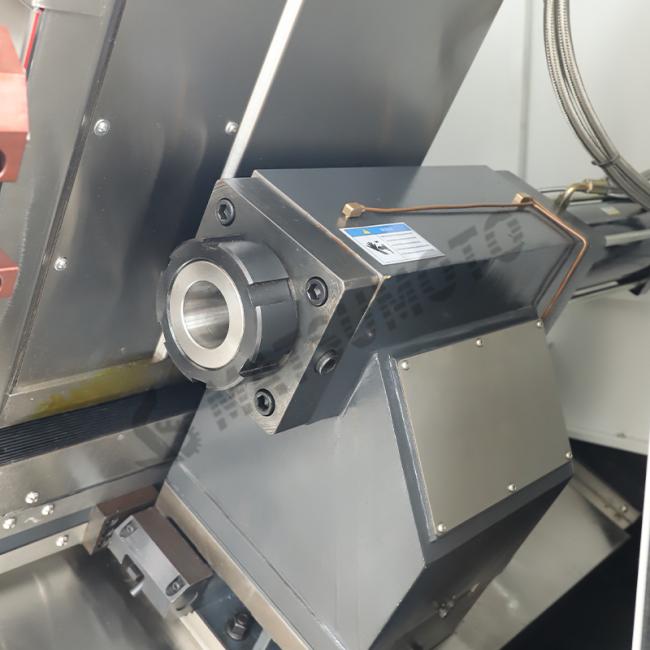

	TAILSTOCK The tailstock is divided into fast locking, which is convenient and quick to use.
