VMC1160 CNC Vertical Machining Center Heavy Duty 1200X600mm Table Size

Price Negotiable

Price: $25000-28000

MOQ: 1

Delivery Time: 25 working days

Brand: Matsumoto

Product Description

VMC1160 Factory Sale Heavy Duty CNC Vertical Machining Center

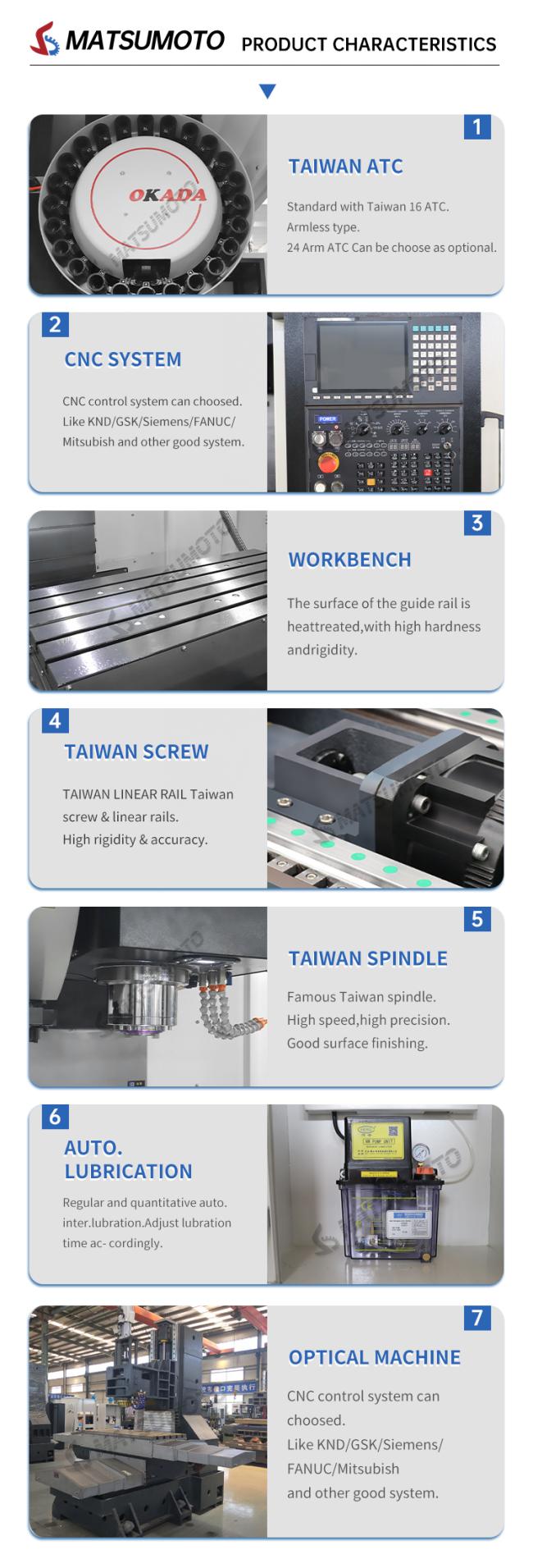

Features:
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
5. Japanese NSk Bearing Germany R+W Coupling
6. Automatic Lubrication System
7. Chip Conveyor At Optional (According To Customer Requirements)

Specifications	Units	VMC1160
Table size	mm	1200*600
Max.table load	kg	800
T slot	/	5-18*100
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Distance between spindle center and column surface	mm	600
Distance between spindle nose and table surface	mm	120-720
Max. spindle speed	r/min	8000(10000 optional)
Spindle taper	-	BT40
Spindle drive type	-	Belt drive
spindle motor power	kw	11
X/Y/Z axis rapid traverse	m/min	36/36/24
X/Y/Z guide rail form	/	3 axis linear guide rail
Automatic tools changer	-	24 arm ATC
Max.tool weight	kg	7
Tools Diameter/Length	mm	78/300
Tool change time	s	7/2.5
Position accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Machine dimension	mm	340024802960
Machine weight	kg	7300

Optional Configuration:
System: Synte,Fanuc,GSK, Mitsubishi
24 Arm Tool Magazine
4th Axis, 5-axis
Spindle Oil Cooling
Chip Conveyor Oil-Water Separator
Air conditioner

Direct-connected electric spindle 12000RPM
