M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head
M5W Vertical and Horizontal Turret Milling Machine Universal Turret Milling Machine
Description:
|
PROJECT |
UNIT |
M5W |
|
Table size |
mm |
1370*305 |
|
X-axis travel |
mm |
900 |
|
Y-axis travel |
mm |
400 |
|
Z-axis travel |
mm |
450 |
|
Spindle taper |
/ |
R8(vertical)/ISO40(horizontal) |
|
Spindle stroke |
mm |
127 |
|
Spindle speed |
/ |
16(vertical)/12(horizontal) |
|
Spindle feed |
mm |
0.76/0.003 |
|
Range of rotation |
r/min |
60-4540/5440(50HZ) |
|
Slot(number*width) |
mm |
3*16 |
|
T-slot spacing |
mm |
76 |
|
Main motor power |
kw |
3HP/5HP(vertical)3kw(horizontal) |
|
Lifting power |
kw |
1.1 |
|
Weight |
kg |
1560 |
|
Dimension(L*W*H) |
mm |
1800*1780*2150 |
-
Details Images:
|
|

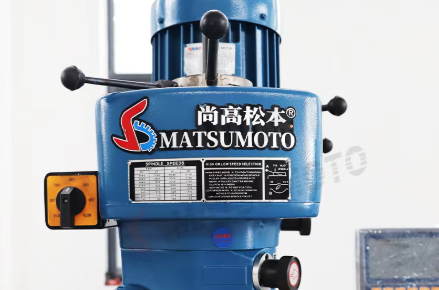

MILLING HEAD
High speed spindle Head rotate 90°(L*R) Head rotate 45°(F*B) |
|
|

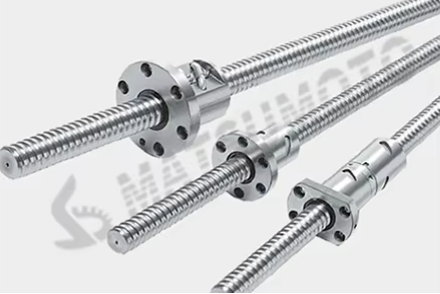

TAIWAN SCREW
The precision of the screw rod is strong, which improves the wear resistance and over all rigidity. |
|
|

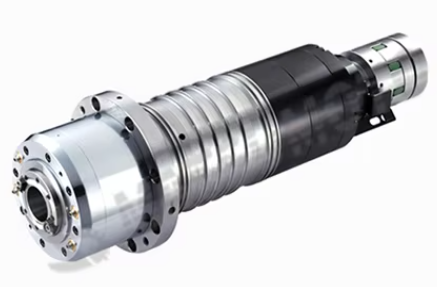

SPINDLE
Flanged spindle, powerful sleeve spindle, high precision and stability. |
|
|

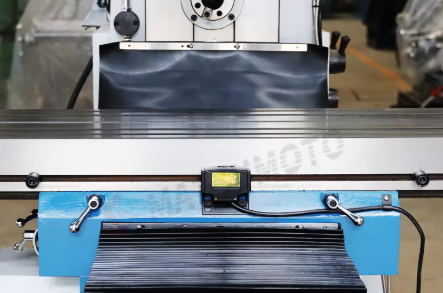

WORKTABLE
Grind the guide rail surface to improve the accuracy and service life of the machine tool. |
|
|

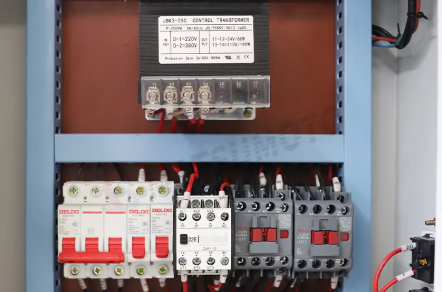

NEAT CIRCUIT
The electric box is neat and clean, and the maintenance links are clear at a glance. |
|
|

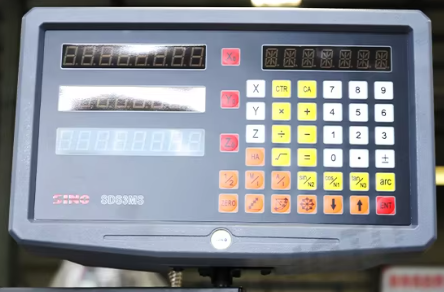

3 AXIS DRO(OPTIONAL)
3 axis digital readout is optional, need extra cost. |
|
|

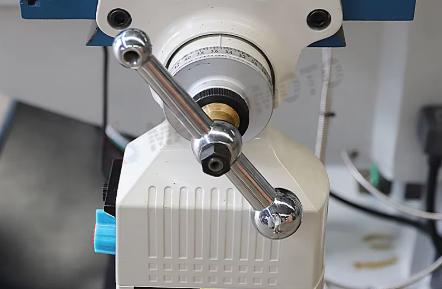

X/Y/Z AUTO FEED
X/Y axis auto feed, Z axis electric lifting, improve processing time. Tool feeder(optional). |
-
Application:
The milling machine is a kind of universal light duty metal cutting machine. Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline,etc.Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
