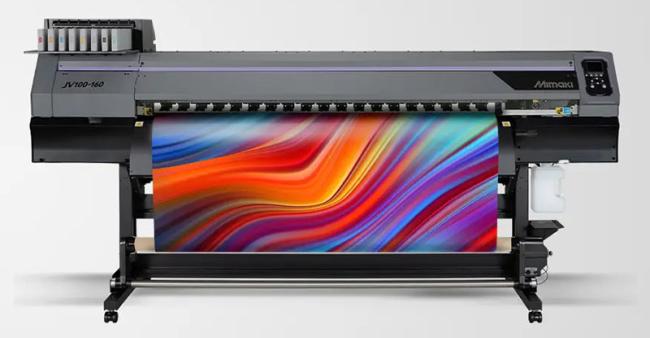

CE VCCI FCC Roll To Roll Inkjet Printer Mimaki JV100-160 Eco Solvent Inkjet Printer
CE VCCI FCC Roll To Roll Inkjet Printer Mimaki JV100-160 Eco Solvent Inkjet Printer
Description
The JV100-160 is an affordable, professional-grade, environmentally friendly solvent-based roll printer, perfectly suited for high-quality artwork reproduction, vehicle wrap printing, and many other applications. Equipped with two newly developed printheads, the JV100-160 prioritizes high quality, high efficiency, and stable operation as an environmentally friendly solvent-based inkjet printer.
In addition to the NCU (Nozzle Detection Unit), NRS (Nozzle Recovery System), and MAPS4 (Mimaki Advanced Printing System) that enable stable, high-quality printing, the new "100 Series" printers also feature a DAS (Dot Adjustment System). Previously manual and time-consuming dot and paper feed adjustments can now be automated, significantly reducing operator workload.
Printing Speed
JV100-160 Printer
| Printing Mode | Resolution | Pass | Printing Speed (²/h) |
|---|---|---|---|
| Draft | 720x600dpi | 4 | 27.4 |
| High speed | 720x600dpi | 6 | 20.0 |
| Standard | 720x900dpi | 8 | 15.5 |
| Quality | 600x1200dpi | 12 | 11.3 |
| High Quality | 1200x1200dpi | 12 | 8.8 |
Product Overview
Rich Features for Mimaki Quality
- Automatic Dot/Paper Feed Correction (DAS)
- Mimaki Technology for Stable, High-Quality Printing
High-Quality Features for High Productivity
- 6-Pass Printing Speed: 20.0 m²/h (PVC), 4-Pass Printing Speed: 27.4 m²/h (Tannel)
Stable Print Quality with Environmentally Friendly Solvent-Based Inks with Excellent Drying Performance
- New AS5 and CS250 Inks with Excellent Drying Performance
Standard Includes Newly Upgraded Original RIP Software [RasterLink7]
- Faster RIP Processing Speed for Increased Productivity
Specifications
| JV100-160 | |||
|---|---|---|---|
| Cartridge type | Bottle type | ||
| Print head | On-demand piezo head (2 staggered layout) | ||
| Print resolution | 360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi | ||
| Ink | Type/ Color | Eco-solvent ink ・AS5 (C,M,Y,K,Lc,Lm,Lk, and Or) ・SS21 (C,M,Y,K,Lc,Lm,Lk, and Or) ・BS4 (C,M,Y, and K) *Only available in specific countries |
Eco-solvent ink ・CS250 (C,M,Y, and K) *Only available in specific countries |
| Capacity | 600ml Ink pack *1 / 2L Ink pack *2 | 1L bottle | |
| Maximum print width | 1,610 mm (63.4 in) | ||
| Media | Maximum width | 1,620 mm (63.8 in) | |
| Thickness | 1 mm or lower | ||
| Roll diameter | φ250 mm or less | ||
| Roll weight | 45 kg or less | ||
| Roll inside diameter | 2 inch / 3 inch | ||
| Certifications | VCCI class A, FCC class A, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC |
||
| Interface | USB2.0 / Ethernet 1000BASE-T | ||
| Power supply | Single-phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2 | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) |
||
| Dimensions (W×D×H) | 2,775 x 700 x 1,392 mm (109.3 x 27.6 x 54.8 in) | 2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in) | |
| Weight | 166 kg (366 lb) | 168 kg (370.4 lb) | |
