95 96 99 Aluminum Oxde Ceramic Block Al2o3 Ceramic Tile Chemical Resistance

Price Negotiable

Price: Negotiated

MOQ: 10

Delivery Time: 15-30 work days

Brand: YH

Product Description

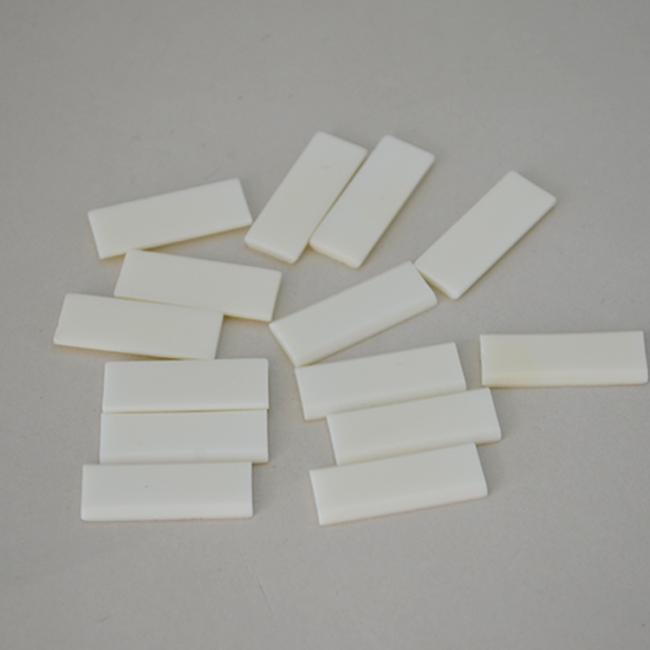

Alumina Ceramic Block Al2o3 Ceramic Tile Ceramic Thick Plate

High Purity 95 96 99 Aluminum Oxde

Alumina (Al₂O₃) Ceramic Plates: Custom Parts Delivered Fast for Urgent Needs

When your project demands high-performance components that meet precise specs,

our alumina (Al₂O₃) ceramic plates deliver. Made from high-purity aluminum oxide,

these parts offer unbeatable hardness, thermal stability, and electrical insulation—making them ideal

for industrial, electronic, and high-temperature applications where standard materials fall short.

We specialize in rapid custom manufacturing: with purity grades from 92% to 99.5% and

fully customizable geometries (including complex shapes and tight tolerances), we turn your drawings into

finished components quickly. No matter the size or complexity of your order, our streamlined production

process ensures fast turnaround times without compromising quality.


Application

Performance That Outperforms Alternatives


			Item

			Unit

			95 Al2O3

			96 Al2O3

			99 Al2O3

			Physical Characteristics

			Heat resistance

			0C

			1500

			1550

			1800

			Bulk density

			g/cm3

			3.6

			3.6

			3.9

			Water absorption

			%

			0

			0

			0

			Mechanical Characteristics

			Flexural strength

			Mpa

			320

			340

			360

			Hardness vickers

			Gpa

			12.2

			13.5

			15.6

			Elastic modulus

			Gpa

			280

			320

			370

			Poisson’s ratio

			0.22

			0.23

			0.23

			Thermal Characteristics

			Linear expansion coefficient

			(20-5000C) 10-6/0C

			7.1

			7.2

			8

			Thermal conductivity

			w/(m.k)

			16

			24

			32

			Specific Heat

			*10-3J/(kg*K)

			0.78

			0.78

			0.9

			Electrical Characteristics

			Dielectric constant (1MHZ)

			-

			9

			9.4

			9.9

Various Types of Aluminum Nitride Sheets

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Machining Ability of Alumina Ceramics:
Dimensional accuracy: Up to 0.02mm

Surface roughness: Ra0.02-3.2μm

Concentricity: Up to 0.02mm

Parallelism: Up to 0.01mmFlatness:Up to 0.01mm
Accuracy of Inner hole Drilling: Up to 0.01mm

Cylindricity: Up to 0.02mm

Thread machining: Minimum internal thread M2

Surface finish: As fired, glazed, grinding, polishing, metallization,coating


                                              Feature

			√ High Voltage Insulator

			√ High Purity, Max. 99.8%

			√ Various Available Grades

			√ Hard and Wear Resistant

			√ High Corrosion Resistance

			√ High Mechanical Strength

			√ Good Thermal Conductivity

			√ High Operating Temperature

			√ Most Favorable Fine Ceramic

Packing

			Hunan Yuanhong New Material Co.,Ltd was established in 2016 ,there are over 100 sets of ceramic professional equipments , several types of furnace in more than 8000 square meters production workshops. ISO9001 certified, a variety of advanced ceramic materials are ROHS and REACH certified.

Exhibition

			FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.

Aluminium Nitride Ceramic AIN Substrate Pad Insulator For Electronic Component

CNC Machining Alumina Ceramic Parts Sintered Wear Resistant Positioning Block

OEM Water Controlling Alumina Ceramic Disk High Accuracy Water Tap Used

Industrial Rectangular Corundum Crucible Alumina Boat Tray Sagger Precision Components

Heat Sink Ceramic Substrate High Alumina Plate 96% Insulation Ceramic Substrate

Glazed Alumina Ceramic Parts Industrial Al2O3 Ceramic Laser Reflector Oxidation Free

$China China 60-99% Alumina Zirconia Ceramic Plate Electric Heat Ceramic Products For Refractory for sale for sale$

60-99% Alumina Zirconia Ceramic Plate Electric Heat Ceramic Products For Refractory

99% High Purity Alumina Ceramic Sleeve Bushing Tube High Hardness Insulating

95% Big Alumina Ceramic Parts Al2o3 Disc High Wear Resisting Corrosion Resistant

Al2O3 Alumina Ceramic Substrate Sheet Disc Plate Customized High Temperature 95% 99%

Isostatic Pressure Al2O3 Alumina Ceramic Crucible For Melting Furnace Custom Capacity

99.5% Al2O3 Alumina Ceramic Bobbin Corundum Plate High Wearable Custom Made
