CNC Machined Alumina Liner Plate High Precision Durability Bolt Holes Custom Size

Price Negotiable

Price: Negotiated

MOQ: 10

Delivery Time: 15-30 work days

Brand: YH

Product Description

CNC Machined Alumina Liner Plate High Precision Durability Bolt Holes for Refractory Applications

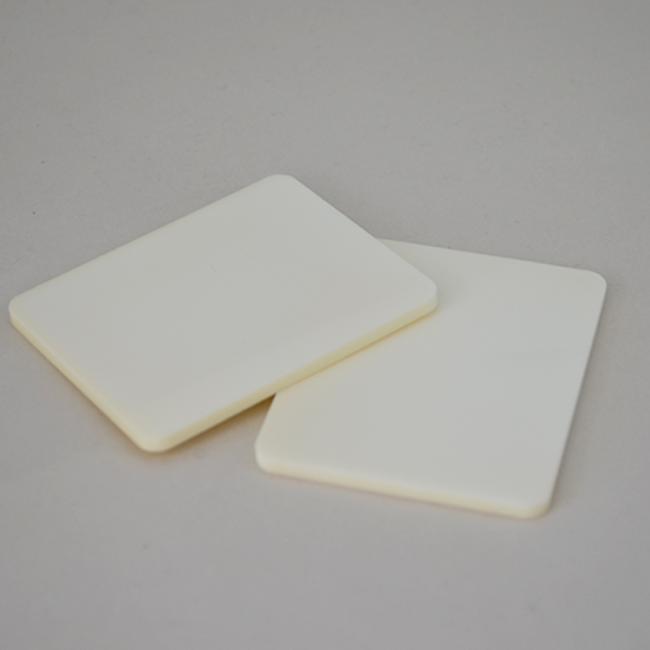

95% Alumina Ceramic Plate

Tired of metal or low-grade ceramic plates warping, cracking, or failing in high-temperature projects?

Upgrade to our 95% alumina ceramic plate—designed for durability in the hottest environments.

Why choose our alumina plate?

Handles 1600°C+ - perfect for kilns, forges, and high-heat workshops
95% high-purity alumina - stable performance, no thermal deformation
Pre-drilled hole - hassle-free mounting & installation
Corrosion resistant - works in harsh chemical & high-heat environments

Whether you’re a small workshop owner, hobbyist, or industrial buyer, this ceramic plate brings professional-grade heat resistance to your projects.

Customizable hole sizes, dimensions, and thicknesses to match your specific application requirements. Trusted by manufacturers for reliable high-temperature performance.

Application

Performance That Outperforms Alternatives


			Item

			Unit

			95 Al2O3

			96 Al2O3

			99 Al2O3

			Physical Characteristics

			Heat resistance

			0C

			1500

			1550

			1800

			Bulk density

			g/cm3

			3.6

			3.6

			3.9

			Water absorption

			%

			0

			0

			0

			Mechanical Characteristics

			Flexural strength

			Mpa

			320

			340

			360

			Hardness vickers

			Gpa

			12.2

			13.5

			15.6

			Elastic modulus

			Gpa

			280

			320

			370

			Poisson’s ratio

			0.22

			0.23

			0.23

			Thermal Characteristics

			Linear expansion coefficient

			(20-5000C) 10-6/0C

			7.1

			7.2

			8

			Thermal conductivity

			w/(m.k)

			16

			24

			32

			Specific Heat

			*10-3J/(kg*K)

			0.78

			0.78

			0.9

			Electrical Characteristics

			Dielectric constant (1MHZ)

			-

			9

			9.4

			9.9

Various Types of Aluminum Nitride Sheets

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Machining Ability of Alumina Ceramics:
Dimensional accuracy: Up to 0.02mm

Surface roughness: Ra0.02-3.2μm

Concentricity: Up to 0.02mm

Parallelism: Up to 0.01mmFlatness:Up to 0.01mm
Accuracy of Inner hole Drilling: Up to 0.01mm

Cylindricity: Up to 0.02mm

Thread machining: Minimum internal thread M2

Surface finish: As fired, glazed, grinding, polishing, metallization,coating


                                              Feature

			√ High Voltage Insulator

			√ High Purity, Max. 99.8%

			√ Various Available Grades

			√ Hard and Wear Resistant

			√ High Corrosion Resistance

			√ High Mechanical Strength

			√ Good Thermal Conductivity

			√ High Operating Temperature

			√ Most Favorable Fine Ceramic

Packing

			Hunan Yuanhong New Material Co.,Ltd was established in 2016 ,there are over 100 sets of ceramic professional equipments , several types of furnace in more than 8000 square meters production workshops. ISO9001 certified, a variety of advanced ceramic materials are ROHS and REACH certified.

CNC Workshop
Dry Pressing Workshop
Polishing Machine
Zirconium Oxide Furnace
Sintering Kiln
