High Density 40ft PUE Datacenters Networking DCIM Monitoring Systems 72kW

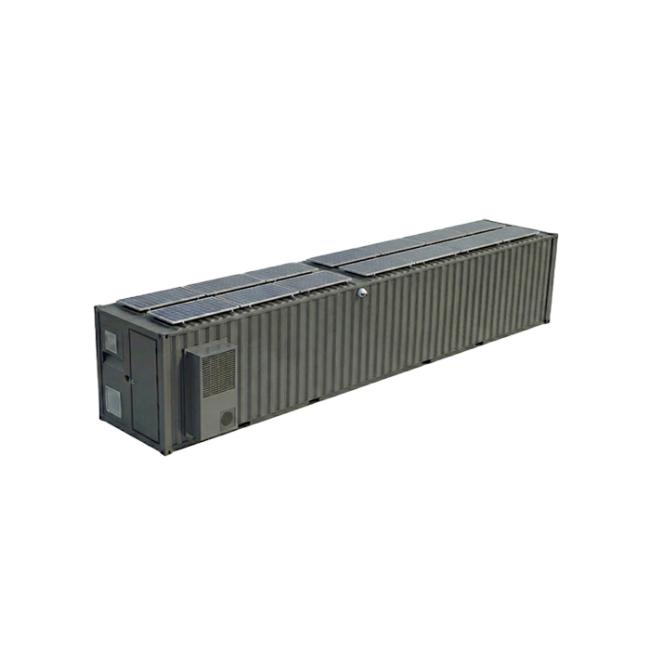

The SOETECK ICDC40 (40ft) Series serves as a robust alternative to traditional brick-and-mortar data centers. Available in standard (Type A) and high-density (Type B) configurations, this 40ft High Cube solution supports total IT loads of up to 72kW. It is the preferred choice for enterprises, government bodies, and hyperscalers needing rapid capacity expansion.

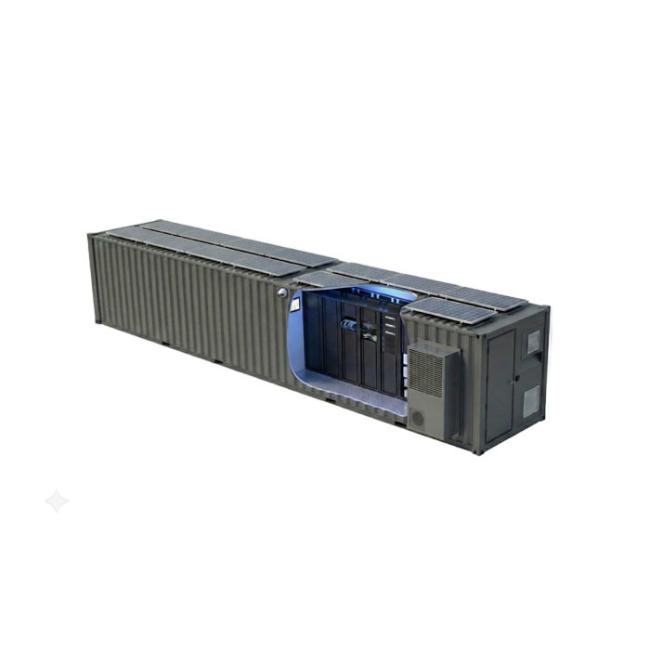

Designed for mission-critical operations, the ICDC40 features a fully redundant power architecture with N+1 Modular UPS systems (up to 120kVA) and extended battery backup. The spacious interior accommodates up to 12 racks with ample room for maintenance, while the integrated fire suppression and intelligent DCIM monitoring systems ensure asset safety and 24/7 operational visibility.
Product Family
| Model No. | Container Size | Total Capacity | Rack Qty | Single Rack Load | UPS Configuration | Cooling |
|---|---|---|---|---|---|---|
| ICDC20 › | 20' HQ (ISO) | 54 KW | 9 Racks | Max 6 KW | 90 kVA Modular (N+1) | In-Row |
| ICDC40-A › | 40' HQ (ISO) | 24 KW | 4 Racks (Spacious) | Max 6 KW | 45 kVA Modular (N+1) | In-Row |
| ICDC40-B › | 40' HQ (ISO) | 72 KW | 12 Racks | Max 6 KW | 120 kVA Modular (N+1) | In-Row |
| Customized › | Non-Standard | Up to 500 KW | Flexible | Up to 20 KW+ | Custom Redundancy | In-Row / Liquid |
Product Features
Enterprise-Grade Power Architecture
The ICDC40-Type B integrates a powerful 120kVA Modular UPS with N+1 redundancy. The system includes an intelligent 3-in-1 power distribution cabinet that manages UPS input/output and precision cooling power. This integrated design saves 68% of space compared to traditional setups, leaving more room for your IT servers.
Optimized Thermal Management
Utilizing enclosed Cold/Hot aisle containment, the ICDC40 eliminates hot spots and maximizes cooling efficiency. The variable-speed In-Row cooling units adapt dynamically to the server load. Combined with the insulated container walls (R-value optimized), this system achieves a PUE as low as 1.2, significantly reducing OpEx.
FEATURED PRODUCTS OF DATA CENTER SOLUTIONS
Tailored to diverse deployment scenarios—including small enterprise IT rooms, retrofitted traditional data centers and outdoor edge nodes—our modular data center solutions balance performance, cost and energy efficiency.
3-15 kW per Cabinet
Micro Data Center
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Row Modular Data Center
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Aisle Containment Data Center
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Container Data Center
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
APPLICATIONS
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
FAQ
1. What are the primary applications for Container Data Centers?
2. What are the key advantages over traditional data centers?
3. How do containers withstand harsh outdoor environments?
4. Are Container Data Centers energy efficient?
5. What internal systems are included in a standard unit?
