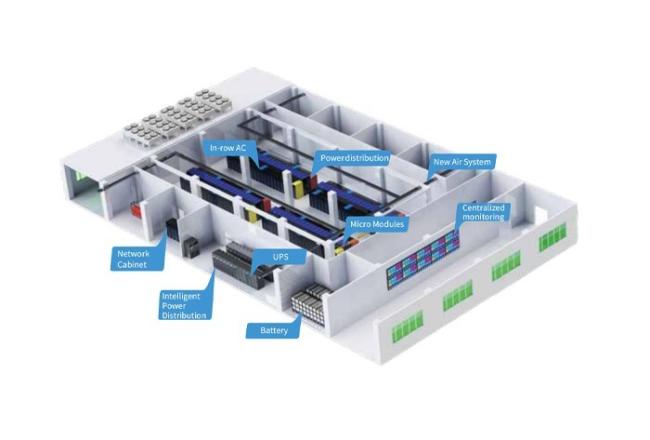

24 Rack Hyperscale Modern Data Center Hot Aisle And Cold Aisle Containment
Engineered for hyperscale scalability, the 24-Rack Cold Aisle Containment Solution is our highest capacity standard module, designed specifically for Internet Data Centers (IDC) and large-scale Cloud Computing Clusters. With an extended aisle length of 8400mm, it maximizes IT density by offering 22 dedicated server racks in a single energy-efficient ecosystem.
This high-performance infrastructure is powered by a 400A high-input power system and backed by a 5+1 Modular UPS configuration to support power-hungry AI and virtualization workloads. Featuring high-capacity 40.9kW In-Row Cooling units, it ensures strict thermal management for high-wattage racks, achieving an industry-leading PUE of 1.30 even under heavy computational loads.
Product Family
| Configuration | IT Cabinets | Power / Cab | UPS System | Cooling Capacity | Refrigeration Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| Plan 1 › | 12 Cabinets | 5 kW | 90K Rack Modular (15kVA modules, 4+1) |
25.5kW x 4 (3+1 Redundancy) |
In-Row AC | 4200 x 3600 x 2000 mm |
| Plan 2 › | 12 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
65.5kW x 2 (1+1 Redundant) |
In-Row AC | 4800 x 3600 x 2000 mm |
| Plan 3 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
71.1kW x 1 (N Redundancy) |
Room-Level AC | 4800 x 3600 x 2000 mm |
| Plan 4 › | 14 Cabinets | 5 kW | 120K Tower Modular (30kVA modules, 3+1) |
Custom Capacity (Tailored) |
FAN WALL | 4800 x 3600 x 2000 mm |
| Plan 5 › | 18 Cabinets | 5 kW | Modular N+1 (25kVA modules, 4+1) |
31.1kW x 4 (3+1 Redundancy) |
In-Row AC | 6000 x 3600 x 2000 mm |
| Plan 6 › | 24 Cabinets | 5 kW | Modular N+1 (25kVA modules, 5+1) |
40.9kW x 4 (3+1 Redundancy) |
In-Row AC | 8400 x 3600 x 2000 mm |
| Custom › | ≤ 48 Cabinets | ≤ 15 kW | Max 500kVA (2N/N+1 Redundancy) |
Flexible Capacity (Row or Room) |
Air / Water / Chilled | Length ≤ 15000 mm |
Product Features
High-Density Thermal Management
Precision Airflow: Utilizing four 40.9kW In-Row cooling units coupled with a fully sealed cold aisle, the system eliminates hotspots even in racks exceeding 8kW density.
Dynamic Cooling: Variable speed EC fans automatically adjust airflow based on real-time server load, maintaining a stable operating environment while minimizing energy waste (PUE < 1.30).
Hyperscale Power Architecture
High-Capacity Input: Engineered with a 400A/3P/380V dual-input supply to support large-scale virtualization and AI clusters.
Pay-as-you-Grow: The 5+1 modular UPS design allows data centers to start with required capacity and scale power modules linearly as IT equipment is added, optimizing CAPEX.
Full Series OF HIGH-DENSITY DATA CENTER SOLUTIONS
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
5-30 kW per Cabinet
Cold Aisle Data Center
Airtight cold aisle enclosure, 90%+ cold air utilization rate, PUE ≤ 1.2, fast deployment and flexible expansion for medium-density IT loads.
10-80 kW Total Power
20ft Container DC
Prefabricated all-in-one design, anti-vibration & dust-proof, plug-and-play, ideal for edge computing and temporary computing demand scenarios.
30-100 kW per Cabinet
40ft Cold Plate Container DC
Hybrid air-liquid cooling, direct heat dissipation from GPU/CPU, AI-ready design, high power density with low energy consumption.
50-200 kW per Cabinet
40ft Immersion Container DC
Immersion cooling with dielectric fluid, 100x higher heat dissipation efficiency than air cooling, PUE ≤ 1.1, perfect for ultra-high density AI clusters.
APPLICATIONS
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
FAQ
1. What is the maximum power density supported per rack?
2. Can I expand the system after initial deployment?
3. What is the standard lead time for international delivery?
4. Do you provide on-site installation services?
5. What certifications do your data centers hold?
