14 Rack Cold Plate Prefabricated Data Center Products for HPC

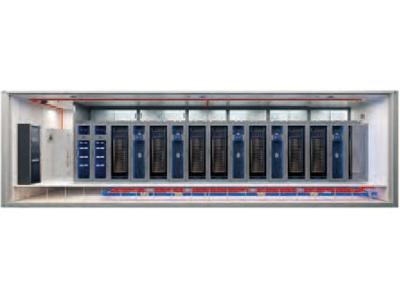

The 40ft Rack Cold Plate Prefabricated Data Center 14 Racks 700kW 40ft Shipping Container is a fully prefabricated high-density data center solution designed to deliver massive computing power on demand. Engineered within a standard 40ft ISO shipping container footprint, this factory-assembled unit integrates 14 optimized server racks and delivers up to 700kW of IT capacity via advanced rack cold plate liquid cooling technology, eliminating the need for complex on-site infrastructure and permanent building construction for large-scale computing needs.
By leveraging prefabrication, this high-performance solution arrives fully integrated with rack-mounted cold plate cooling systems, redundant power protection, and precision thermal management. It serves as a reliable, scalable data center solution for high-performance computing (HPC), AI training clusters, cloud computing hubs, and enterprise core networks, ensuring that critical large-capacity infrastructure can be deployed, relocated, and operationalized with minimal site preparation—all within the robust 40ft shipping container form factor supporting 14 high-density racks.
Product Family
| Model | Cooling Architecture | Rack / Tank Count | Max Power Density | Total Capacity | Container Type | Dimensions (L*W*H) |
|---|---|---|---|---|---|---|
| 20ft Immersion › | Single-Phase Immersion (Integrated FDU) |
4 Tanks | 100 kW / Tank | 400 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
| 40ft Immersion › | Single-Phase Immersion (Integrated FDU) |
12 Tanks | 100 kW / Tank | 1.2 MW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (In-Row) › | In-Row CDU (Liquid-to-Liquid / Air Assist) |
12 Racks (Space for CDUs) |
60 kW / Rack | 720 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 40ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
14 Racks (Maximized Space) |
50 kW / Rack | 700 kW | 40ft High Cube | 12192 x 2438 x 2896 mm |
| 20ft Cold Plate (Rack) › | Rack-Mounted CDU (Distributed Manifold) |
5 Racks | 50 kW / Rack | 250 kW | 20ft High Cube | 6058 x 2438 x 2896 mm |
Product Features
Pre-Integrated for Rapid Mobility
The true value of prefabrication is mobility. Because all systems are secured and tested in the factory, the ICDC20 acts as a portable asset. It complies with global shipping standards, allowing you to transport your entire data center infrastructure by truck or ship to wherever the edge moves.
High-Density Compact Prefabrication
Our factory engineers maximize every inch of the 20ft module. We fit 9 Standard 42U Racks with integrated In-Row cooling and containment. This level of precision engineering is only possible through prefabrication, ensuring PUE values of 1.2 even in a compact footprint.
FEATURED PRODUCTS OF Prefabricated Data Center
Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
3-15 kW per Cabinet
Micro Data Center
All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.
8-30 kW per Cabinet
Row Modular Data Center
Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.
15-40 kW per Cabinet
Aisle Containment Data Center
Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.
10-500 kW (20ft/40ft)
Container Data Center
Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.
APPLICATIONS
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
FAQ
1. What defines a Prefabricated Data Center?
2. How does prefabrication improve scalability?
3. What is the typical time saving compared to traditional builds?
4. Is factory integration more reliable than on-site assembly?
5. Are prefabricated centers as durable as permanent buildings?
