100KW Liquid Cooling Data Center, Server Room With High Density Cluster Module

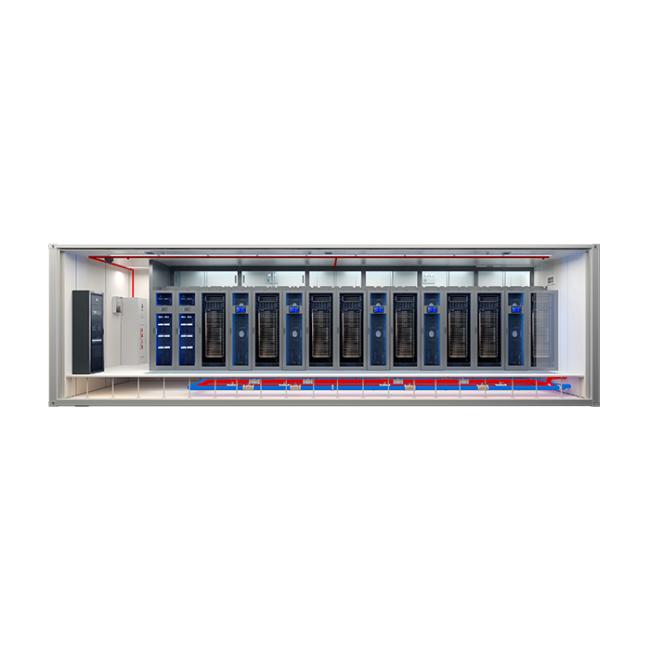

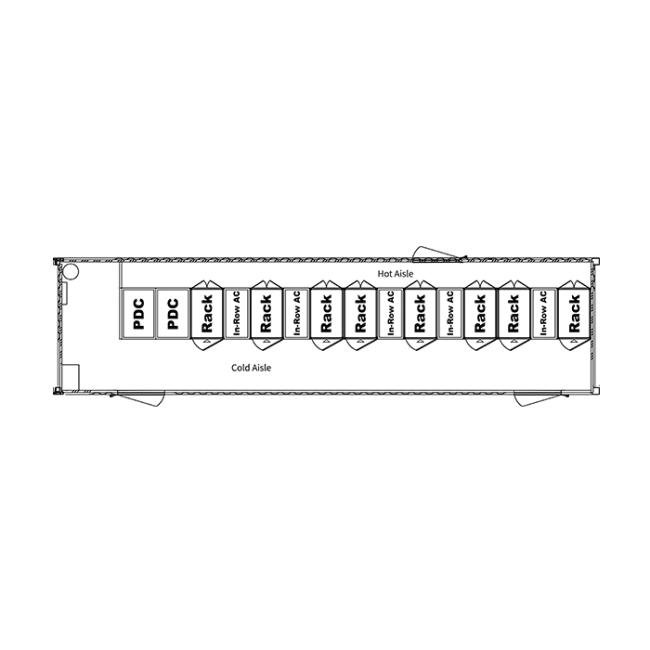

The AICoolit™ High-Density Cluster Module integrates cold plate liquid cooling technology with 8 rack-mounted CDUs (80KW each) to deliver industry-leading thermal management for ultra-high-power computing scenarios. As a 40-foot prefabricated container solution (12800×3200×3800 mm), it achieves a 100KW per cabinet power density and an optimized 2:8 air-to-liquid ratio, ensuring direct and efficient heat transfer from high-density GPU/CPU clusters.
Designed for large-scale AI training, supercomputing centers, and core financial data centers, it features N+1 redundant core components, non-conductive coolants, and multi-layer leak-proof monitoring. The factory-prefabricated integration of power distribution (≥1000KVA UPS), cooling, and intelligent control systems enables rapid on-site deployment with minimal configuration.
Product Family
| Model | Cooling Capacity | Rated Power (Per Cabinet) | Air-Liquid Ratio | Cooling Technology | Dimensions (WxDxH, mm) |
|---|---|---|---|---|---|
| AICoolit-HDC › | 8×80 KW CDU + 5×50.5 KW AC | 100 KW | 2:8 | Cold Plate Liquid Cooling | 3200 x 12800 x 3800 |
| AICoolit-ISM › | 350 KW CDU + 4×31.5 KW AC | 50 KW | 2:8 | Cold Plate Liquid Cooling | 3200 x 12192 x 3800 |
| AICoolit-ECM › | 4×50 KW CDU + 2×30 KW AC | 50 KW | 1:9 | Cold Plate Liquid Cooling | 3200 x 6500 x 3500 |
| AICoolit-ICM › | 4×400 KW CDU | 55 KW | 0:10 | Immersion Liquid Cooling | 3200 x 12192 x 3800 |
Product Features
Ultra-High Power Density & Redundancy
Delivers 100KW per cabinet power density with an optimized 2:8 air-to-liquid ratio, leveraging cold plate liquid cooling for direct heat transfer from high-density GPU/CPU clusters. N+1 redundant core components (CDUs, pumps, power modules) ensure 99.999% uptime, while non-conductive coolants and multi-layer leak-proof monitoring eliminate safety risks.
Prefabricated Large-Scale Deployment
40-foot prefabricated container integrates ≥1000KVA modular UPS, external battery packs, and intelligent control systems. Factory-tested and pre-configured, it supports rapid on-site deployment (≤72 hours) for large AI training clusters and supercomputing centers, eliminating complex on-site assembly.
FEATURED PRODUCTS OF liquid COOLING SOLUTIONS
Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
In-Rack / In-Row / In-Room
Intelligent CDU Series
The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.
PUE < 1.2
Immersion Cooling Tank
Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.
Prefab & Modular
Prefab Liquid Cooling DC
Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.
High-Quality
Key Accessories
Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.
APPLICATIONS
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
FAQ
1. What is the maximum expansion capacity of this module?
2. How to ensure uninterrupted operation during maintenance?
3. What is the service life of the non-conductive coolant used?
4. Does it support customized power distribution configuration?
