20 Foot Liquid Cooling Data Center Water Cooled Server With Edge Compact Module

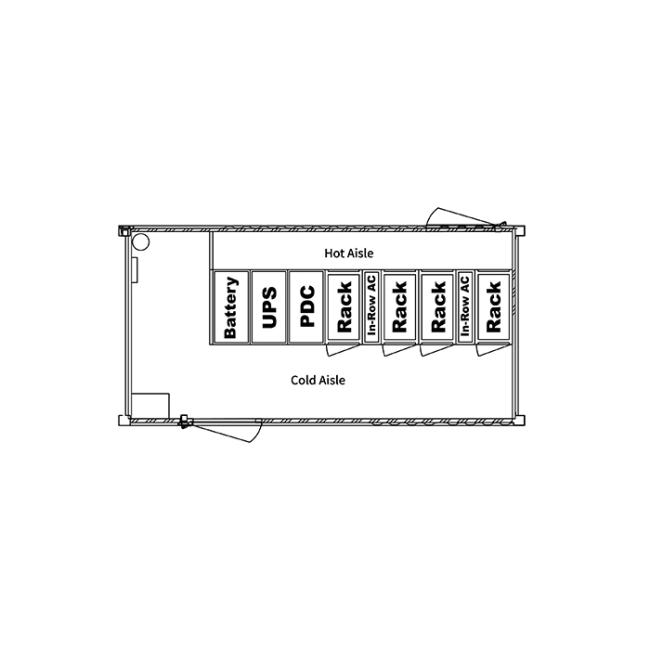

The AICoolit™ Edge Compact Module redefines edge computing cooling with a 20-foot space-saving design (6500×3200×3500 mm) that integrates cold plate liquid cooling and 4×50KW rack-mounted CDUs. Boasting an exceptional 1:9 air-to-liquid ratio (90% liquid cooling dominance), it delivers 50KW per cabinet power density while fitting into space-constrained edge environments.
Tailored for 5G base stations, remote edge nodes, and small private clouds, it features a 300KVA modular UPS and 15-minute backup lithium battery. The plug-and-play architecture, standardized quick connectors, and local/remote dual-control system enable rapid deployment without on-site modifications, supported by leak detection and non-conductive coolant safety guarantees.
Product Family
| Model | Cooling Capacity | Rated Power (Per Cabinet) | Air-Liquid Ratio | Cooling Technology | Dimensions (WxDxH, mm) |
|---|---|---|---|---|---|
| AICoolit-HDC › | 8×80 KW CDU + 5×50.5 KW AC | 100 KW | 2:8 | Cold Plate Liquid Cooling | 3200 x 12800 x 3800 |
| AICoolit-ISM › | 350 KW CDU + 4×31.5 KW AC | 50 KW | 2:8 | Cold Plate Liquid Cooling | 3200 x 12192 x 3800 |
| AICoolit-ECM › | 4×50 KW CDU + 2×30 KW AC | 50 KW | 1:9 | Cold Plate Liquid Cooling | 3200 x 6500 x 3500 |
| AICoolit-ICM › | 4×400 KW CDU | 55 KW | 0:10 | Immersion Liquid Cooling | 3200 x 12192 x 3800 |
Product Features
Space-Optimized Edge Adaptation
20-foot compact container (6500×3200×3500 mm) with 90% liquid cooling dominance (1:9 air-to-liquid ratio) and 50KW per cabinet power density. Perfectly fits space-constrained edge environments like 5G base stations, remote data nodes, and small private clouds.
Enhanced Safety & Long Backup Time
Full-link leak detection with water collection trays and alarm systems, paired with non-conductive, non-toxic coolants. 300KVA modular UPS with 15-minute lithium battery backup meets emergency power needs for remote edge deployments with limited power infrastructure.
FEATURED PRODUCTS OF liquid COOLING SOLUTIONS
Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.
In-Rack / In-Row / In-Room
Intelligent CDU Series
The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.
PUE < 1.2
Immersion Cooling Tank
Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.
Prefab & Modular
Prefab Liquid Cooling DC
Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.
High-Quality
Key Accessories
Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.
APPLICATIONS
Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.
FAQ
1. Is it suitable for outdoor deployment in remote areas?
2. Can the backup time of the lithium battery be extended?
3. How to realize remote monitoring and management?
