P2.6 Indoor LED Panels 192x192 Resolution LED Rental Screen 7680Hz
Price:
Negotiable
MOQ:
10 PCS
Delivery Time:
30 days
Brand:
TuringLED
Product Description
FBslim2.6 Indoor Rental LED Screen with 2.6mm Pixel Pitch Die Casting Aluminum and 192 x 192 Panel Resolution
Product Overview
FBslim can lock into standard Aluminum profile

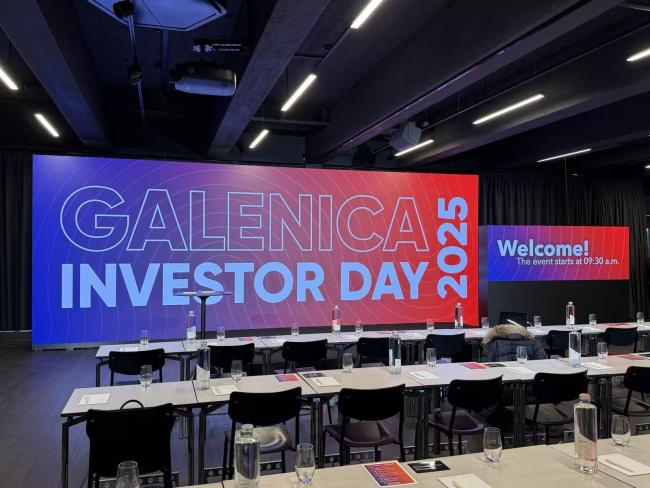

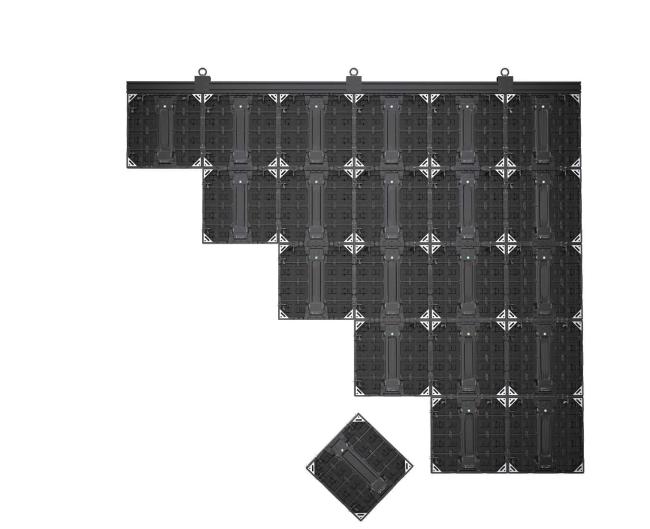

It is All-in-one indoor LED display panel designed for versatile applications including exhibitions, events, wall mounting, double-sided displays, 90-degree corner installations, and shopping mall banners.
FBslim is 100% front access and also 100% back access including modules, card, power supply and cables.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pixel Pitch | 2.601 mm |
| Panel Resolution | 192 * 192 Dots |
| Brightness | 600-1800 Nits (after calibration) |
| Pixel Configuration | SMD1515, SMD2IN1 |
| Scanning Mode | 1/24 or 1/16 |
| Weight per Panel | 5.7 kg (GOB: 6.06 kg per panel) |
| Pixels per Square Meter | 147,456 |
| Refresh Rate | 7,680 Hz |
| Input Power (Max/Avg) | 180W / 60W per Panel |
| Panel Dimensions | 500 * 500 * 40 mm |
| Panel Area | 0.25 m² |
| Panel Material | Die Casting Aluminum |
| Ingress Protection | IP30 Front / IP30 Rear |
| Certifications | CE, EMC Class A, RoHS, FCC |
| Packaging | Flight Case |
Key Features
- Support 5G and HDR10
- Calibration data built-in IM technology
- Lock into Alu Profile 4040
- All front access
- All back access
- Versatile all-in-one indoor display solution
- High pixel density for superior image quality
- Robust die-cast aluminum construction
- Multiple mounting and installation options
- Professional certifications for quality assurance
