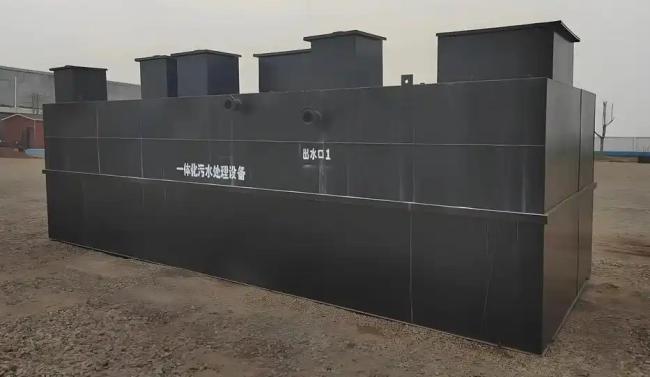

Integrated Sewage Treatment Equipment: Used for sewage treatment in public buildings, urban and rural residences, and municipal engineering

Quick Details

Faced with the severe challenges of global water scarcity and water environment protection, our integrated biological treatment equipment for domestic wastewater provides you with a modular, high-efficiency, economical and reliable wastewater purification solution. Specifically designed for decentralized wastewater treatment scenarios, this equipment serves as an effective supplement to municipal pipe networks, and is widely applied in residential districts, rural communities, tourist resorts, schools, industrial parks and small-scale municipal facilities, etc.

Core Advantages

Superior Treatment Efficiency:Adopting proven biological treatment processes (such as A/O, SBR, MBR, MBBR or their combined processes) combined with intelligent control, the equipment achieves extremely high removal rates of key pollutants including COD, BOD, ammonia nitrogen, total nitrogen and total phosphorus. The effluent quality remains stable, meeting or even exceeding local stringent discharge standards, and some models are capable of realizing reclaimed water reuse.

High Integration & Compact Design:It intelligently integrates multiple units including pretreatment, biological reaction, sedimentation, disinfection and sludge treatment into a single piece of equipment or a standardized container module. Featuring a small floor area and minimal infrastructure work, it greatly reduces civil engineering costs and installation cycles.

Excellent Reliability & Adaptability:The equipment boasts a robust structure, with core components made of high-quality, corrosion-resistant materials for an extended service life. The process design demonstrates strong shock load resistance, enabling it to adapt to fluctuations in the volume and quality of domestic wastewater and ensuring stable operation.

Fully Automatic & Intelligent Operation:Equipped with an advanced PLC automatic control system, it supports unattended operation, remote monitoring and intelligent alarm functions. Characterized by simple operation management and low daily maintenance requirements, it significantly cuts down long-term operational costs.

Outstanding Energy-Saving & Environmental-Friendly Features:The optimized aeration system and energy recovery unit effectively reduce energy consumption. The process generates a small amount of sludge, alleviating the burden and costs of subsequent sludge treatment and disposal, and thus leaving a minimal overall environmental footprint.

Flexible Delivery & Deployment:We offer standardized product series and also support customized design to meet specific requirements and standards. The equipment can be transported as a whole and rapidly installed and commissioned on-site, greatly improving project execution efficiency.

Technical & Application Highlights

Core Technology:Relying on the efficient metabolic activities of aerobic, anaerobic and facultative microorganisms, it deeply degrades organic pollutants and achieves nitrogen and phosphorus removal.

Wide Applicability:It is particularly suitable for new construction, renovation or emergency wastewater treatment projects, and serves as an ideal choice for areas lacking centralized wastewater treatment facilities, contributing to the construction of sustainable communities and green infrastructure.

Technical Specifications of 10 T/h Integrated Biological Treatment Equipment for Domestic Wastewater

Application Scope:

Wastewater from urban and rural residences and communities, public buildings and service institutions, commercial and tourist facilities, municipal wastewater treatment stations as well as emergency wastewater treatment projects, etc.

Flow Chart of Integrated Biological Treatment System for Domestic Wastewater

(Customized treatment process based on different working environments, water quality and treatment requirements)

Domestic Sewage

↓

Pretreatment (Grille, Regulation/Hydrolysis Acidification Tank, etc.)

↓

Biological Treatment Section (Anaerobic Tank, Anoxic Tank, Aerobic Biological Treatment Unit, Return System, etc.)

↓

Sludge-Water Separation (Sedimentation Tank, MBR, Filter Press, etc.)

↓

Disinfection Section (Chlorine Dioxide Generator, Ultraviolet Disinfection, etc.)

↓

Discharge
