Commercial Steel Frame Greenhouse with Hot-dip Galvanized Steel, Customizable Span, and Wind Resistant Design
Our Commercial Agricultural Steel Frame Greenhouse is a durable and cost-effective structure designed for large-scale commercial crop production. Built with high-strength hot-dip galvanized steel, this greenhouse provides excellent resistance to corrosion, wind, and heavy snow loads, ensuring long-term stability and reliable agricultural performance.
This commercial greenhouse is widely used for vegetable farming, fruit cultivation, flower production, and seedling propagation. It supports modern agricultural technologies including automatic irrigation, climate control, hydroponic systems, and intelligent environmental monitoring, allowing growers to optimize crop yield and quality.
The greenhouse features a modular multi-span design that allows flexible expansion according to farm size and production requirements. It can be covered with different materials such as polyethylene film, polycarbonate sheets, or tempered glass, depending on climate conditions and project budget.
| Parameter | Specification |
|---|---|
| Structure Type | Multi-span Commercial Greenhouse |
| Frame Material | Hot-dip Galvanized Steel |
| Zinc Coating | ≥ 275 g/m² |
| Span Width | 6m / 8m / 9.6m / 10.8m / 12m |
| Bay Spacing | 4m / 4.5m / 6m / 8m |
| Gutter Height | 3m – 6m |
| Top Height | 4m – 8m |
| Covering Material | PE Film / Polycarbonate Sheet / Tempered Glass |
| Film Thickness | 120μm – 200μm |
| Wind Load | 0.5 – 0.7 kN/m² |
| Snow Load | 0.3 – 0.5 kN/m² |
| Rainfall Capacity | 120 – 150 mm/h |
| Structure Lifetime | 15 – 20 years |
| Covering Lifetime | 3 – 10 years (depending on material) |

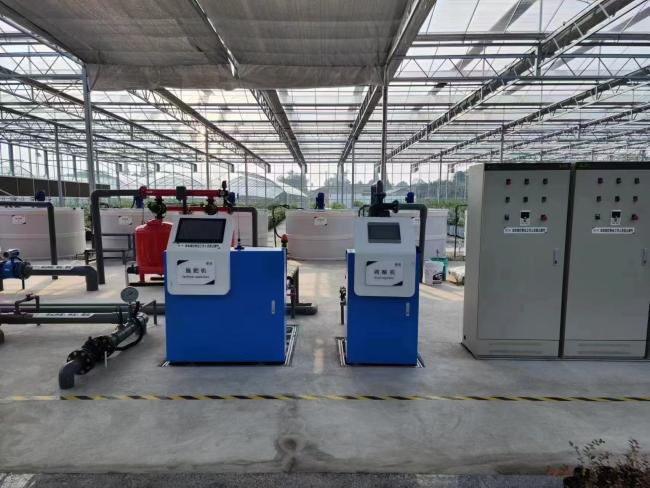

Smart Irrigation & Fertigation: Delivering Precision Nutrition to Every Drop.
Our integrated systems combine water-saving drip technology with automated nutrient dosing, increasing crop yields by up to 30% while reducing water consumption by half.
Our greenhouse projects have been exported to:
- USA
- Australia
- Canada
- Middle East
- Africa
