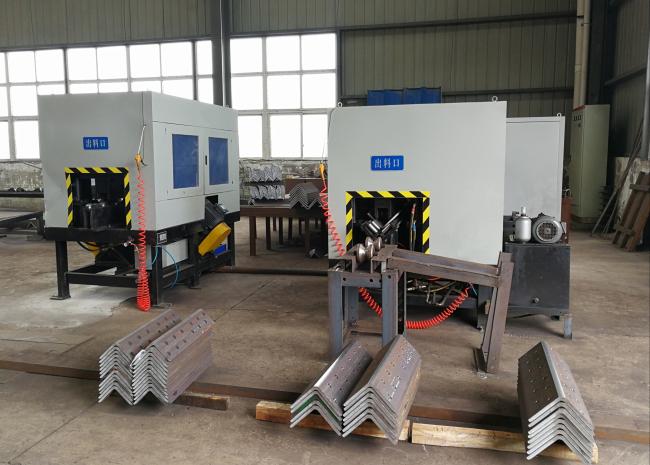

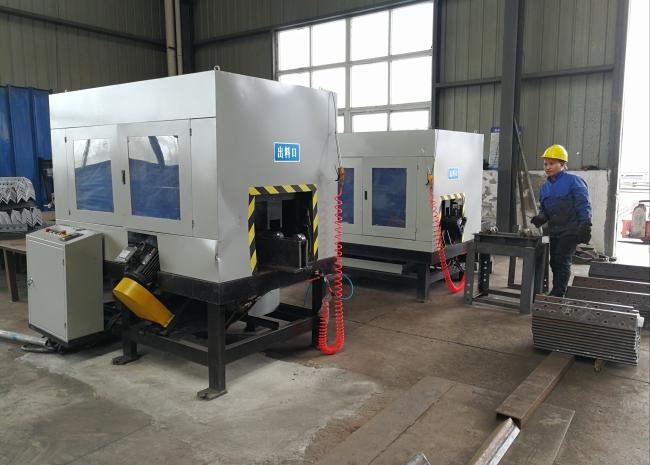

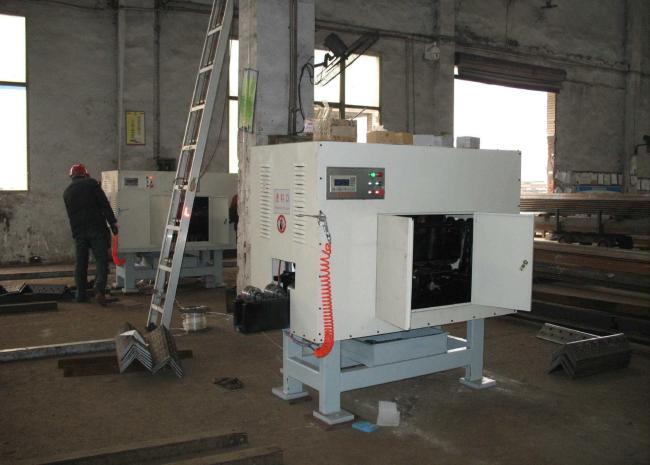

Model GQ200 Angle Root Milling Machine Used To Process The Inner Arc Of Angle Steel

Model GQ200 Angle Root Milling Machine Used To Process The Inner Arc Of Angle Steel

Application Industry:

Mainly used to process the inner arc of angle steel.

Product Parameter Configuration:

Equipment usage instructions and Characteristics:

1. The machine adopts high-speed milling technology for angle steel back-face milling and root-edge preparation, delivering efficient and precise material removal performance.

2. Compared with conventional planing processes, the equipment significantly enhances root-cleaning productivity, achieving processing efficiency up to ten times higher than traditional methods.

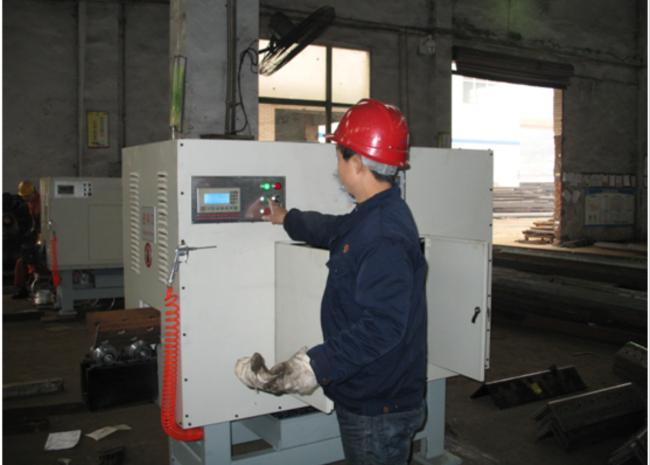

3. The system is designed with a user-friendly operating interface, minimizing operator skill requirements and simplifying daily production management.

4. By incorporating a high level of automation, the equipment substantially reduces labor intensity and supports continuous feeding of angle steel sections for uninterrupted production.

5. Unlike traditional planers that are limited by workpiece length and clamping requirements, this advanced milling system offers greater processing flexibility. The elimination of dedicated clamping fixtures improves operational convenience while increasing overall production efficiency.

6. The machine features straightforward operation, flexible parameter adjustment, and reliable performance, ensuring stable and consistent processing results.

Workpiece process

1. Load the angle steel workpiece into the machine.

2. Under automatic operating mode, initiate the cycle by pressing the start button. The system will automatically execute the complete machining sequence.

3. Workpieces with identical specifications can be processed continuously, maximizing throughput and production efficiency.

Configurations:

1. The continuous feeding system is driven by a gear motor, providing stable material transportation and significantly improving production efficiency.

2. Major electrical components are sourced from internationally recognized brands such as Schneider and Omron, ensuring superior quality, operational reliability, and long service life.

3. The machine is equipped with a dual-spindle configuration, reducing the cutting load borne by each cutter and effectively extending tool service life.

4. The spindle system is powered by two 3 kW motors and utilizes synchronous belt transmission technology to minimize vibration, ensuring stable, accurate, and dependable operation.

5. A coolant-based cutting fluid system is incorporated to provide effective tool cooling and lubrication, significantly extending cutter lifespan and improving machining performance.
