Melamine Hydraulic Hot Press Machine for Melamine Urea Tableware Molding
The Melamine Press Machine is a four-column hydraulic hot compression molding equipment specifically designed for melamine formaldehyde powder, urea formaldehyde powder, and amino molding compounds. Integrating precise hydraulic driving, constant-temperature heating plates, and PLC intelligent control systems, it completes material hot-press curing, exhaust, and forming in a single cycle to produce high-quality melamine tableware and amino plastic products.
Heavy-duty four-column frame structure resists deformation under long-term high-tonnage conditions, ensuring uniform pressure distribution and reducing defective rates.
Freely configure pressing force, heating temperature, holding time, exhaust cycles and distance with automatic operation cycles.
Even heating plate temperature ensures complete melamine powder curing and improves tableware surface gloss.
Compatible with various melamine tableware molds featuring quick mold replacement for flexible multi-SKU production.
Includes emergency stop button, safety sensors, and over-pressure automatic relief functions for operator and machine protection.
Utilizes premium brand hydraulic valves, oil pumps, and electrical components for long service life and easy maintenance.

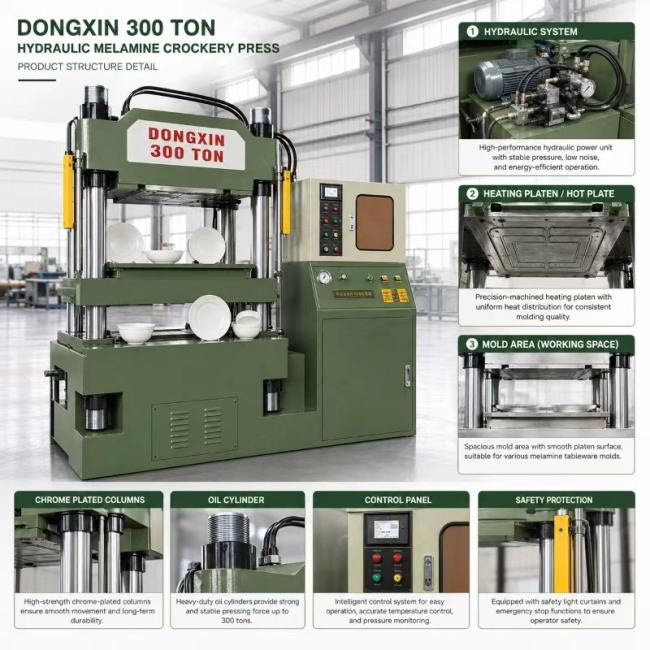

- Four-column heavy-duty main frame
- Hydraulic power unit (oil pump, solenoid valve, oil cylinder)
- Constant-temperature heating plate assembly
- PLC & touch screen control cabinet
- Safety protection assembly & emergency stop device
- Mold positioning platform
| Item | Specification |
|---|---|
| Model | 200T / 250T / 300T / 400T (customizable) |
| Total Pressing Force | 200-400 Ton |
| Heating Plate Size | 700*700mm / 800*800mm / 900*800mm (custom) |
| Heating Temperature Range | 120-180℃ adjustable |
| Working Stroke | 350-450mm |
| Control Mode | PLC + Touch Screen |
| Power Supply | 380V 50/60Hz 3-phase |
| Cycle Time | 25-45s per molding cycle (depends on products) |
| Weight | 6500-9000 KG |
| Optional Configuration | Auto feeding device, pre-matching with automatic weighing machine |
- Tonnage Customization: Support non-standard tonnage from 150T-500T according to product requirements
- Heating Plate Size: Custom dimensions to match existing molds
- Function Customization: Add automatic feeding, auto ejecting, and linkage with preheating and weighing systems
- Voltage & Frequency: Custom 380V/415V, 50Hz or 60Hz for different country power grids
- Logo & Appearance: Custom brand logo and painting color options
- Mold Matching Service: Recommended matched melamine molds with press machine
- Mass production of melamine tableware: plates, bowls, cups, spoons, trays, and food containers
- Molding for urea formaldehyde powder products: toilet seats, electrical amino plastic parts
- Forming of MMC / UMC amino molding compound and melamine glazing powder
- Complete melamine tableware production line integration
Machine frames utilize thick steel plate welding with stress-relief treatment. Core hydraulic and electrical components feature premium brand parts. Each machine undergoes comprehensive assembly, wiring, hydraulic debugging, and high-pressure load testing before factory release.
- Raw material incoming inspection for steel, hydraulic and electrical components
- Full-load pressure testing, temperature uniformity verification, and continuous cycle aging tests
- Test video and photo documentation provided before shipment
- CE-compliant safety standards with 12-18 months warranty period

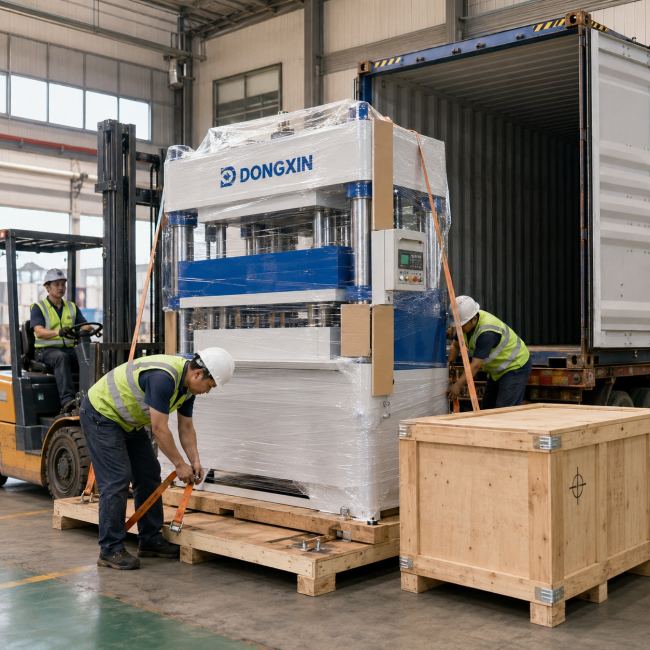

- Main machine wrapped with anti-rust plastic film in fumigation-free wooden cases
- Spare parts, operation manual, and electrical drawings in separate wooden boxes
- Suitable for sea freight long-distance transportation
- FOB / CIF shipment options available
