8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug

Price Negotiable

Price: $539-575 / piece

MOQ: 1

Delivery Time: 7 days

Brand: FengShen

Product Description

Industrial Grade Emission Control Trucks Vehicle Equipment Exhaust Gas

Products Description

Fengshen Manual spring operated reels work best in applications where the hose reel is within reaching distance of the operator. Simply pull down the hose to the desired length and attach the exhaust nozzle to the tailpipe. After successfully removing car exhaust from your space, the hose easily retracts back into the reel.

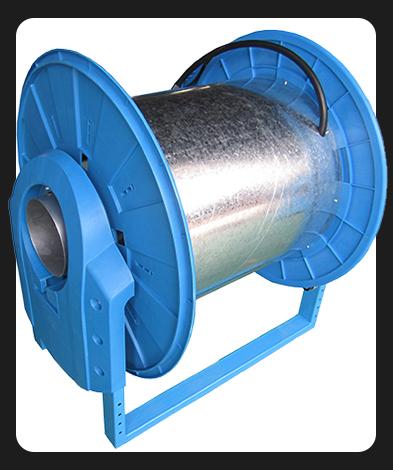

A drum (Dia-casting PPS plastic housing and zinc-plated steel cylinder) stores the hose securely in place overhead
The hose reel is mounted to a steel bracket.
Manual operation with multi-position lock ratchet and stopper collar
Heat & crush resistant rubber hose
Easy-quick nozzle can attach to the exhaust source.
The hose reel exhaust port can be equipped with a direct mount fan/blower (option)Features:
Features:
Dia-casting PPS plastic housing
zinc-plated steel cylinder
Metal Ratchet Gyrator

2. φ152 rubber hose super for High-Emission Vehicle

3. Without fan (brower), this Hose Reel should be connected to a centralized exhaust fan.

Diameter	152mm
Length	8meters
Temperature	-40to220Degree

Order No.	Drum Disc Dia(mm)	Drum Length(mm)	Hose Capacity
2763030308	650	500	φ76mm *8m
2763030310	650	500	φ76mm *10m
2763030408	650	500	φ102mm *8m
2763030410	650	650	φ102mm *10m
2763030508	650	650	φ127mm *8m
2763030510	650	800	φ127mm *10m
2763030608	650	800	φ152mm *8m

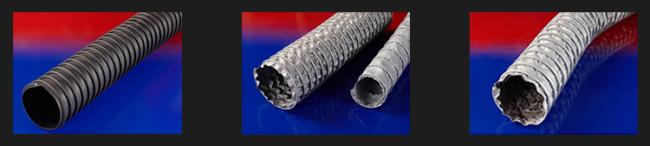

Hose(8/10m):

Order No.	Hose Material	Temp. Resistance(℃)	Hose Dia.(mm)
275011-5	PVC	110	127
275021-3	Neoprene	200	76
275021-4	Neoprene	200	102
275021-5	Neoprene	200	127
275021-6	Neoprene	200	152
275031-3	One-Layer Fabric	300	76
275031-4	One-Layer Fabric	300	102
275031-5	One-Layer Fabric	300	127
275031-6	One-Layer Fabric	300	152
275061-4	Two-Layer Fabric	650	102
275061-5	Two-Layer Fabric	650	127
275061-6	Two-Layer Fabric	650	152

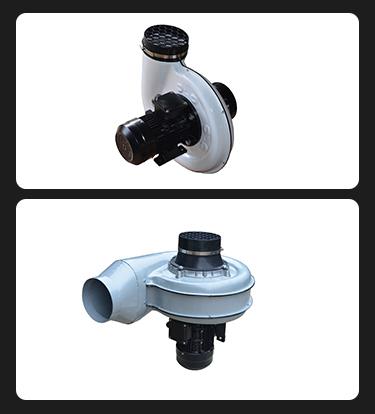

Fan:

Order No.	Power
273175	0.75 KW
273111	1.1 KW
273215	1.5 KW
273222	2.2 KW
273230	3 KW

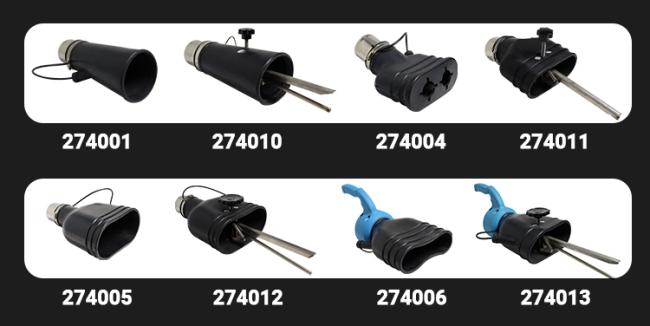

Nozzel:

Order No.	Inlet	Material	Hose Dia
274001-3	φ120 mm	Neopren	76 mm / 3"
274001-4	φ120 mm	Neopren	102 mm / 4"
274010-3	φ120 mm	Neopren	76 mm / 3"
274010-4	φ120 mm	Neopren	102 mm / 4"
274004-3	190 x 80 mm	Neopren	76 mm / 3"
274004-4	190 x 80 mm	Neopren	102 mm / 4"
274011-3	190 x 80 mm	Neopren	76 mm / 3"
274011-4	190 x 80 mm	Neopren	102 mm / 4"
274005-3	210 x 120 mm	Neopren	76 mm / 3"
274005-4	210 x 120 mm	Neopren	102 mm / 4"
274012-3	210 x 120 mm	Neopren	76 mm / 3"
274012-4	210 x 120 mm	Neopren	102 mm / 4"
274006-3	210 x 120 mm	Neopren	76 mm / 3"
274006-4	210 x 120 mm	Neopren	102 mm / 4"
274013-3	210 x 120 mm	Neopren	76 mm / 3"
274013-4	210 x 120 mm	Neopren	102 mm / 4"

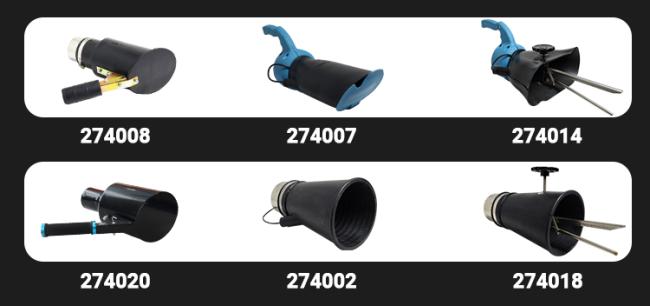

Order No.	Inlet	Material	Hose Dia
274008-3	120 x 110 mm	Neopren	76 mm / 3"
274008-4	120 x 110 mm	Neopren	102 mm / 4"
274007-3	150 x 110 mm	Neopren	76 mm / 3"
274007-4	150 x 110 mm	Neopren	102 mm / 4"
274014-3	180 x 90 mm	Neopren	76 mm / 3"
274014-4	180 x 90 mm	Neopren	102 mm / 4"
274020-3	320 x 116 mm	Iron	76 mm / 3"
274020-4	320 x 116 mm	Iron	102 mm / 4"
274002-4	φ180 mm	Neopren	102 mm / 4"
274002-5	φ180 mm	Neopren	127 mm / 5"
274018-4	φ180 mm	Neopren	102 mm / 4"
274018-5	φ180 mm	Neopren	127 mm / 5"

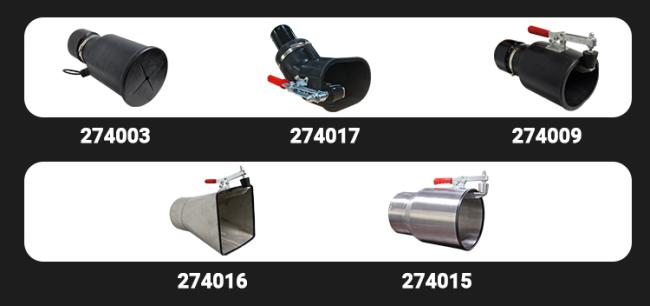

Order No.	Inlet	Material	Hose Dia
274003-4	φ150 mm	Neopren	102 mm / 4"
274003-5	φ150 mm	Neopren	127 mm / 5"
274017-4	180 x 90 mm	Neopren	76 mm / 3"
274017-5	180 x 90 mm	Neopren	102 mm / 4"
274009-4	φ180 mm	Neopren	102 mm / 4"
274009-5	φ180 mm	Neopren	127 mm / 5"
274015-5	φ245 mm	Stainless Steel	127 mm / 5"
274015-6	φ245 mm	Stainless Steel	152 mm / 6"
274016-5	270 x 260 mm	Stainless Steel	127 mm / 5"
274016-6	270 x 260 mm	Stainless Steel	152 mm / 6"
274020-3	φ140 mm	Iron	76 mm / 3"
274020-4	φ140 mm	Iron	102 mm / 4"
