Heavy-Duty Portable Exhaust Extractor with Activated Carbon Filter for Vehicle Repair
The Fengshen SP-2005 SERIES Heavy-Duty Portable Exhaust Extractor is a professional-grade, integrated filtration system designed for workshops and facilities where fixed exhaust infrastructure is not installed or practical. This system provides a complete mobile solution for capturing, filtering, and removing harmful vehicle exhaust fumes and smoke directly at their source. Featuring a powerful multi-stage filtration process that includes a high-capacity activated carbon bed, this Portable Exhaust Extractor not only removes particulate but also adsorbs toxic gases and odors, ensuring cleaner air is recirculated or safely discharged. It is the essential, heavy-duty tool for automotive repair shops, fire station maintenance bays, and technicians requiring superior mobile fume control.
Advanced Activated Carbon Filtration: The core of this system is its industrial-grade activated carbon filter, which effectively adsorbs harmful hydrocarbons, carbon monoxide, and unpleasant odors from gasoline and diesel exhaust, providing a higher level of air purification than simple particulate extraction.
High-Power, Adjustable Airflow: Equipped with a robust centrifugal fan (with multiple power options available), this Portable Exhaust Extractor delivers high-volume airflow to quickly capture and process exhaust smoke, with adjustable settings to suit different engine sizes and applications.
Heavy-Duty Mobile Chassis: Built on a sturdy, steel-frame trolley with large, locking casters, this heavy-duty unit can be easily maneuvered around the workshop yet remains stable during operation. Its robust construction is designed for daily professional use.
Complete Plug-and-Play System: This Portable Exhaust Extractor arrives as a fully integrated unit. It includes the fan, filters, flexible hose, and tailpipe adapters, requiring no complex installation—simply connect to power and a vehicle to begin operation.
Versatile Source Capture: The flexible hose and adjustable intake allow for easy connection to various vehicle tailpipes, making it ideal for servicing cars, trucks, and machinery in any location within the garage or shop.
We are a certified manufacturer specializing in industrial air quality solutions. We combine direct production control with a deep understanding of workshop challenges to deliver reliable, high-performance equipment. Our Portable Exhaust Extractor systems are CE certified and backed by a strong warranty. We offer customization options and expert support to clients in a global network spanning the UK, Australia, Canada, the USA, Malta, the Netherlands, Denmark, Norway, Germany, Switzerland, and over 60 countries. By choosing us, you partner with a supplier committed to quality, safety, and providing the right heavy-duty tool to protect your workforce and business.
| Attribute | Specification |
|---|---|
| Product Series | SP-2005 Heavy-Duty Portable Exhaust Extractor |
| Core Technology | Activated Carbon Filtration + Particulate Pre-Filter |
| Power Options | 0.55KW, 0.75KW, 1.1KW, 1.5KW, 2.2KW, 3.0KW (Typical Range) |
| Voltage | 220V / 380V (Configurable) |
| Operation | Semi-Automatic, Mobile |
| Certification | CE |
| Warranty | 12 Months |
Q: How does the activated carbon filter work in this Portable Exhaust Extractor?
A: The activated carbon filter uses a process called adsorption. As exhaust gases pass through the filter, harmful chemical compounds and odor molecules become trapped within the millions of tiny pores in the carbon material, thereby purifying the air stream before it is released.
Q: How do I choose the correct fan power?
A: The required power depends on your typical application. For standard car exhaust, 0.55KW-1.1KW is often sufficient. For larger diesel engines, continuous use, or longer hose runs, we recommend 1.5KW and above. Our team can assist you in selecting the optimal configuration for your Portable Exhaust Extractor.
Q: Is this unit effective for dense diesel smoke from trucks or generators?
A: Yes. The combination of a high-power fan and a substantial activated carbon filter makes this heavy-duty Portable Exhaust Extractor particularly effective at handling the visible particulates and invisible toxic gases in diesel exhaust.
Q: Does it require professional installation?
A: No. This is a completely self-contained, portable system. There is no ductwork or permanent installation required. Simply position the unit, connect it to a suitable power source, and it is ready to operate.
Q: What does the warranty cover?
A: Our standard warranty covers defects in materials and workmanship for a period of 12 months from the date of delivery under normal operating conditions, providing peace of mind for your investment in this Portable Exhaust Extractor.

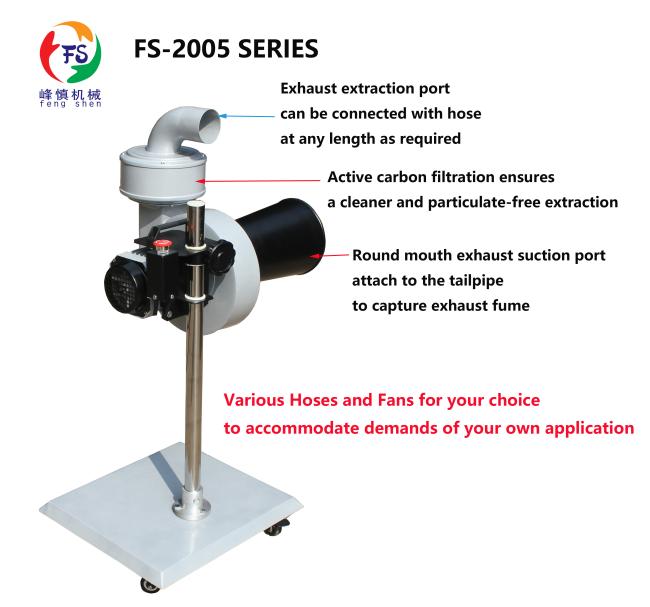

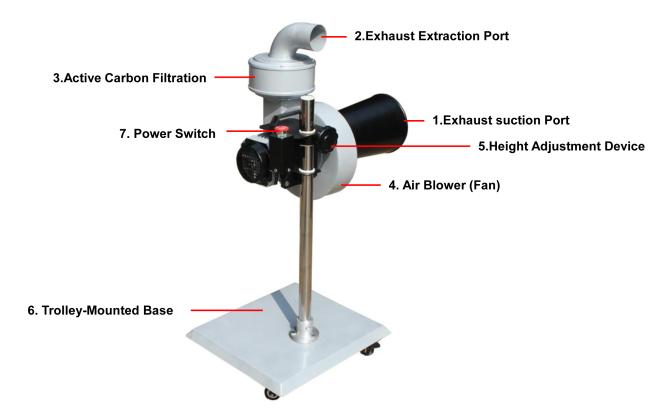

- Single exhaust suction ports
- Exhaust extraction port can be connected with hose at any length as required
- Active carbon filtration ensures a cleaner and particulate-free extraction.
- Air blower(fan)

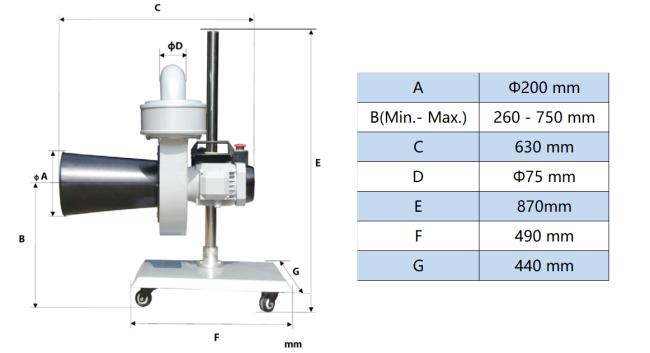

- Working height is adjustable from 260mm to 750mm to catch vehicle’s tailpipe

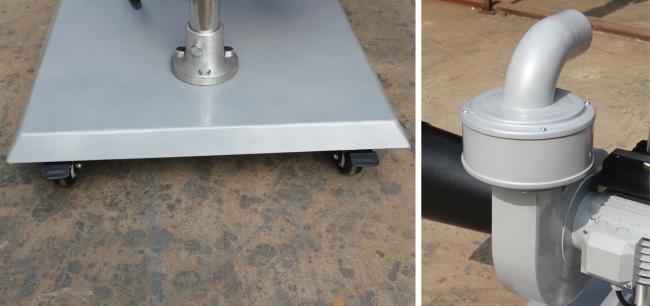

- Trolley-mounted base with four universal casters (2pcs with brake) for flexible moving

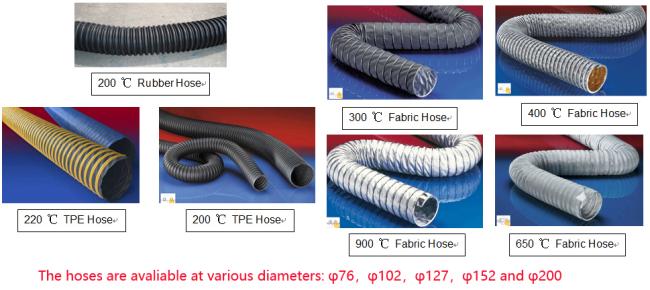

| Hose Diameter | 76/102/127mm |

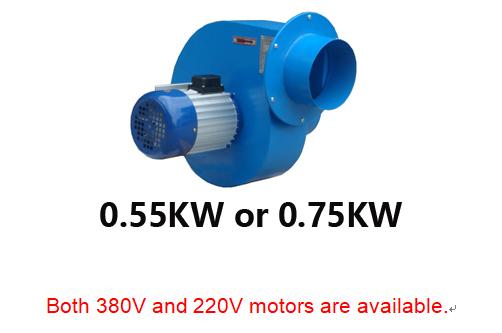

| Fan | 0.55/0.75KW |
| Hose Length | as your requirement |
