Self Lubricated Yoke Type Cam Followers Black Oxide Treated for Industrial
Price:
$1.00 - $30.00
MOQ:
2000
Delivery Time:
30 working days
Brand:
SYX
Product Description

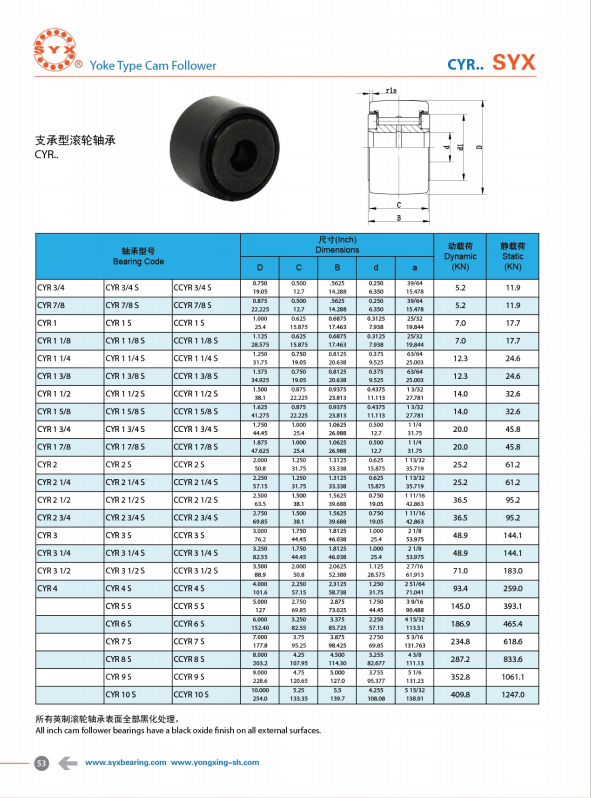

CYR Yoke Type Cam Followers SYX Inch Size with Black Oxide Treatment
CYR Yoke Type Cam Followers SYX are precision-engineered components designed for demanding industrial applications. Each complete unit consists of an outer ring, inner ring, needle retainer assembly, and retainer rings that are pressed and fixed on both sides of the inner ring. The outer ring is axially guided by a thrust washer, and all bearing steel components feature black oxide treatment for enhanced corrosion resistance.
Frequently Asked Questions
What's the difference between KR, KR..PP, and KRV..PP models?
KRV..PP models feature full complement roller type construction with seals on both sides. KR..PP models use steel cages with seals, while standard KR models have steel cages without seals.
Where are cam followers typically used?
Widely applied in machine tools, metallurgical machinery, textile machinery, printing machinery, and processing assembly lines.
Why choose cam follower track rollers over other bearing types?
Specifically engineered for track operations, transmission devices, and conveyor systems where direct rolling on raceways is required.
How to select cam follower sizes?
Determine by inner diameter, which specifies the compatible shaft diameter for installation.
Proper Installation Procedure
Step 1: Lubrication Apply lubricating grease or oil to the lubrication groove, ensuring complete coverage of rolling surfaces.
Step 2: Inner Ring Tight Fit Use a sleeve to press evenly onto the shaft, avoiding tilting during installation.
Step 3: Outer Ring Loose Fit Press directly into seat hole, using a copper rod to distribute impact force when hammering.
Purchasing Guide
- Load Bearing Capacity: Evaluate radial and axial load requirements as different models vary significantly
- Swing Angle: Consider models with larger deflection angles for applications requiring substantial angular movement
- Material Selection: Inner and outer ring materials directly impact wear resistance and operational lifespan
- Lubrication Method: Choose between pre-lubricated designs or regular maintenance models based on maintenance cycle preferences
