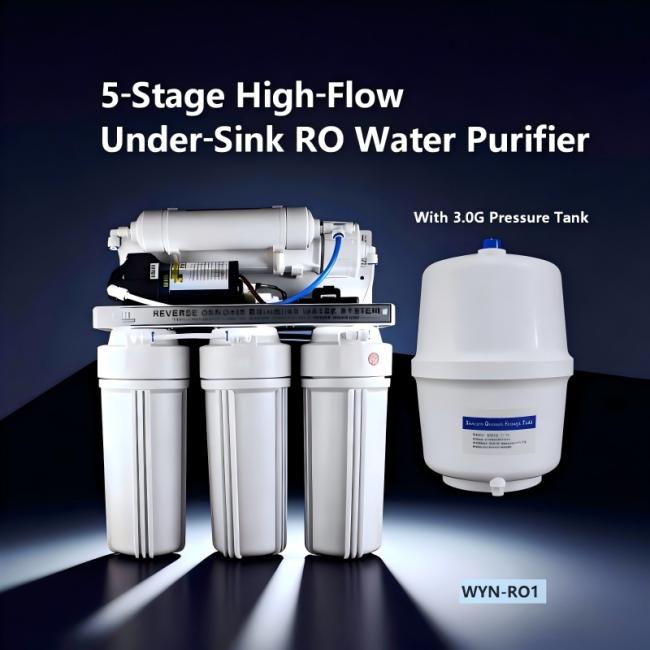

5 Stage RO Water Purifier With 3.0G Pressure Tank 50–400G/Day High Flow
This classic 5-stage RO water purification system delivers reliable performance with a flexible water flow range of 50–400G per day, suitable for municipal tap water treatment. Equipped with a 3.0G pressure storage tank, it ensures a steady supply of purified water for household use while maintaining energy efficiency at only 30W power consumption.
Featuring a compact design (380*180*440mm) and built with safety-focused construction (Class I electrical protection), this system provides a proven OEM/ODM-ready solution for homes seeking consistent, high-quality water purification with traditional reliability and modern efficiency.
The EcoFlow UF Water Purifier delivers exceptional performance with its innovative oversized filter design, achieving a high-speed 62L/h purified water flow that surpasses conventional systems by 2-3 times in efficiency. Operating without electricity and producing zero wastewater, it provides an environmentally sustainable solution for homes, hotels, offices, and schools.
Utilizing a refined 5-stage ultrafiltration process, the system effectively removes contaminants while preserving essential minerals for healthier drinking water. Its intelligent self-rinsing mechanism continuously cleans the UF membrane during operation, significantly extending the filter's lifespan. Compact, versatile, and engineered for long-term reliability, this OEM/ODM-ready water purification system meets stringent national water safety standards, offering a seamless blend of performance, economy, and eco-conscious design.
- Classic 5-stage RO filtration system
- 3.0G pressure tank for stable water supply
- Wide flow range (50–400G per day)
- Energy-efficient 30W operation
- Compact and space-saving design
- Safety-rated Class I electrical protection
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Applicable Water Source | Municipal Tap Water | Operating Water Pressure | 0.1–0.4 MPa |
| Water Temperature Range | 5–38°C | Ambient Temperature Range | 4–40°C (Indoor) |
| Relative Humidity | ≤90% at 25°C | Rated Voltage | 220V |
| Rated Power | 30W | Pure Water Flow Rate | 50–400 GPD |
| Electrical Protection | Class I | Product Dimensions | 380 * 180 * 440 mm |
| Filtration Stages | 5-Stage Filtration | Filter Structure | PP + UDF + PP + RO + UDF (Customizable) |

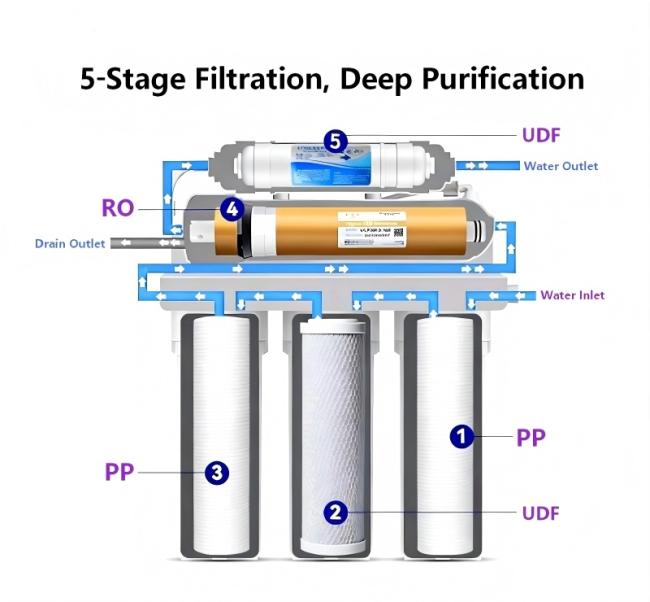

This diagram illustrates the complete water flow path of a 5-stage deep purification system:
- Water Inlet → PP (sediment filtration)
- → UDF (granular activated carbon adsorption)
- → PP (fine filtration)
- → RO (reverse osmosis membrane purification)
- → UDF (post-carbon polishing) → Water Outlet
A separate Drain Outlet channels wastewater away, ensuring efficient separation and delivering thoroughly purified water.
With over 20 years of OEM manufacturing experience, Viano offers comprehensive customization services for water purification products. We provide flexible options including logo, color, packaging, filter media, wastewater ratio, mineralization, and alkaline level adjustments to match your brand and market needs.
If you have additional customization requirements beyond these, our dedicated team is ready to collaborate and develop tailored solutions. Contact us to bring your unique product ideas to life with professional OEM support.

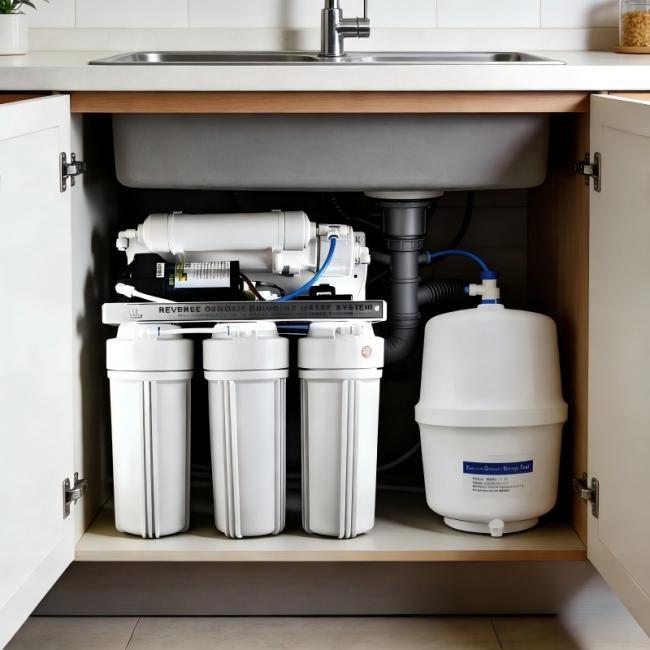

Designed for hassle-free installation, this system features a 3.0G pressure tank that ensures a steady and reliable water supply. Enjoy consistent water pressure and peace of mind with worry‑free performance—perfect for daily household use.
