Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width
Gi Ladder Cable Tray
The Bending Gi Ladder Cable Tray offers significant advantages:
1.Excellent Ventilation and Heat Dissipation: Prevents cable overheating.
2.High Strength and Load Capacity: The ladder design allows it to support very heavy cables over long spans with minimal support.
3.Easy Installation and Accessibility: Cables can be laid and accessed from any point along the tray effortlessly.
4.Durability and Long Service Life: The galvanized coating protects against rust and corrosion in demanding conditions like factories, power plants, petrochemical facilities, and outdoor installations.
Common Specifications
The specific specifications of the Gi Ladder Cable TrayType depend on the project.
| Material | Pre-galvanized Steel (PG), Hot-Dip Galvanized Steel (HDG) |
| Ladder Width |
150mm (6"),300mm (12"), 450mm (18"), 600mm (24"), 750mm (30"), 900mm (36") |
| Side Rail Height |
75mm(3"),100mm(4"),150mm (6"),200mm(8"),250mm(10") |
| Rung Spacing | 225 mm, 300 mm, 450 mm |
| Rung Shape/Type | Round, Square, "T-Bar" |
| Maximum Support Span | 1.5m, 3m, 4.5m, 6m, 9m |
| Accessories | Horizontal Bends (30°, 45°, 90°), Vertical Bends, Reducers, Crosses, Tees. |
| Support Methods | Center Hung (Rod & Clamp), Wall Mounted (Cantilever Brackets), Underfloor |
Typical Project Applications
The Bending Gi Ladder Cable Tray is the preferred choice in projects that demand high mechanical strength, long spans, heavy cable loads, and resilience in harsh environments.
| Industrial & Manufacturing Plants | Heavy Industries | Steel plants, cement plants, automotive manufacturing |
| Process Industries | Chemical plants, pharmaceutical facilities, paper mills. Here, the open design aids in dissipating heat and fumes from cables | |
| Power Generation & Distribution | Power Plants | Thermal, hydro, and nuclear power plants for routing massive power cables and control wiring |
| Substations & Switchyards | Both indoor and outdoor installations for supporting high-voltage cables. | |
| Oil & Gas and Petrochemical | Refineries, offshore platforms, and pipeline stations | The hot-dip galvanized coating provides crucial corrosion resistance against salty, humid, and chemically aggressive atmospheres. |
| Infrastructure & Transportation | Airports | For complex cabling networks spanning terminals and hangars |
| Railways & Metro Systems | In tunnels, depots, and stations for power, signaling, and communication cables. | |
| Tunnels & Bridges | Where robust support for life-safety and electrical systems is needed | |

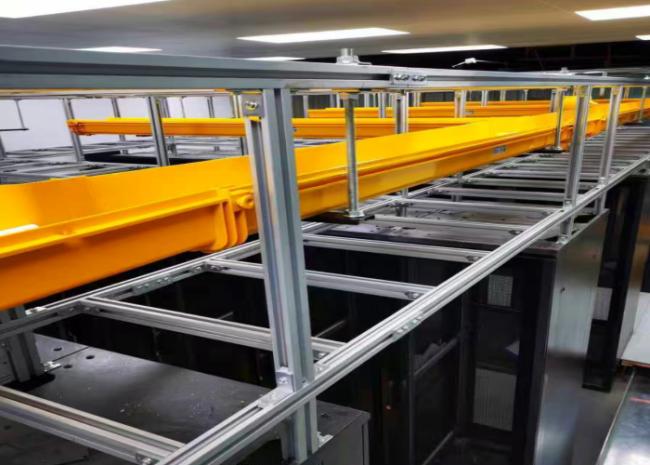

| Large-Scale Commercial & Public Facilities | Data Centers | ladder trays are used in the power distribution pathways and utility spaces for heavy busbars and large feeder cables |
| Hospitals | For main trunking routes of essential power systems | |
| Stadiums & Convention Centers | To manage vast amounts of power, lighting, and AV cabling over large open areas with long spans |
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we have been in this field for over 30 years.
2. Can you provide samples?
Yes, we can provide samples with our product catalog. (However, the express delivery cost will be borne by you.)
3. What payment terms do you accept?
Payment methods: Wire transfer (T/T), Letter of Credit (L/C), MoneyGram, Credit Card, PayPal, Western Union.
4. What are your shipping terms?
FOB, CNF, CIF, DDU, DDP.
5. What is your delivery time?
We always have ample stock of materials to meet your urgent needs. The fastest delivery time is only 10 days. After placing an order, we will send you the exact delivery time and production schedule.
