ODM 4-6mm Stainless Steel Wire Basket Tray AISI 304 or 316

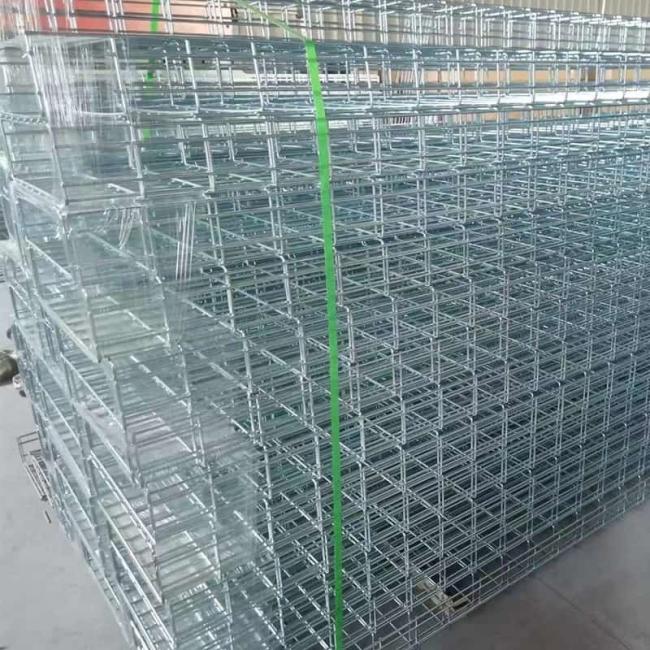

Bending Stainless Steel Wire Basket Tray is a modular, open-mesh cable support system constructed from welded longitudinal side wires and lateral rungs. It is designed for maximum ventilation, flexibility, and corrosion resistance in managing low-voltage and data cables.
Bending Stainless steel wire basket tray advantages
| Advantage | Key Benefit & Explanation |
| Maximum Ventilation & Heat Dissipation | Open-mesh design (>90% free area) allows unrestricted airflow, preventing cable overheating. This eliminates the need for ampacity derating, making it critical for IT/data center performance. |
| Superior Corrosion Resistance | Made from AISI 304 or 316 stainless steel, it withstands harsh, humid, and corrosive environments (washdown areas, coastal sites, chemical plants) without rusting or coating failure. |
| Ultimate Installation Flexibility | Can be easily cut, widened, or shaped on-site with simple tools, enabling fast adaptation to complex routes around obstacles—dramatically reducing installation time and cost. |
| Lightweight & Easy to Handle | Up to 70% lighter than solid steel tray, making it easier and safer to transport, handle, and install overhead. Reduces structural support requirements. |
| Full Visibility & Easy Access | Provides complete visual identification of cables. The open design allows for quick "lay-in" cable installation and effortless future modifications without disassembly. |
| Clean & Safe for Sensitive Areas | Non-magnetic, non-sparking, and low-smoke. Its smooth, easy-to-clean surface makes it ideal for hospitals, labs, food processing plants, and hazardous locations. |
Typical Projects of Bending Stainless Steel Wire Basket Tray
-
Data Centers with Complex Overhead Routing: Used to navigate dense overhead spaces filled with other services, creating custom-radius turns that avoid obstacles while strictly maintaining the minimum bend radius required for fiber optic and high-speed data cables.
-
Modern Architectural & Exposed Installations: Implemented in lobbies, museums, or high-end retail where the tray is visually exposed. Bent sections provide smooth, flowing curves or precise angles that follow architectural lines for a clean, intentional aesthetic.
-
Industrial Facilities with Obstacle-Rich Environments: Essential for routing control and data cables around large machinery, process equipment, and structural columns. On-site bending allows for custom, one-off solutions that fit unique spatial constraints in real time.
-
Retrofits and Renovation Projects: Critical for adding new cable infrastructure within existing buildings with irregular geometry and tight spaces. Bending provides the ultimate flexibility to snake trays through pre-defined paths where standard components will not fit.
-
Long Sweeping Horizontal or Vertical Transitions: Used to follow the contour of curved walls, ramps, or circular structures. Creating a gradual, single-piece sweep is more aesthetically pleasing and structurally sound than using multiple short, angled sections.
Common specifications, standards, and parameters of Bending Stainless steel wire basket cable tray.
| Specification/Parameter | Description |
| Material | Stainless Steel (usually SS304, SS316, SS316L) |
| Wire Diameter | Typically ranges from 3.5 mm to 6 mm, depending on load-bearing capacity |
| Tray Width | Usually 50 mm to 600 mm |
| Tray Height | Usually 50 mm to 200 mm |
| Tray Length | Customizable (standard lengths: 600 mm, 1200 mm, 2000 mm, etc.) |
| Load Capacity | Typically 15 kg to 100 kg per meter (depending on the wire thickness and tray size) |
| Surface Finish | Electro-polished, brushed, or satin finish |
| Standards Compliance | ASTM A240 (Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip) |
| Corrosion Resistance | Excellent due to the high chromium content in stainless steel |
| Mesh Design | Open mesh or welded mesh (e.g., 50 mm x 50 mm, 75 mm x 75 mm) |
| Edge Type | Rolled edges, flat edges, or smooth edges for safety |
| Bend Radius | Minimum bend radius typically 50-100 mm |
| Installation Type | Wall-mounted, ceiling-mounted, or free-standing with support brackets |
| Cable Tray Types | Single-sided, double-sided, or trough configurations |
| Fire Resistance | Typically compliant with fire safety standards such as UL 94V-0 (for non-combustibility) |
| Temperature Resistance | Typically operates well in temperatures ranging from -40掳C to 300掳C |
| Typical Use Cases | Electrical wiring, cable management, telecom, and network installations |
| Customization | Available in custom sizes and finishes, depending on the application |
Reputation and project experience of Bending Stainless Steel Wire Basket Tray:
Bending Stainless Steel Wire Basket Tray has a good industry recognition: Bending has been operating in the field of Cable Tray for 10 years and has received good reviews from domestic and international customers.
Bending Stainless Steel Wire Basket Tray has strong capabilities to ensure the smooth delivery of your project orders and provide reliable support for your orders.
Bending Stainless Steel Wire Basket Tray service and support:
Pre-sales support: During the quotation and design stages, Bending will respond sensitively and quickly provide you with the most suitable Cable Tray bridge frame project service plan and support under the guidance of professional technical engineers.
The professional production line, production, and inspection of Stainless Steel Wire Basket Tray ensure that your orders are consistently delivered on time, which has always been a good sign of the Bending Stainless Steel Wire Basket Tray
After-sales service for Stainless Steel Wire Basket Tray: We will promptly handle any related issues in the field of Stainless Steel Wire Basket Tray bridge, provide spare parts, or offer timely installation technology.
