Accurate Cutting Tool Measuring Instrument MXP Jupiter With E-Feedback Technology
Price:
US$17,000.00-18,000.00
MOQ:
≥1
Delivery Time:
30days
Brand:
MEAXPERT
Product Description
MXP Jupiter Tool Measuring System with E-Feedback Technology
Achieve precise tool measurement with the JUPITER600 system featuring advanced E-Feedback technology for superior accuracy and reliability.
Precision Tool Inspection System

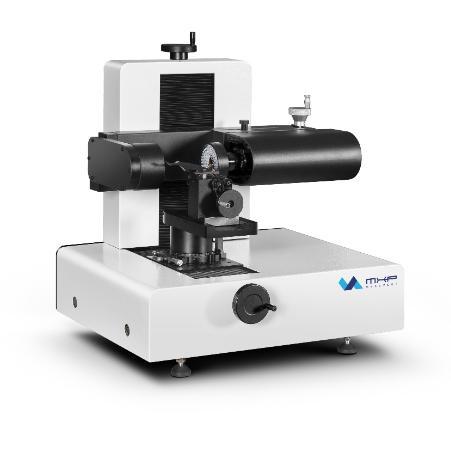

The JUPITER600 tool measuring system is a specialized precision measuring solution designed for comprehensive measurement of milling cutters, drills, and various cutting tools. Its compact design and stable construction enable deployment directly in production environments or dedicated inspection rooms.
Whether measuring individual elements such as external contours and angles, or performing complete geometric analysis of complex tool curves, the JUPITER600 delivers comprehensive and rapid measurement capabilities.
Technical Specifications
| Measuring range (mm) (X/Y/Z) | 80/60/60 |
| Rotation angle | 0 - 90° |
| Max tool diameter (mm) | 2 - 16 |
| Max tool length (mm) | 0 - 150 |
| Working distance (mm) | 80 |
| Lens | Electronic feedback signal zoom lens |
| CCD | 5M pixel digital camera |
| Linear scale resolution (μm) | 0.1 |
| Magnification | 25.2 - 140X |
| Field of view | 13.5*10 - 2.3*1.6mm |
| Measuring accuracy (μm) (X/Y) | 2.5 + L/100 |
| PC | ALL-IN-ONE PC system, Windows 10 OS, with 24' LCD monitor |
| Illumination | 8 section LED ring light, contour light and flexible auxiliary light, all software control and programmable |
| Input format | DXF |
| Output format | EXCEL, DXF |
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience. Our mission focuses on developing vision measurement systems that deliver accuracy, reliability, speed, and affordability.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. Choosing Meaxpert means choosing clarity and efficiency without lengthy negotiations.
Innovation and Development
We maintain significant investment in technology research and development, supported by dedicated software and hardware teams. Our hardware undergoes continuous improvement through weekly R&D meetings, enhancing stability, efficiency, and usability. Our software development focuses on specialized modules tailored to unique sub-industry requirements, simplifying vision measurement applications and addressing industry talent shortages.
Commitment to Quality
While perfection may be unattainable, we pursue it relentlessly. We maintain meticulous attention to detail from surface finishing to individual components. Our quality commitment begins with rigorous material inspections before production, continues with stringent process control during manufacturing, and concludes with thorough reliability testing and precise calibration before shipment.
