2D And 3D Vision Measuring Machine With 200mm Travel And 0.5µM Accuracy
Price:
US$3,700.00-4,200.00
MOQ:
≥1
Delivery Time:
30days
Brand:
MEAXPERT
Product Description

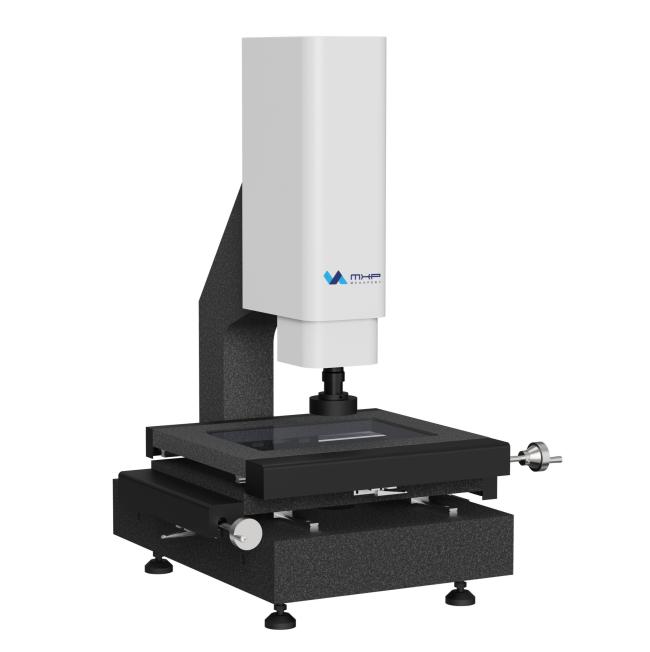

Professional Vision Measurement Equipment with 200mm Travel and 0.5µm Accuracy
The PLUTO Series semi-automatic vision measuring machine delivers exceptional precision and performance for industrial measurement applications.
Advanced Vision Measurement System
Configured with high-accuracy linear guideways, the PLUTO Series provides superior dynamic performance and user experience. Featuring 3-axis 0.0005mm high-resolution linear transducers and powerful programmable measuring software, this system enables comprehensive 2D and 3D measurement capabilities in a single machine.
- High-accuracy linear guideway configuration
- 3-axis 0.0005mm high-resolution linear transducers
- Powerful programmable measuring software
- Combined 2D and 3D measuring functions
- Automatic calculation of optical lens and touch probe offset
- Unified coordinate system for all measurement results
- 3D drawing output for reverse engineering applications
Technical Specifications
| Item | PL-2 | PL-3 | PL-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/540/860 | 665/670/915 | 724/855/915 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
Image and Measuring: 1.3M pixel digital camera
Lens: Manual dented zoom lens 0.7-4.5X
Magnification: 18-195X (Reference value - actual magnification varies with camera and lens combinations)
Field of View: 8.1~1.3mm (Reference value - actual FOV varies with camera and lens combinations)
Working Distance: 80mm
Linear Scale Resolution: 0.5μm
Driving System: X and Y axis manual control
Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light (Optional coaxial light)
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
