124cc Single-Cylinder Horizontal Engine Underbone Motorcycle with Foot-Electric Dual Start and 4-Speed Dual Clutch

Price Negotiable
Price: Price negotiable
MOQ: 100
Delivery Time: 5-12 weeks
Brand: ZFYC
Product Description

Reject mediocre power and unlock the ultimate experience of commuting and travel! Equipped with a 124cm³ single-cylinder horizontal engine, this model delivers a maximum power of 7.1Kw and a strong torque of 9.8N·m with a 9.4:1 golden compression ratio. The maximum torque can be output at 4500rpm, ensuring quick start without lag, and it is effortless to shuttle in the urban area and climb obstacles. With a maximum climbing ability of ≥27°, it can easily conquer complex road conditions.

Number of cylinders and Engine angle: Single-cylinder, horizontal
BorexStroke  : 57x48.8
Displacement: 124cm3
Compression : 9.4:1
Output, Max(Kw/Rpm) : 7.1/(7500±1.5%)
Torque, Max(N.M/Rpm) : 9.8/(4500±500)
Ignition : Communication CDI
Starting System : Foot electric start
Magneto : Grade DC
Gear and Clutch : 4/Automatic separation
Transmission mode : Chain drive
Gear Box Ratios : 1° 2.9167
2° 1.857
3° 1.33
4° 1.05
 Primary /Final ratio : 3.61/2.714
Chassis
Suspension/Front : Smooth hydraulic fork
Suspension/Rear :  Spring Shock Absorber
Brakes/Front : Expandable Shoe / Drum
Brakes/Rear : Expandable Shoe / Drum
Tires/Front: 80/90-17
Tires/Rear : 1990/10/17
Wheel base/Front :  aluminum wheel
Wheel base/Rear :  aluminum wheel
Shelves: Rear Shelf
middle shelf: NO
Dimensions
LxWxH : 1990mmx690mmx1090mm
Wheelbase : 1250mm
Seat Height : 760mm
Min ground clearance : 120mm
Net  Weight : 101kg
Max Load: 150kg
Max Speed(km/h) : 80km/h
Climbing Ability : ≥27°
Fuel Tank Capacity : 3.1L
Helmet Box Capacity : Half helmet /half-face /half helmet
Headlight : Headlamp 12V35W/35W     Optional  Led-12V8w
Taillight : Led 1.2w(Brake light)/1.2w(Position light), 21 w /  5w
Fr indecators : Dynamic  10w,LED 0.8 w
Rr Indicators : Dynamic  10w,LED 0.8 w
Logo Lihgt : 0.3w
Battery : 12V4Ah ,Gel Battery
CARGADOR : USB-2A

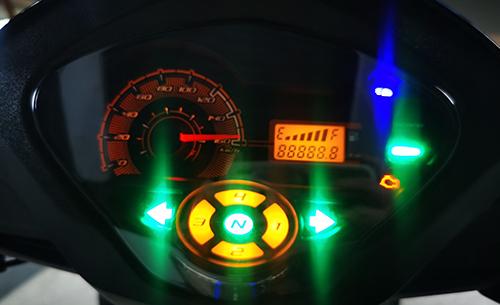

Multimedia: MP3


The foot-electric dual-start design eliminates the difficulty of starting in cold winters, allowing both new and experienced riders to start with one click and ride smoothly. Four-speed protection + manual and automatic dual clutch, combined with precise chain transmission and scientific gear ratio, ensure smooth shifting without frustration and flexible handling that is easy to get started.


The 101kg lightweight body and 760mm user-friendly seat height make it easy for short riders to control, with no pressure in turning around and parking. Front disc and rear drum brakes combined with dual shock absorbers ensure stable braking and soft shock absorption, maintaining body stability even on bumpy roads for safer travel. The 3.1L fuel tank balances economy and practicality, paired with a low-fuel-consumption engine for worry-free battery life; USB charger + MP3 multimedia configuration allows charging and listening to music while riding, with full details.


Whether it is daily commuting, short-distance travel, or occasional outings, this car can crush its peers with hard-core strength, interpret "practicality is king" with extreme performance, and make every ride efficient and comfortable.
