20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction
Price:
3000~9000 USD
MOQ:
1 SET
Delivery Time:
25 Days
Brand:
HUAGONG
Product Description

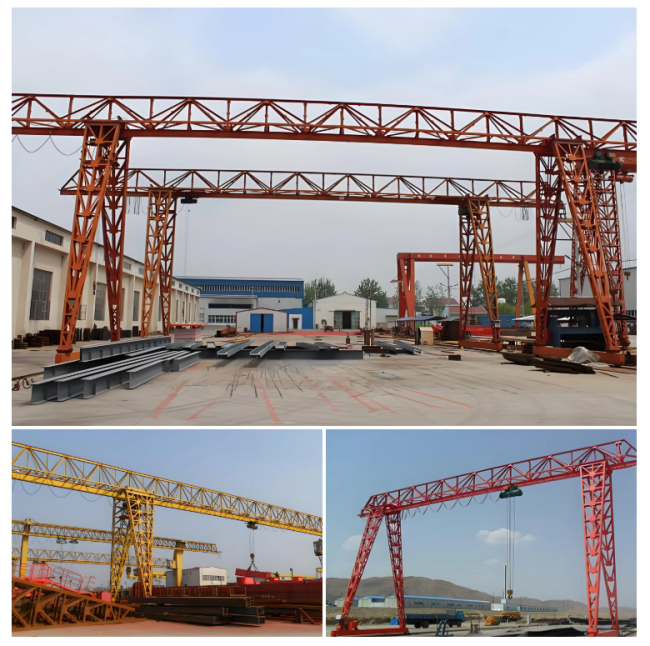

20-Ton Remote Control Adjustable Height Gantry Crane
MH SINGLE TRUSS GANTRY CRANE
Simple results, non-standard customization, strong adaptability! !

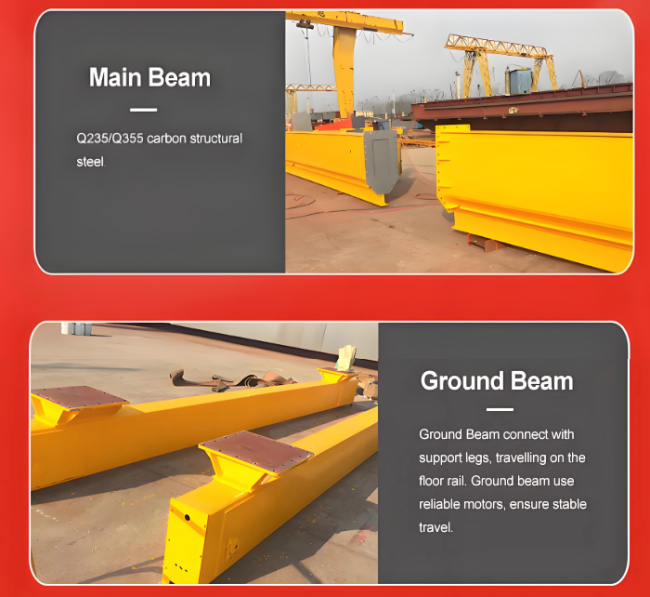

Main Beam
Q235/Q355 carbon structural steel
Q235/Q355 carbon structural steel
Ground Beam
Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.
Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.

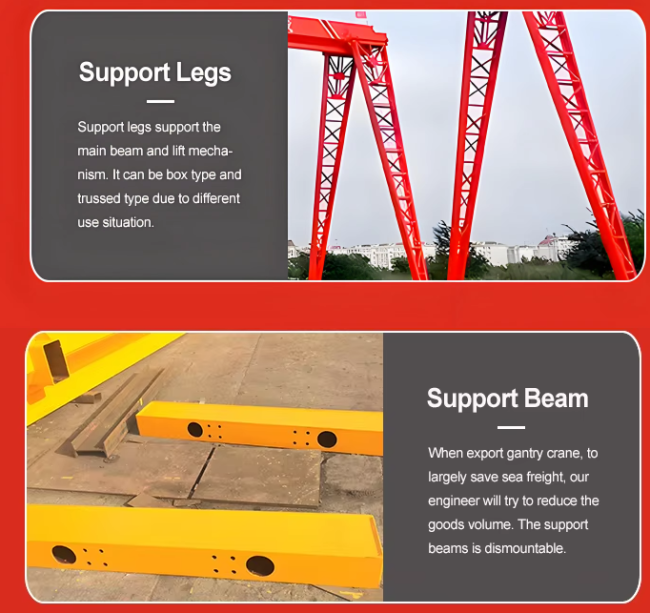

Support Legs
Support legs support themain beam and lift mecha-nism. It can be box type andtrussed type due to differentuse situation.
Support legs support themain beam and lift mecha-nism. It can be box type andtrussed type due to differentuse situation.
Support Beam
When export gantry crane, tolargely save sea freight, ourengineer will try to reduce thegoods volume. The supportbeams is dismountable.
When export gantry crane, tolargely save sea freight, ourengineer will try to reduce thegoods volume. The supportbeams is dismountable.

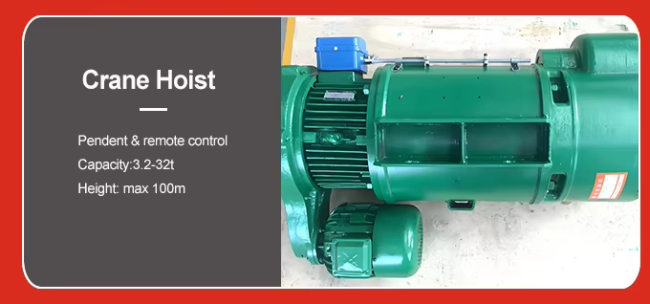

Crane Hoist
Pendent & remote control Capacity:3.2-32t Height max 100m
Pendent & remote control Capacity:3.2-32t Height max 100m
Key Features
- Simple and compact structural design
- Minimal wind surface area for stable operation
- Lightweight construction with strong 20-ton lifting capacity
- Exceptional operational stability and performance
- Reduced daily maintenance requirements
- Cost-effective solution for plant and workshop construction
- Dual control options: ground control and remote control
Industrial Applications
- Logistics Warehousing: Ideal for efficient material handling in warehouse environments with optimized space utilization
- Manufacturing Plants: Perfect for parts handling in production workshops, offering flexible operation in limited spaces
- Port Terminals: Suitable for handling and stacking small containers, particularly effective for temporary work sites or smaller terminal operations

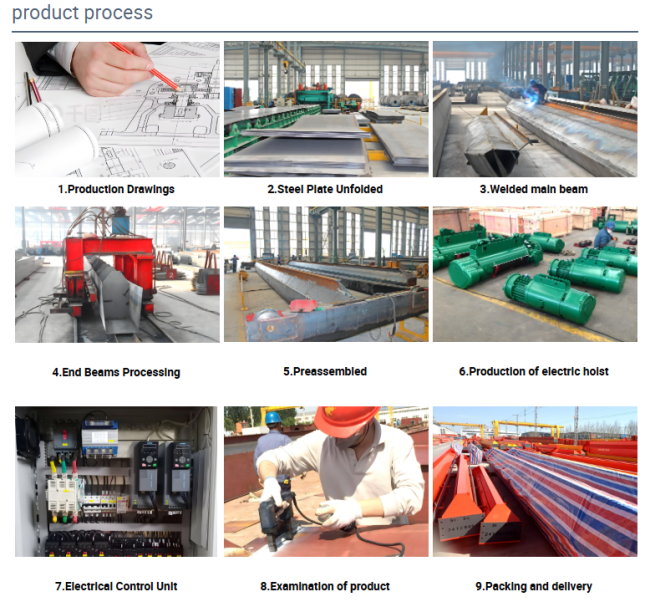

product process:
1.Production Drawings
4.End Beams Processing
7.Electrlcal Control Unlt
2.Steel Plate Unfolded
5.Preassembled
8.Examination of product
3.Welded main beam
6.Productlon of electrlc holst
9.Packing and dellvery
4.End Beams Processing
7.Electrlcal Control Unlt
2.Steel Plate Unfolded
5.Preassembled
8.Examination of product
3.Welded main beam
6.Productlon of electrlc holst
9.Packing and dellvery

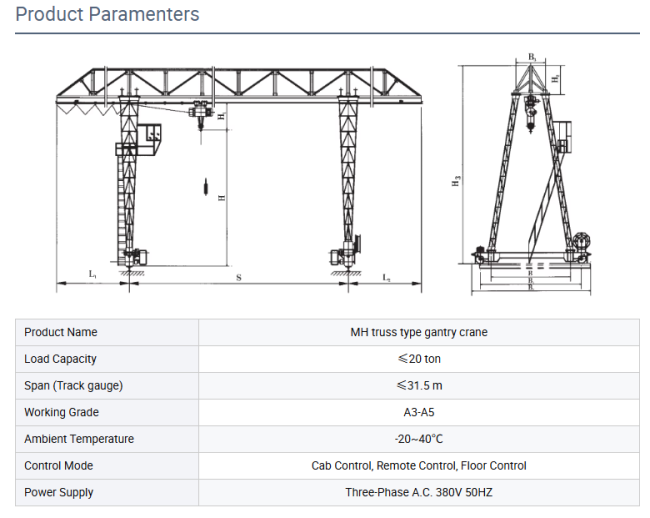

| Product Name | MH truss type gantry crane |
| Load Capacity | ≤20 ton |
| Span (Track gauge) | ≤31.5m |
| Working Grade | A3-A5 |
| Ambient Temperature | -20~40°C |
| Control Mode | Cab Control, Remote Control, Floor Control |
| Power Supply | Three-Phase A.C. 380V 50HZ |
