Remote Control Electric Chain Hoist with 20t Load Capacity and OEM Customization for Industrial Use
Price:
CN¥2,090.58/sets >=13 sets
MOQ:
1 set
Delivery Time:
7 days
Product Description
OEM Remote Control Electric Hoist 3 Ton Electric Chain Hoist
This heavy-duty electric chain hoist is designed for various industrial environments with a maximum lifting capacity of 3 tons and remote control operation.

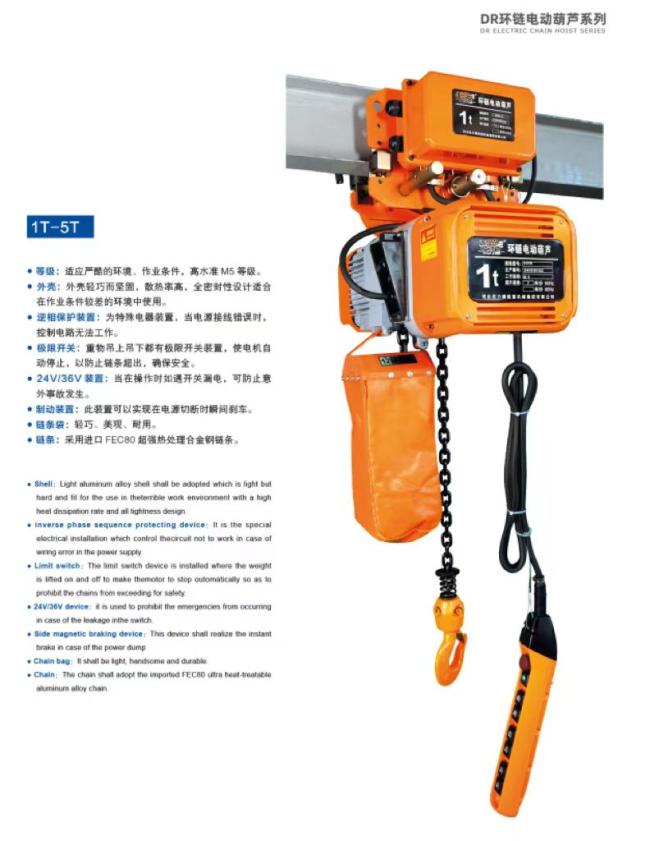

Product Overview
1T–5T
- Grade: Adapts to harsh environments and working conditions, with a high-standard M5 rating.
- Housing: Lightweight yet robust housing with high heat dissipation efficiency; fully sealed design suitable for use in harsh working environments.
- Phase Reversal Protection: A special electrical device that prevents the control circuit from operating if the power supply is wired incorrectly.
- Limit Switches: Limit switches are installed for both upward and downward lifting of heavy loads, automatically stopping the motor to prevent chain overtravel and ensure safety.
- 24V/36V Safety Device: Prevents accidents in case of switch leakage during operation.
- Brake System: Enables instant braking when the power supply is cut off.
- Chain Bag: Lightweight, aesthetic, and durable.
- Chain: Imported FEC80 super-strength heat-treated alloy steel chain.

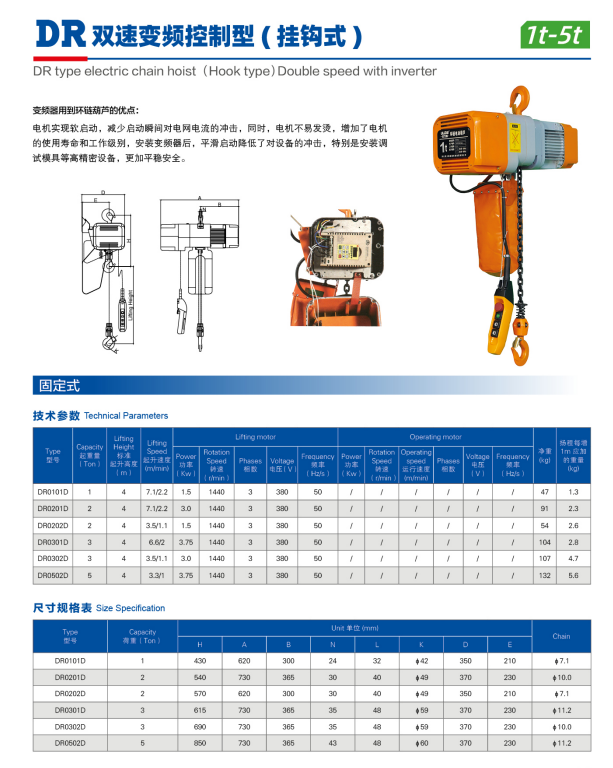

DR type electric chain hoist (Hook type) Double speed with inverter
Advantages of using a frequency converter on electric chain hoists:
The motor realizes soft start, reducing instantaneous current impact on the power grid. Meanwhile, the motor runs with less heat generation, extending service life and improving working class. Smooth start lowers mechanical impact on the whole equipment. It is especially stable and safe for high-precision operations such as mold installation and commissioning.
The motor realizes soft start, reducing instantaneous current impact on the power grid. Meanwhile, the motor runs with less heat generation, extending service life and improving working class. Smooth start lowers mechanical impact on the whole equipment. It is especially stable and safe for high-precision operations such as mold installation and commissioning.

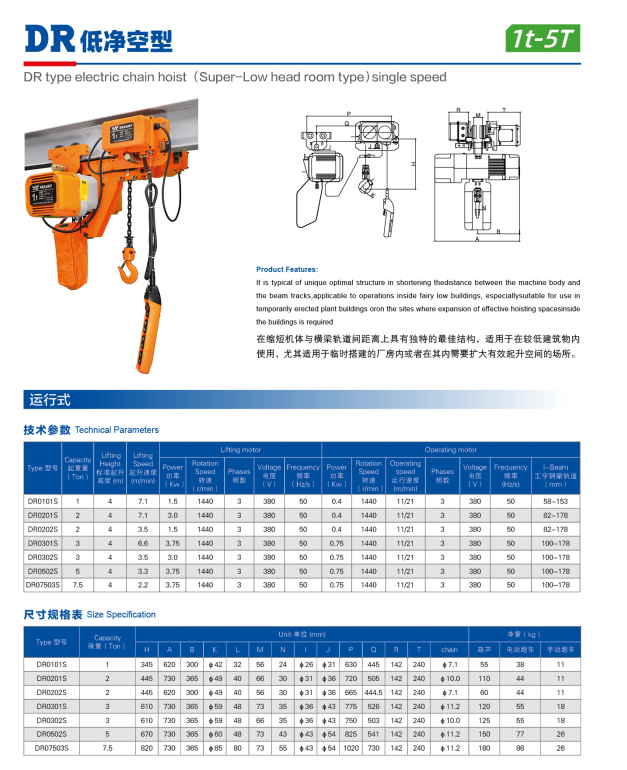

DR type electric chain hoist (Super-Low head room type) single speed
It features an optimized unique structure that minimizes the distance between the hoist body and beam rail. It is ideal for low-height buildings, especially temporary workshops and working sites requiring larger effective lifting space.
Technical Specifications
| Specification | Value |
|---|---|
| Place of Origin | Henan |
| Warranty | 1 Year |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Max. Lifting Load | 20t |
| Max. Lifting Height | 25M, 7.5m, 6m, 20M |
| Core Components | Bearing, Gear |
| Product Name | Electric Chain Hoist Electric Trolley Lifting |
| Condition | New 100% |
| OEM | Available |
| Usage | Construction Hoist, Mining Hoist, Bridge Crane |
| Voltage | Customer's Request |
| Color | Customer's Request |
Company Profile
Production Line
Exhibition
Certifications
Product Packaging
Frequently Asked Questions
What information should I provide when inquiring?
- Crane Capacity
- Crane Span
- Lifting Height
- Work Duty (A3/A4/M3...)
- Traveling Length
- Control Method: Standard operating methods include remote control with push buttons or cabin control with joystick
- Any spare parts like rails, bus-bar?
- Local Power Supply
- Quantity
- Lifting Object
- Destination Port
Can this type work in hazardous environments?
Yes! We can customize hoists for acid-proof or explosion-proof applications to suit hazardous environments.
Can you provide serious lifting tools?
Yes, we can provide any lifting tools such as lift sling belts, lift clamps, grabs, magnets, or other special equipment as per your requirements.
How do you guarantee the quality?
We maintain constant quality checks during the manufacturing process and conduct strict equipment testing before shipment. We provide quality certificates with all our products.
After-Sale Service
- Installation service for overhead cranes available with video tutorial support for the entire installation process
- 7/24 remote assistance for crane installation guidance and commissioning
- We welcome customer suggestions regarding pricing and products
- For any questions, please contact us freely by email or telephone
