25T Lifting Capacity Durable Crane Hook with Safety Latch for Crane Lifting Applications

Price Negotiable
Price: CN¥1,393.72/sets >=1 sets
MOQ: 1 set
Delivery Time: Negotiable
Brand: HUAGONG
Product Description
25T Lifting Capacity Hook Single Sheave Crane Hook
Durable solution for crane lifting applications
Product Overview
25T crane hook assembly overview Close-up view of crane hook mechanism Crane hook in operational environment
Crane hooks are critical components in lifting machinery that bear the entire weight of loads. Any malfunction can lead to serious accidents. At HGcranes, we manufacture crane hooks using strict processing technologies, high-quality materials, proper forging, precision machining, and heat treatment to ensure stable quality and reliability.
The crane lifting hook is a standard device for grabbing and lifting loads used by hoists and cranes. Our hooks are equipped with safety latches to securely hold wire rope slings, chains, or ropes in position, ensuring operational safety. With built-in pulleys, the crane hook group effectively amplifies lifting force for enhanced performance.
Product Parameters
Technical specifications and parameters of 25T crane hook Detailed parameter diagram for crane hook
Lifting Capacity

Total Height

(mm)

Effective Height

(mm)

Total Width

(mm)

Wheel Width

L1(mm)

Pulley Dia.

D1(mm)

Well Iner Radius

D2(mm)

Groove Dia.

φ(mm)

HookShell Dia.

D(mm)

Total
Weight(kg)
3.2t 394 345 200 140 168 134 6-8 165 23
5t 462 400 230 167 195 162 8 204 31
10t 530 470 287 202 245 214 11 263 55
16t 700 620 340 232 355 298 15 370 100
20t 760 670 340 265 355 298 15 370 133
Key Features
Enhanced pull plate design feature Precision bearing assembly feature
  • Widened and thickened pull plate made of high-quality steel for safety, reliability, and durability
  • Rounded cover with fine workmanship and attractive appearance
  • High-thrust bearing assembly for lightweight and flexible operation
  • Hook and beams manufactured from forged nuts to ensure high product strength
  • Precision cast steel wheel protects wire rope and extends service life
Additional Product Views

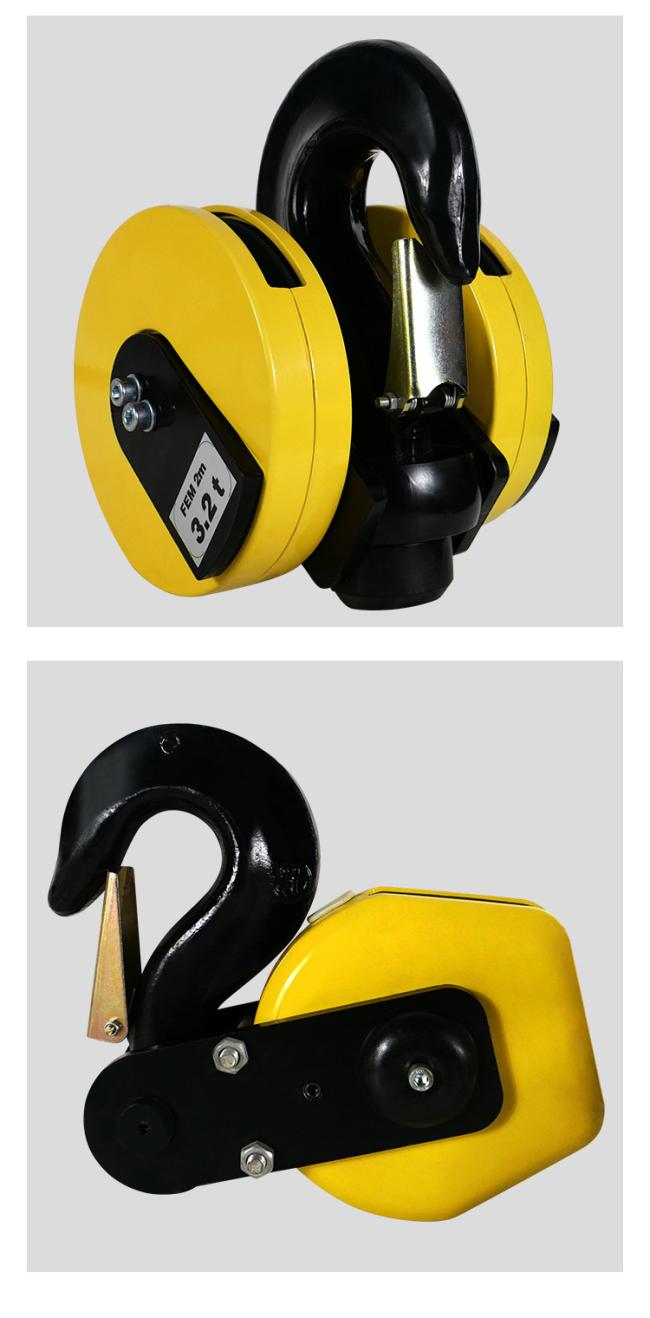

Side view of crane hook assembly Top view of crane hook mechanism Detailed view of hook safety latch Close-up of pulley system Manufacturing quality inspection view Hook assembly in testing environment Structural integrity demonstration Load bearing capacity test Final product quality assurance Packaged crane hook ready for shipment
