Single Beam Overhead Crane with Metallurgy Wire Rope Electric Hoist and Wireless Remote Control for 20T Max Lifting Load
Price:
CN¥39,024.16/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
HG CRANE
Product Description
LDY Type Metallurgical Electric Single-Beam Overhead Crane
A heavy-duty single-beam overhead crane specifically designed for steel mill and metallurgical applications, incorporating specialized wire rope electric hoists for efficient material handling operations.
Product Overview
The LDY type metallurgical electric single-beam crane is a specialized space transportation system used in conjunction with electric hoists. This industrial crane is engineered for lifting and transporting heavy objects in metallurgy and foundry environments, serving as a critical tool for enhancing productivity in modern industrial enterprises.
Structural Components
Bridge Frame: Supports and enables longitudinal movement of loads, consisting of metal structure and running mechanism
Metal Structure: Includes main beam, end beam, and their connections
Running Mechanism: Comprises driving device, transmission device, braking device, and wheel group

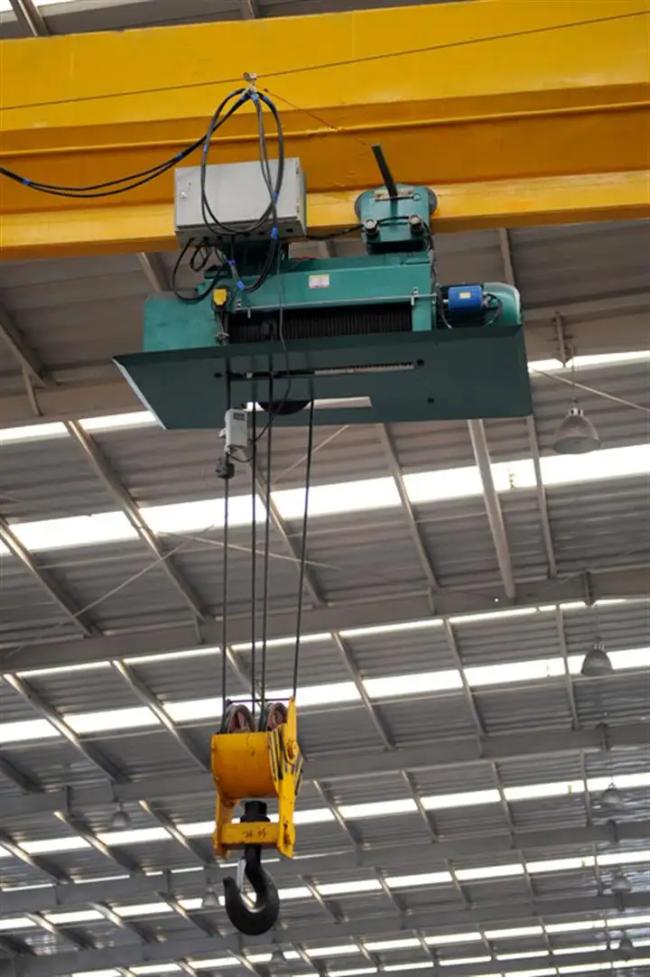

Metallurgical Electric Hoist: Handles lifting and lateral moving operations
Electrical System: Includes main circuit and control circuit
Metal Structure: Includes main beam, end beam, and their connections
Running Mechanism: Comprises driving device, transmission device, braking device, and wheel group
Metallurgical Electric Hoist: Handles lifting and lateral moving operations
Electrical System: Includes main circuit and control circuit
Key Features
- Heavy-duty double beam overhead steel factory crane construction
- Specifically designed for steel plant applications
- Smooth starting and stopping operation
- Safe and reliable traveling with extended service life
- Heat-resistant electrical equipment and wiring systems
- Crane drive: IP54 or IP44 protection, level F insulation
- High quality construction with competitive pricing
Technical Parameters
| 分类 | 参数项 | 规格 |
| 起重机运行机构crane travelling mechanism | 运动速度 m/mintravelling speed | 20 / 30 |
| 速比 speed ratio | 58.95 / 39.42 | |
| 电动机 Motor - 型号 type | 锥形鼠笼 cone squirrel-cage | |
| 电动机 Motor - 功率 (kw) power | 0.8×2,1.5×2 | |
| 电动机 Motor - 转速 (r/min) rotational speed | 1380 | |
| 起升机构 (电动葫芦) 及运行机构lifting mechanism (electric hoist)&electric hoist travelling mechanism | 电动葫芦形式 model of electric hoist | YHₐ型 YHₐ model |
| 起升速度 (m/min) lifting speed | 8,7 | |
| 起升高度 H (m) lifting height | 9,12,15,18,20 | |
| 运动速度 (m/min) travelling speed | 20 | |
| 电动机 motor | 锥形鼠笼型 cone squirrel-cage model | |
| 工作制度 working system | - | 中级 intermediate Jc=25% |
| 电源 electric current | - | 380V 50Hz three-phase |
| 车轮直径 wheel diameter | - | φ270,φ400 |
| 轨道面宽 width of trail | - | 37~70 |
|
起重量 Lifting capacity (t) |
跨度Span S (m) | 起重机总重(地面操作)Crane total weight G (t) |
最大轮压 Max. wheel load Rmax (kN) |
最小轮压 Min. wheel load Rmin (kN) |
踏面至主梁顶 H1 (mm) |
踏面至吊钩中心 H2 (mm) |
端梁轮距 W (mm) | 端梁总长 B (mm) | 吊钩左极限 C1 (mm) | 吊钩右极限 C2 (mm) |
| 2 | 7.5 | 1.92 | 16.1 | 4.1 | 530 | 1270 | 1500 | 2000 | 871 | 1291 |
| 8 | 1.97 | 16.4 | 4.2 | 530 | 1270 | 1500 | 2000 | 871 | 1291 | |
| 8.5 | 2.03 | 16.6 | 4.3 | 530 | 1270 | 1500 | 2000 | 871 | 1291 | |
| 9 | 2.09 | 16.8 | 4.5 | 530 | 1270 | 1500 | 2000 | 871 | 1291 | |
| 9.5 | 2.14 | 17 | 4.6 | 530 | 1270 | 1500 | 2000 | 871 | 1291 | |
| 10 | 2.19 | 17.2 | 4.7 | 530 | 1270 | 1500 | 2000 | 871 | 1291 | |
| 10.5 | 2.25 | 17.4 | 4.9 | 530 | 1270 | 1500 | 2000 | 871 | 1291 | |
| 11 | 2.3 | 17.6 | 5 | 530 | 1270 | 1500 | 2000 | 871 | 1291 | |
| 11.5 | 2.41 | 18 | 5.3 | 580 | 1270 | 2000 | 2500 | 871 | 1291 | |
| 12 | 2.47 | 18.2 | 5.4 | 580 | 1270 | 2000 | 2500 | 871 | 1291 | |
| 12.5 | 2.53 | 18.3 | 5.5 | 580 | 1270 | 2000 | 2500 | 871 | 1291 | |
| 13 | 2.58 | 18.5 | 5.7 | 580 | 1270 | 2000 | 2500 | 871 | 1291 | |
| 13.5 | 2.64 | 18.7 | 5.8 | 580 | 1270 | 2000 | 2500 | 871 | 1291 | |
| 14 | 2.7 | 18.9 | 5.9 | 580 | 1270 | 2000 | 2500 | 871 | 1291 | |
| 14.5 | 3.18 | 20.1 | 7.2 | 660 | 1290 | 2000 | 2500 | 871 | 1291 | |
| 15 | 3.25 | 20.3 | 7.3 | 660 | 1290 | 2000 | 2500 | 871 | 1291 | |
| 15.5 | 3.32 | 20.5 | 7.5 | 660 | 1290 | 2500 | 3000 | 871 | 1291 | |
| 16 | 3.39 | 20.7 | 7.7 | 660 | 1290 | 2500 | 3000 | 871 | 1291 | |
| 16.5 | 3.46 | 20.9 | 7.9 | 660 | 1290 | 2500 | 3000 | 871 | 1291 | |
| 17 | 3.53 | 21.1 | 8 | 660 | 1290 | 2500 | 3000 | 871 | 1291 |
|
起重量Lifting capacity (t)
|
跨度Span S (m)
|
起重机总重(地面操作)Crane total weight G (t)
|
最大轮压Max. wheel load Rmax (kN)
|
最小轮压Min. wheel load Rmin (kN)
|
踏面至主梁顶 H1 (mm)
|
踏面至吊钩中心 H2 (mm)
|
端梁轮距 W (mm)
|
端梁总长 B (mm)
|
吊钩左极限 C1 (mm)
|
吊钩右极限 C2 (mm)
|
|
10
|
22
|
9.31
|
75.4
|
20.1
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
22.5
|
9.48
|
75.9
|
20.5
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
|
23
|
12.44
|
83.4
|
27.9
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
|
23.5
|
12.65
|
84.1
|
28.5
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
|
24
|
12.83
|
84.6
|
28.9
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
|
24.5
|
13.04
|
85.3
|
29.4
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
|
25
|
13.23
|
85.8
|
29.9
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
|
25.5
|
13.44
|
86.4
|
30.4
|
1200
|
2590
|
3500
|
4200
|
1293
|
1893
|
|
|
26
|
14.53
|
89.2
|
33.1
|
1300
|
2600
|
4000
|
4700
|
1293
|
1893
|
|
|
26.5
|
14.75
|
89.9
|
33.7
|
1300
|
2600
|
4000
|
4700
|
1293
|
1893
|
|
|
27
|
14.94
|
90.4
|
34.1
|
1300
|
2600
|
4000
|
4700
|
1293
|
1893
|
|
|
27.5
|
15.17
|
91.1
|
34.7
|
1300
|
2600
|
4000
|
4700
|
1293
|
1893
|
|
|
28
|
15.37
|
91.6
|
35.2
|
1300
|
2600
|
4000
|
4700
|
1293
|
1893
|
|
|
28.5
|
15.57
|
92.2
|
35.7
|
1300
|
2600
|
4000
|
4700
|
1293
|
1893
|
注:如有其他要求,请在订货时特别提出.我公司保留在无需任何通知的情况下对以上信息进行变更的权利.
Note: Other requirements please put forward when you place an order.We reserve the right to change above information without any
notice.
notice.
| 起重量Lifting capacity (t) | 跨度Span S (m) | 起重机总重(地面操作)Crane total weight G (t) | 最大轮压Max. wheel load Rmax (kN) | 最小轮压Min. wheel load Rmin (kN) | 踏面至主梁顶 H1 (mm) | 踏面至吊钩中心 H2 (mm) | 端梁轮距 W (mm) | 端梁总长 B (mm) | 吊钩左极限 C1 (mm) | 吊钩右极限 C2 (mm) |
| 2 | 17.5 | 3.74 | 21.7 | 8.5 | 835 | 1295 | 3000 | 3800 | 871 | 1291 |
| 18 | 3.81 | 21.9 | 8.7 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 18.5 | 3.88 | 22.1 | 8.9 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 19 | 3.95 | 22.3 | 9.1 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 19.5 | 4.03 | 22.5 | 9.3 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 20 | 4.79 | 24.1 | 11.2 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 20.5 | 4.88 | 24.6 | 11.4 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 21 | 4.96 | 24.9 | 11.6 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 21.5 | 5.06 | 25.1 | 11.8 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 22 | 5.14 | 25.2 | 12 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 22.5 | 5.23 | 25.6 | 12.2 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 23 | 5.35 | 26.1 | 12.4 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 23.5 | 5.64 | 26.6 | 12.8 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 24 | 5.73 | 26.9 | 13.3 | 835 | 1295 | 3000 | 3800 | 871 | 1291 | |
| 24.5 | 5.82 | 27.1 | 13.7 | 850 | 1310 | 3500 | 4000 | 871 | 1291 | |
| 25 | 5.91 | 27.3 | 13.9 | 850 | 1310 | 3500 | 4000 | 871 | 1291 | |
| 25.5 | 6.01 | 27.6 | 14.2 | 850 | 1310 | 3500 | 4000 | 871 | 1291 | |
| 26 | 7.38 | 31.5 | 18.1 | 940 | 1370 | 4000 | 4500 | 819 | 1291 | |
| 26.5 | 7.7 | 31.8 | 18.4 | 940 | 1370 | 4000 | 4500 | 819 | 1291 | |
| 27 | 7.89 | 32.1 | 18.7 | 940 | 1370 | 4000 | 4500 | 819 | 1291 | |
| 27.5 | 7.93 | 32.4 | 19 | 940 | 1370 | 4000 | 4500 | 819 | 1291 | |
| 28 | 8.03 | 32.7 | 19.2 | 940 | 1370 | 4000 | 4500 | 819 | 1291 | |
| 28.5 | 8.16 | 33 | 19.5 | 940 | 1370 | 4000 | 4500 | 819 | 1291 | |
| 3 | 7.5 | 2.27 | 18.9 | 4.6 | 580 | 1480 | 2000 | 2500 | 842 | 1310 |
| 8 | 2.31 | 19.3 | 4.7 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 8.5 | 2.4 | 19.6 | 4.9 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 9 | 2.46 | 19.9 | 5 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 9.5 | 2.53 | 20.2 | 5.2 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 10 | 2.59 | 20.5 | 5.3 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 10.5 | 2.66 | 20.8 | 5.5 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 11 | 2.72 | 21 | 5.6 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 11.5 | 2.91 | 21.6 | 6.1 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 12 | 2.98 | 21.8 | 6.3 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 12.5 | 3.05 | 22.1 | 6.4 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 13 | 3.12 | 22.3 | 6.6 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 13.5 | 3.19 | 22.6 | 6.8 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 14 | 3.26 | 22.8 | 6.9 | 580 | 1480 | 2000 | 2500 | 842 | 1310 | |
| 14.5 | 3.48 | 23.4 | 7.5 | 735 | 1475 | 2500 | 3000 | 842 | 1310 | |
| 15 | 3.55 | 23.7 | 7.7 | 735 | 1475 | 2500 | 3000 | 842 | 1310 | |
| 15.5 | 3.61 | 23.9 | 7.9 | 735 | 1475 | 2500 | 3000 | 842 | 1310 | |
| 16 | 3.7 | 24.1 | 8 | 735 | 1475 | 2500 | 3000 | 842 | 1310 | |
| 16.5 | 3.77 | 24.4 | 8.2 | 735 | 1475 | 2500 | 3000 | 842 | 1310 | |
| 17 | 3.84 | 24.6 | 8.4 | 735 | 1475 | 2500 | 3000 | 842 | 1310 |
| 起重量Lifting capacity (t) | 跨度Span S (m) | 起重机总重(地面操作)Crane total weight G (t) | 最大轮压Max. wheel load Rmax (kN) | 最小轮压Min. wheel load Rmin (kN) | 踏面至主梁顶 H1 (mm) | 踏面至吊钩中心 H2 (mm) | 端梁轮距 W (mm) | 端梁总长 B (mm) | 吊钩左极限 C1 (mm) | 吊钩右极限 C2 (mm) |
| 5 | 17.5 | 5.3 | 42.5 | 11.8 | 880 | 1900 | 2000 | 3000 | 1292 | 1893 |
| 18 | 5.4 | 42.9 | 12 | 880 | 1900 | 2000 | 3000 | 1292 | 1893 | |
| 18.5 | 5.61 | 43.3 | 12.2 | 880 | 1900 | 2000 | 3000 | 1292 | 1893 | |
| 19 | 5.69 | 43.6 | 12.5 | 880 | 1900 | 2000 | 3000 | 1292 | 1893 | |
| 19.5 | 5.72 | 44 | 12.8 | 880 | 1900 | 2000 | 3000 | 1292 | 1893 | |
| 20 | 6.54 | 46.5 | 14.8 | 920 | 1979 | 3000 | 3500 | 1298 | 1893 | |
| 20.5 | 6.65 | 46.5 | 15.1 | 920 | 1979 | 3000 | 3500 | 1298 | 1893 | |
| 21 | 6.76 | 46.9 | 10.3 | 920 | 1979 | 3000 | 3500 | 1298 | 1893 | |
| 21.5 | 6.89 | 47.3 | 15.7 | 920 | 1979 | 3000 | 3500 | 1298 | 1893 | |
| 22 | 7 | 47.6 | 15.9 | 920 | 1979 | 3000 | 3500 | 1298 | 1893 | |
| 22.5 | 7.13 | 48 | 10.2 | 920 | 1979 | 3000 | 3500 | 1298 | 1893 | |
| 23 | 8.26 | 51.9 | 20.1 | 1065 | 1865 | 3500 | 4000 | 1298 | 1893 | |
| 23.5 | 8.38 | 52.4 | 20.5 | 1065 | 1865 | 3500 | 4000 | 1298 | 1893 | |
| 24 | 8.51 | 52.8 | 20.8 | 1065 | 1865 | 3500 | 4000 | 1298 | 1893 | |
| 24.5 | 8.68 | 53.3 | 21.2 | 1065 | 1865 | 3500 | 4000 | 1298 | 1893 | |
| 25 | 8.8 | 53.6 | 21.5 | 1065 | 1865 | 3500 | 4000 | 1298 | 1893 | |
| 25.5 | 8.96 | 54.1 | 21.9 | 1065 | 1865 | 3500 | 4000 | 1298 | 1893 | |
| 26 | 12.74 | 62.6 | 30.2 | 1160 | 1809 | 4000 | 4700 | 1298 | 1883 | |
| 26.5 | 12.94 | 61 | 30.7 | 1160 | 1809 | 4000 | 4700 | 1298 | 1883 | |
| 27 | 13.11 | 63.5 | 31.2 | 1160 | 1809 | 4000 | 4700 | 1298 | 1883 | |
| 27.5 | 13.31 | 64.1 | 31.7 | 1160 | 1809 | 4000 | 4700 | 1298 | 1883 | |
| 28 | 13.51 | 64.6 | 32.1 | 1160 | 1809 | 4000 | 4700 | 1298 | 1883 | |
| 28.5 | 13.71 | 65.1 | 32.6 | 1160 | 1809 | 4000 | 4700 | 1298 | 1883 | |
| 10 | 7.5 | 3.06 | 51.5 | 6.6 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 |
| 8 | 3.74 | 52.7 | 6.8 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 | |
| 8.5 | 3.84 | 53.7 | 7 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 | |
| 9 | 3.93 | 54.7 | 7.1 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 | |
| 9.5 | 4.02 | 55.6 | 7.3 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 | |
| 10 | 4.11 | 56.4 | 7.5 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 | |
| 10.5 | 4.21 | 57.1 | 7.7 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 | |
| 11 | 4.3 | 57.8 | 7.9 | 835 | 2445 | 1500 | 2000 | 1298 | 1803 | |
| 11.5 | 4.49 | 58.8 | 8.9 | 890 | 2470 | 2000 | 2500 | 1298 | 1893 | |
| 12 | 4.79 | 58.9 | 9.1 | 890 | 2470 | 2000 | 2500 | 1298 | 1893 | |
| 12.5 | 4.9 | 60.6 | 9.4 | 890 | 2470 | 2000 | 2500 | 1298 | 1893 | |
| 13 | 5 | 61.1 | 9.6 | 890 | 2470 | 2000 | 2500 | 1298 | 1893 | |
| 13.5 | 5.11 | 61.7 | 9.8 | 890 | 2470 | 2000 | 2500 | 1298 | 1893 | |
| 14 | 5.21 | 62.3 | 10.1 | 890 | 2470 | 2000 | 2500 | 1298 | 1893 | |
| 14.5 | 6.05 | 64.6 | 12.1 | 950 | 2590 | 2000 | 2500 | 1298 | 1893 | |
| 15 | 6.15 | 65.2 | 12.4 | 950 | 2590 | 2000 | 2500 | 1298 | 1893 | |
| 15.5 | 6.28 | 65.7 | 12.7 | 950 | 2590 | 2000 | 2500 | 1298 | 1893 | |
| 16 | 6.4 | 66.2 | 13 | 950 | 2590 | 2500 | 3000 | 1298 | 1893 | |
| 16.5 | 6.53 | 66.8 | 13.3 | 950 | 2590 | 2500 | 3000 | 1298 | 1893 | |
| 17 | 6.64 | 67.3 | 13.5 | 950 | 2590 | 2500 | 3000 | 1298 | 1893 |
| 起重量Lifting capacity (t) | 跨度Span S (m) | 起重机总重(地面操作)Crane total weight G (t) | 最大轮压Max. wheel load Rmax (kN) | 最小轮压Min. wheel load Rmin (kN) | 踏面至主梁顶 H1 (mm) | 踏面至吊钩中心 H2 (mm) | 端梁轮距 W (mm) | 端梁总长 B (mm) | 吊钩左极限 C1 (mm) | 吊钩右极限 C2 (mm) |
| 3 | 17.5 | 4.49 | 26.2 | 10 | 835 | 1465 | 2500 | 3000 | 842 | 1310 |
| 18 | 4.57 | 26.5 | 10.3 | 835 | 1465 | 2500 | 3000 | 842 | 1310 | |
| 18.5 | 4.66 | 26.7 | 10.4 | 835 | 1465 | 2500 | 3000 | 842 | 1310 | |
| 19 | 4.74 | 27 | 10.6 | 835 | 1465 | 2500 | 3000 | 842 | 1310 | |
| 19.5 | 4.84 | 27.2 | 10.8 | 835 | 1465 | 2500 | 3000 | 842 | 1310 | |
| 20 | 5.14 | 28 | 11.6 | 860 | 1500 | 3000 | 3500 | 842 | 1310 | |
| 20.5 | 5.24 | 28.3 | 11.8 | 860 | 1500 | 3000 | 3500 | 842 | 1310 | |
| 21 | 5.32 | 28.5 | 12 | 860 | 1500 | 3000 | 3500 | 842 | 1310 | |
| 21.5 | 5.42 | 28.8 | 12.3 | 860 | 1500 | 3000 | 3500 | 842 | 1310 | |
| 22 | 5.5 | 29 | 12.5 | 860 | 1500 | 3000 | 3500 | 842 | 1310 | |
| 22.5 | 5.6 | 29.3 | 12.7 | 860 | 1500 | 3000 | 3500 | 842 | 1310 | |
| 23 | 6.33 | 31.1 | 14.6 | 940 | 1540 | 3500 | 4000 | 842 | 1310 | |
| 23.5 | 6.44 | 31.4 | 14.8 | 940 | 1540 | 3500 | 4000 | 842 | 1310 | |
| 24 | 6.53 | 31.7 | 15.1 | 940 | 1540 | 3500 | 4000 | 842 | 1310 | |
| 24.5 | 6.64 | 32 | 15.3 | 940 | 1540 | 3500 | 4000 | 842 | 1310 | |
| 25 | 6.74 | 32.2 | 15.6 | 940 | 1540 | 3500 | 4000 | 842 | 1310 | |
| 25.5 | 6.85 | 32.5 | 15.9 | 940 | 1540 | 3500 | 4000 | 842 | 1310 | |
| 26 | 8.41 | 36.4 | 19.7 | 1020 | 1520 | 4000 | 4500 | 842 | 1310 | |
| 26.5 | 8.54 | 36.8 | 20.1 | 1020 | 1520 | 4000 | 4500 | 842 | 1310 | |
| 27 | 8.66 | 37.1 | 20.4 | 1020 | 1520 | 4000 | 4500 | 842 | 1310 | |
| 27.5 | 8.79 | 37.5 | 20.7 | 1020 | 1520 | 4000 | 4500 | 842 | 1310 | |
| 28 | 8.91 | 37.8 | 21 | 1020 | 1520 | 4000 | 4500 | 842 | 1310 | |
| 28.5 | 9.04 | 38.1 | 21.3 | 1020 | 1520 | 4000 | 4500 | 842 | 1310 | |
| 5 | 7.5 | 2.77 | 30.8 | 5.9 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 |
| 8 | 2.84 | 31.6 | 6 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 | |
| 8.5 | 2.93 | 32.3 | 6.1 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 | |
| 9 | 2.99 | 33 | 6.3 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 | |
| 9.5 | 3.07 | 33.6 | 6.4 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 | |
| 10 | 3.14 | 34.2 | 6.5 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 | |
| 10.5 | 3.22 | 34.7 | 6.7 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 | |
| 11 | 3.29 | 35.2 | 6.9 | 735 | 1815 | 1500 | 2000 | 1298 | 1893 | |
| 11.5 | 3.65 | 36.4 | 7.8 | 835 | 1815 | 2000 | 2500 | 1293 | 1893 | |
| 12 | 3.74 | 36.9 | 7.9 | 835 | 1815 | 2000 | 2500 | 1293 | 1893 | |
| 12.5 | 3.83 | 37.3 | 8.1 | 835 | 1815 | 2000 | 2500 | 1293 | 1893 | |
| 13 | 3.93 | 37.8 | 8.3 | 835 | 1815 | 2000 | 2500 | 1293 | 1893 | |
| 13.5 | 4.01 | 38.2 | 8.5 | 835 | 1815 | 2000 | 2500 | 1293 | 1893 | |
| 14 | 4.09 | 38.6 | 8.7 | 835 | 1815 | 2000 | 2500 | 1293 | 1893 | |
| 14.5 | 4.35 | 39.4 | 9.4 | 890 | 1840 | 2000 | 2500 | 1293 | 1893 | |
| 15 | 4.43 | 39.8 | 9.5 | 890 | 1840 | 2000 | 2500 | 1293 | 1893 | |
| 15.5 | 4.53 | 40.2 | 9.8 | 890 | 1840 | 2500 | 3000 | 1293 | 1893 | |
| 16 | 4.63 | 40.5 | 10 | 890 | 1840 | 2500 | 3000 | 1293 | 1893 | |
| 16.5 | 4.71 | 40.9 | 10.2 | 890 | 1840 | 2500 | 3000 | 1293 | 1893 | |
| 17 | 4.9 | 41.2 | 10.4 | 890 | 1840 | 2500 | 3000 | 1293 | 1893 |
Product Details
Manufacturer Profile
Production Facilities
Quality Certifications
Packaging & Shipping
Frequently Asked Questions
What information should I provide when making an inquiry?
1. Crane Capacity
2. Crane Span
3. Lifting Height
4. Work Duty (A3/A4/M3...)
5. Traveling Length
6. Control Method: Remote control with push buttons or cabin control with joystick
7. Required spare parts (rails, bus-bar, etc.)
8. Local Power Supply
9. Quantity
10. Lifting Object
11. Destination Port
Note: All parameters can be customized according to your specific requirements.
2. Crane Span
3. Lifting Height
4. Work Duty (A3/A4/M3...)
5. Traveling Length
6. Control Method: Remote control with push buttons or cabin control with joystick
7. Required spare parts (rails, bus-bar, etc.)
8. Local Power Supply
9. Quantity
10. Lifting Object
11. Destination Port
Note: All parameters can be customized according to your specific requirements.
Can this crane work in hazardous environments?
Yes! We can customize cranes for acid-proof or explosion-proof applications to meet your specific hazardous environment requirements.
Can you provide lifting accessories?
We can supply various lifting tools including lift sling belts, lift clamps, grabs, magnets, and other specialized equipment as per your requirements.
How do you guarantee quality?
We conduct continuous quality checks during manufacturing, perform strict equipment testing before shipment, and provide quality certificates. Each machine is thoroughly tested before delivery.
After-Sales Service
• Installation support with video tutorials
• 24/7 remote assistance for installation guidance and commissioning
• Professional technical support via email or telephone
• We welcome customer feedback and suggestions
• 24/7 remote assistance for installation guidance and commissioning
• Professional technical support via email or telephone
• We welcome customer feedback and suggestions
Similar Products
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
Company
Henan Huagong Industrial Group Co., Ltd.
Location
140 meters north of Dongyangze Road, Guiling Avenue, Changyuan City, Xinxiang City, Henan Province,China
Contact Person
Zalika
