A4-A5 Work Duty BMH Type Semi Gantry Crane with 20 Ton Capacity and Electric Power Source
Price:
CN¥34,843/sets >=1 sets
MOQ:
1 SET
Delivery Time:
25 DAYS
Brand:
HGCRANE
Product Description
A4 A5 Work Duty Single Leg Single Beam BMH Type Semi Gantry Crane
Electric power source semi gantry crane with rail traveling system, designed for industrial applications requiring efficient material handling with capacities ranging from 1 to 16 tons.
Main Beam
Q235/Q345 carbon structuralsteel. Strong box type withstandard deflection. If deliverby container, then need todivide the main beam.
Q235/Q345 carbon structuralsteel. Strong box type withstandard deflection. If deliverby container, then need todivide the main beam.
Ground Beam
Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.
Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.

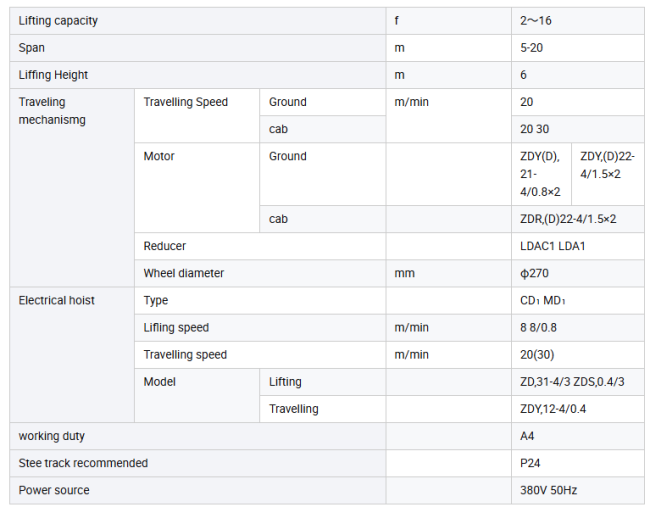

| Lifting capacity | f | 2-16 | ||
| Span | m | 5-20 | ||
| Liffing Height | m | 6 | ||
| Traveling mechanismg |
Travelling Speed | Ground | m/min | 20 |
| cab | 20 30 | |||
| Motor | Ground |
ZDY.(D)22-4/1.5x2 ZDY(D)21-4/0.8x2 |
||
| cab | ZDR,(D)22-4/1.5x2 | |||
| Reducer | LDAC1 LDA1 | |||
| Wheel diameter | mm | 270 | ||
| Electrical hoist | Type | CD1 MD1 | ||
| Lining speed | m/min |
8 8/0.8 | ||
| Travelling speed | m/min |
20(30) | ||
| Model | Lirting | ZD,31-4/3 ZDS,0.4/3 | ||
| Travelling | ZDY,12-4/0.4 | |||
| working duty | A4 | |||
| Stee track recommended | P24 | |||
| Power source | 380V50HZ | |||
Key Features
- A4/A5 work duty classification for industrial applications
- Single leg single beam design for space efficiency
- BMH type semi gantry configuration
- Rail traveling system for smooth operation
- Electric power source with reliable performance
- Capacity range: 1 to 16 tons
- Robust construction for heavy-duty industrial use
Technical Specifications
| Specification | Details |
|---|---|
| Capacity Range | 1 - 16 Tons |
| Work Duty | A4 / A5 Classification |
| Design Type | Single Leg Single Beam BMH Semi Gantry |
| Power Source | Electric |
| Travel System | Rail Traveling |
| Application | Industrial Material Handling |
Applications
Ideal for manufacturing facilities, warehouses, workshops, and industrial plants requiring efficient overhead material handling with space-saving semi gantry design. Suitable for various industries including automotive, metalworking, construction, and general manufacturing.
