1000 kg Load Capacity Overhead Crane Hook with Safety Latch and Steel Construction for Gantry Cranes
Price:
600 USD
MOQ:
1 set
Delivery Time:
25 days
Brand:
HUAGONG
Product Description
1000 kg Load Capacity Overhead Crane Hook Featuring Safety Latch Suitable for Gantry Cranes from 3.2ton to 100ton
Product Overview
Applications
Hook blocks are essential components in crane machinery systems. These devices suspend from wire ropes using pulley mechanisms and serve as the primary load-handling interface. Known for their straightforward manufacturing process and exceptional durability, crane hooks provide reliable performance in various industrial lifting applications.
Hook Classification & Specifications

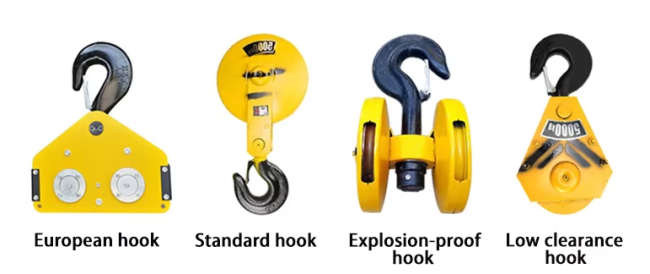

- By Design: Available in single hook and double hook configurations
- Strength Grades: Classified into five mechanical property categories: M, P, S, T, V
- Manufacturing Methods: Produced as forging hooks and strap type hooks
Technical Parameters
| model | lifting load | hook head | pulley | pulley Dia. | ratio | weight kg |
| DGJ | 5t | 20#1 6Mn DG20 |
HT QT Q235 |
430/450 | 2 | 128 |
| 10t | 430/450 | 3 | 230 | |||
| 16t | 565 | 3 | 377 | |||
| 20t | 565 | 4 | 489 | |||
| 32t | 680 | 4 | 835 | |||
| 50t | 785 | 5 | 1346 | |||
| 75t | 920 | 5 | 2500 | |||
| 80t | 920 | 5 | 3265 | |||
| 100t | 920 | 5 | 4964 | |||
| 100t double hook | 890 | 6 | 4425 |
| Schematic diagram of hook unit structure | |||||||||||||||
| Specification | Parameter Dimensions (mm) | Wire Rope | Weight (kg) | ||||||||||||
| A | B | H | E | G | L | L1 | L2 | C | U | ⌀D1 | ⌀D | Diameter (mm) | Number of rope strands | ||
| 3.2 | 775 | 350 | 420 | 320 | 150 | 220 | / | / | 50 | 65 | / | 300 | 11-14 | 4 | 80 |
| 5 | 858 | 370 | 480 | 320 | 184 | 240 | / | / | 65 | 85 | / | 350 | 11-14 | 4 | 100 |
| 10 | 1080 | 378 | 526 | 410 | 243 | / | 92 | / | 90 | 120 | 380 | 250 | 11-14 | 6 | 200 |
| 16 | 1330 | 506 | 660 | 485 | 307 | / | 172 | / | 115 | 150 | 500 | 310 | 14-20 | 6 | 330 |
| 20 | 1415 | 524 | 650 | 510 | 333 | 135 | 93 | / | 130 | 170 | / | 500 | 18-20 | 8 | 450 |
| 32 | 1740 | 604 | 780 | 620 | 420 | 155 | 105 | / | 160 | 210 | / | 610 | 18-20 | 8 | 845 |
| 50 | 1965 | 750 | 815 | 710 | 510 | 170 | 109 | / | 205 | 270 | 710 | 610 | 20-22 | 10 | 1500 |
| 75 | 2335 | 970 | 1012 | 930 | 600 | 185 | 135 | / | 250 | 320 | 800 | 500 | 26-32 | 10 | 2500 |
| 100 | 3130 | 1360 | 1162 | 1100 | 955 | 350 | 131 | 200 | 270 | 355 | 1000 | 800 | 28-34 | 12 | 4200 |
| 200 | 3548 | 1617 | 1090 | 1185 | 1298 | 159 | 284 | / | / | 340 | 1100 | 900 | 30-38 | 16 | 9100 |
