Iron Coil Lifting Clamp C Shape Hook Lifter with 32 Ton Load Capacity and 1 Year Warranty for Industrial Use
Price:
CN¥6,961.64/sets 3-7 sets
MOQ:
3 sets
Delivery Time:
Negotiable
Brand:
HUAGONG
Product Description
Iron Coil Lifting Clamp - C Type Lifting Hook
Professional C-shape hook lifter designed for industrial manufacturing plant equipment with capacity up to 32 tons.
Product Overview
The C-hook is specifically designed for handling steel coils, including coil tempering, warehouse stacking, storage, and transport operations. Available in different configurations based on application requirements.
Primary Applications: Horizontal lifting of steel coils
Load Range: 3.2-32 tons
Selection Guide: Load 3.2T - Type A; Above 3.2T - Type B

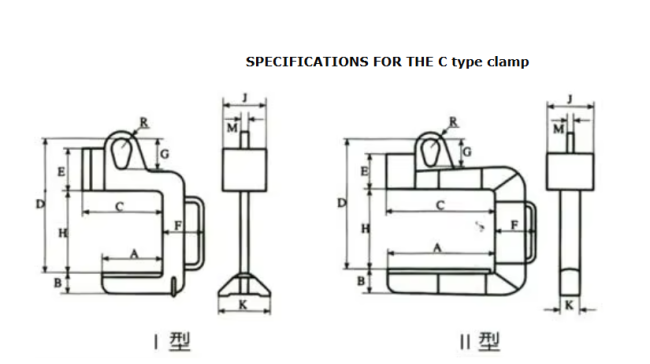

Product Specifications
| Type I | Type II |
|---|---|
 |
 |
| Model | WLL (T) | Coil Size (inner diameter * outer diameter * length) |
|---|---|---|
| DJQ5 | 5 | φ400 * φ1000 * 1000 |
| DJQ10 | 10 | φ500 * φ1200 * 1300 |
| DJQ15 | 15 | φ600 * φ1500 * 1250 |
| DJQ20 | 20 | φ700 * φ1800 * 1270 |
Key Features
- Cost-effective design with convenient maintenance requirements
- Optimized for specific stack space and lifting order applications
- Balanced work efficiency for industrial operations
- Extended service life with simple, straightforward operation
