Glass Suction Cup Lift with 800 kg Load Capacity Customizable Dimension and CE Certification for Glass Installation
Price:
500~9000 USD
MOQ:
1 set
Delivery Time:
15 days
Brand:
HUAGONG
Product Description
AC Power Customizable Glass Installation Robot with Electric Suction Cup System
This advanced glass handling robot features a rotating electric suction cup lift system with CE certification, designed for efficient material handling in industrial applications.
Primarily designed for laser cutting machines to achieve semi-automatic loading and unloading operations, as well as CNC punching and material handling applications. The system utilizes vacuum suction technology for rapid material handling with high stability, minimal vibration, and extended service life. Features movable suction cups with adjustable plate area control.
Product Specifications
| Parameter | JS-J1000-5m | JS-J800-3m | JS-J800-2m |
|---|---|---|---|
| Product Type | Scalable Heavy-Duty Plug-in Type | Scalable Heavy-Duty Plug-in Type | Scalable Heavy-Duty Plug-in Type |
| Safety Loading Capacity | 1000kg | 800kg | 800kg |
| Suction Cup Quantity | 12 | 8 | 8 |
| Suction Cup Diameter (mm) | 200 | 200 | 200 |
| Size (mm) | 5000*1000 | 3000*1000 | 2200*1000 |
| Sheet Size (mm) | 6000*1500 | 4000*1500 | 3000*1500 |
| Working Power Supply | 220V | 220V | 220V |
Key Features
Low noise operation - German-engineered vacuum pump with low vibration gas displacement and quiet vacuum adsorption

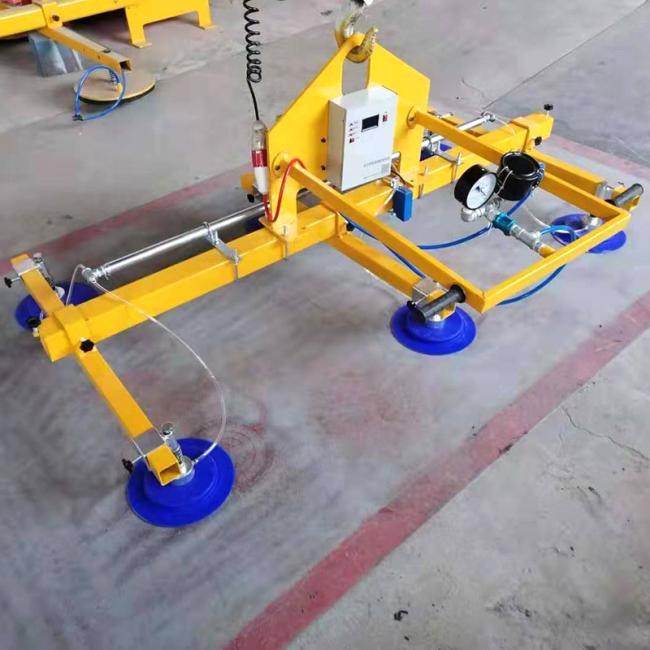

Low noise operation - German-engineered vacuum pump with low vibration gas displacement and quiet vacuum adsorptionExcellent material quality - Rubber suction cups capable of handling rough surface plates and withstanding high temperatures![Industrial glass manipulation equipment]()
High efficiency - Rapid response with one-second suction engagement and two-second release cycle
Products Features
Core feature:
1. Dual Safety Guarantee: Dual-oop vacuumsystem + power-off self-locking (pressureretention 30 minutes), compliant with EN13155 safety standards.
2. Non-deotructive Handling: Food-grade NBRsuction cups enable zero-contact operation,
suitable for flat/curved/coated glass(thickness 1 -50mm).
suitable for flat/curved/coated glass(thickness 1 -50mm).
3. Efficient and Flexible:
(1 Single-person operation for 180" rotation
and precise positioning
2) Modular suction cups for quick
replacement (5 minutes to switch between
different sizes)
(1 Single-person operation for 180" rotation
and precise positioning
2) Modular suction cups for quick
replacement (5 minutes to switch between
different sizes)
4. Extreme Adaptability: Resistant to -20'C to150°C temperatures,
IP54 waterproof anddustproof, self-adaptive within a slope of 3".

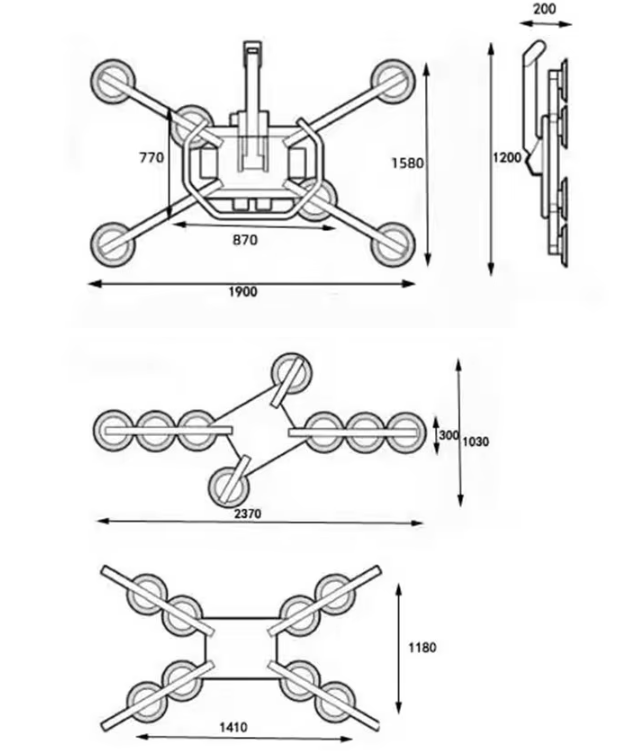

Product Paramenters
| Load-bearing | Number of suction cups | Size of euction cups | Main beam | Cross beam | Size of the main beam |
| 1000KG | 10 | 230mm | 5m | 1m | 80*80mm |
| 1500KG | 12 | 230mm | 5m | 1m | 80*80mm |
| 2000KG | 12 | 230mm | 5m | 1m | 80*80mm |
