China Electric Operated Hydraulic Brake for Crane Operations - Safe and Reliable with High Transmission Efficiency for sale

Electric Operated Hydraulic Brake for Crane Operations - Safe and Reliable with High Transmission Efficiency

Price Negotiable
Price: 80~700 USD
MOQ: 1 SET
Delivery Time: 7 DAYS
Product Description

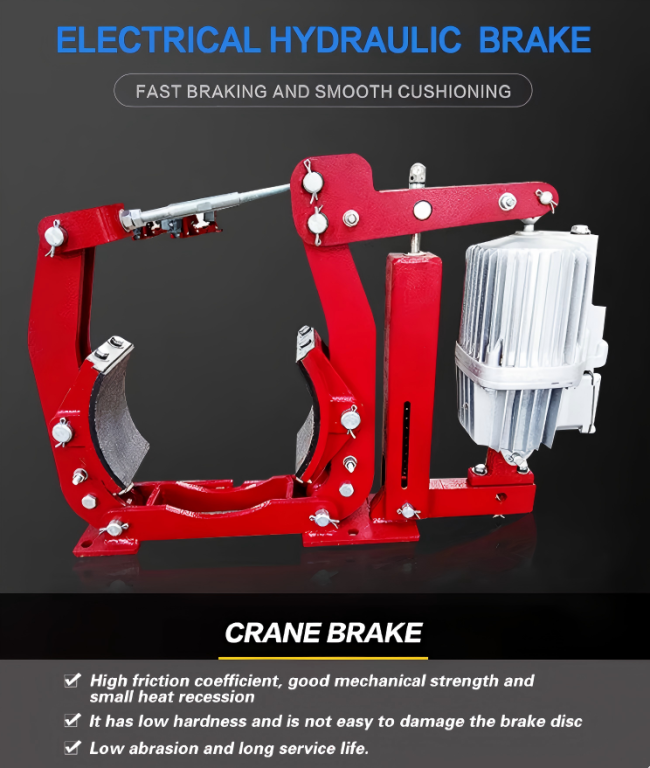

Electric Operated Hydraulic Brake Electromagnetic Brake Electric Hydraulic Brake and Winch
Designed specifically for crane operations, this machinery parts hydraulic crane brake is engineered for demanding industrial applications.
Product Overview
Our hydraulic crane brakes are widely used across multiple industries including lifting, metallurgy, mining, ports, docks, and construction machinery. These brakes deliver exceptional performance with outstanding reliability and efficiency.
Key Features
  • Safe and reliable operation
  • Smooth, consistent braking performance
  • High frequency of action capability
  • Excellent transmission efficiency
  • Long operational lifespan
  • No lubrication required during use

Model Drum Dia
D		 Brake torque
N.m		 Brake A b C d E F G₁ G₂ Hₘₐₓ h₁ i k M n L Weight
(kg)
Hydraulic Brake Thrust
YWZ-160/E23 Ed23/5 160 80-160 1 430 65 160 14 145 85 145 195 435 132 55 130 120 8 145 32.5
YWZ-200/E23 Ed23/5 200 112-200 1 470 80 160 14 175 90 165 265 500 160 55 145 140 10 150 35
YWZ-200/E30 Ed30/5 200 140-315 1 470 80 160 14 175 90 165 265 500 160 55 145 140 10 150 38
YWZ-250/E23 Ed23/5 250 140-250 1 535 100 160 18 205 110 200 290 570 190 65 180 160 12 180 42
YWZ-250/E30 Ed30/5 250 180-315 1 535 100 160 18 205 110 200 290 570 190 65 180 160 12 180 45
YWZ-250/E50 Ed50/6 250 315-500 1 575 100 190 18 205 110 200 290 570 190 65 180 160 12 180 50
YWZ-300/E23 Ed23/5 300 180-280 1.25 590 125 160 18 255 115 245 330 585 225 80 220 180 12 170 70
YWZ-300/E30 Ed30/5 300 250-400 1.25 590 125 160 18 255 115 245 330 585 225 80 220 180 12 170 70
YWZ-300/E50 Ed50/6 300 400-630 1.25 630 125 190 18 255 115 245 330 585 225 80 220 180 12 170 75
YWZ-300/E80 Ed80/6 300 630-1000 1.25 630 125 190 18 255 115 245 330 585 225 80 220 180 12 170 80
YWZ-315/E23 Ed23/5 315 180-280 1.25 590 125 160 18 255 115 245 330 585 225 80 220 180 12 170 70
YWZ-315/E30 Ed30/5 315 250-400 1.25 590 125 160 18 255 115 245 330 585 225 80 220 180 12 170 70
YWZ-315/E50 Ed50/6 315 400-630 1.25 630 125 190 18 255 115 245 330 585 225 80 220 180 12 170 75
YWZ-315/E80 Ed80/6 315 630-1000 1.25 630 125 190 18 255 115 245 330 585 225 80 220 180 12 170 80
YWZ-400/E30 Ed30/5 400 200-470 1.25 670 160 160 22 310 160 310 420 715 280 100 270 220 14 170 88
YWZ-400/E50 Ed50/6 400 400-800 1.25 710 160 190 22 310 160 310 420 715 280 100 270 220 14 170 95
YWZ-400/E80 Ed80/6 400 630-1250 1.25 710 160 190 22 310 160 310 420 715 280 100 270 220 14 170 110
YWZ-400/E121 Ed121/6 400 1000-2000 1.25 700 160 240 22 310 160 310 420 775 280 100 270 220 14 170 125
YWZ-500/E50 Ed50/6 500 450-1000 1 810 200 190 22 385 180 365 535 810 335 130 325 280 16 180 175
YWZ-500/E80 Ed80/6 500 800-1600 1 810 200 190 22 385 180 365 535 810 335 130 325 280 16 180 175
YWZ-500/E121 Ed121/6 500 1120-2500 1 810 200 240 22 385 180 365 535 845 335 130 325 280 16 180 190
YWZ-500/E201 Ed201/6 500 2000-4000 1 800 200 240 22 385 180 365 535 845 335 130 325 280 16 180 190
YWZ-600/E121 Ed121/6 600 1800-2800 1.6 925 240 240 26 470 220 450 600 1035 425 170 400 340 25 185 300
YWZ-600/E201 Ed201/6 600 2500-4500 1.6 925 240 240 26 470 220 450 600 1035 425 170 400 340 25 185 305
YWZ-600/E301 Ed301/6 600 4000-6500 1.6 925 240 240 26 470 220 450 600 1035 425 170 400 340 25 185 305
YWZ-630/E121 Ed121/6 630 1800-3150 1.6 925 250 240 26 470 220 450 600 1035 425 170 400 340 25 185 310
YWZ-630/E201 Ed201/6 630 2500-5000 1.6 925 250 240 26 470 220 450 600 1035 425 170 400 340 25 185 310
YWZ-630/E301 Ed301/6 630 4000-7100 1.6 925 250 240 26 470 220 450 600 1035 425 170 400 340 25 185 315
YWZ-700/E201 Ed201/6 700 2500-5600 1.6 980 280 240 27 525 240 500 650 1140 475 190 450 360 30 220 420
YWZ-700/E301 Ed301/6 700 4000-8000 1.6 980 280 240 27 525 240 500 650 1140 475 190 450 360 30 220 425
YWZ-710/E201 Ed201/6 710 2500-5600 1.6 980 280 240 27 525 240 500 650 1140 475 190 450 360 30 220 420
YWZ-710/E301 Ed301/6 710 4000-8000 1.6 980 280 240 27 525 240 500 650 1140 475 190 450 360 30 220 425
YWZ-800/E301/12 Ed301/12 800 10500-12500 2 1230 320 240 27 595 280 570 830 1355 530 210 520 440 30 240 545
Technical Specifications
Operating Conditions
  • Environment temperature: -20℃ to +50℃
  • Working environment must be free from flammable, explosive, and corrosive gases (anti-corrosive products available for harsh conditions)
  • Maximum air relative humidity: 90%
  • Altitude compliance: Meets GB755-2000 standards

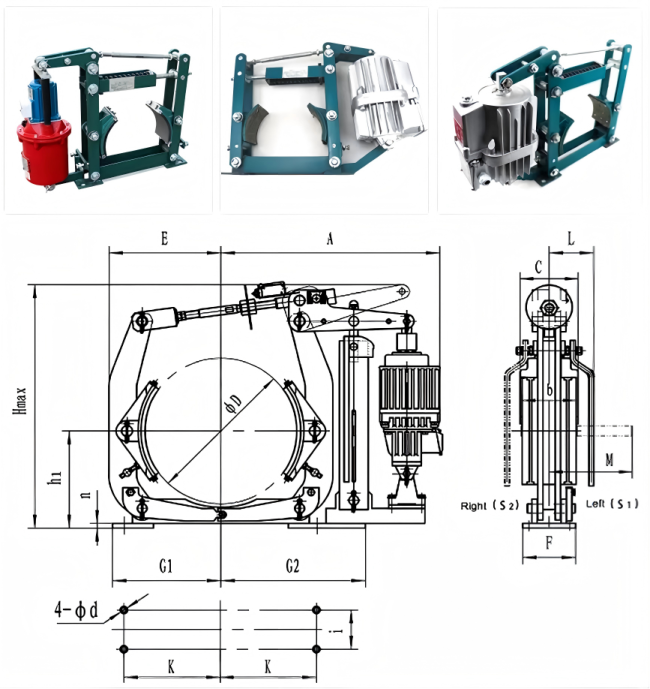

Shape Dimension Figures
Brake dimensional diagram 1 Brake dimensional diagram 2 Brake technical drawing 1 Brake technical drawing 2 Brake technical drawing 3 Brake technical drawing 4 Brake technical drawing 5 Brake technical drawing 6 Brake technical drawing 7 Brake technical drawing 8 Brake technical drawing 9
