LDZ Type Garbage Handling Single Girder Overhead Crane with 1-20ton Lifting Capacity and Ground Control+Remote Control for A3-A4 Work Duty
Price:
4000~9000 USD
MOQ:
1 SET
Delivery Time:
25 Days
Brand:
HGCRANE
Product Description
LDZ Type Garbage Handling Single Girder Overhead Crane With Grab Bucket
PROFESSIONAL CUSTOMIZATION

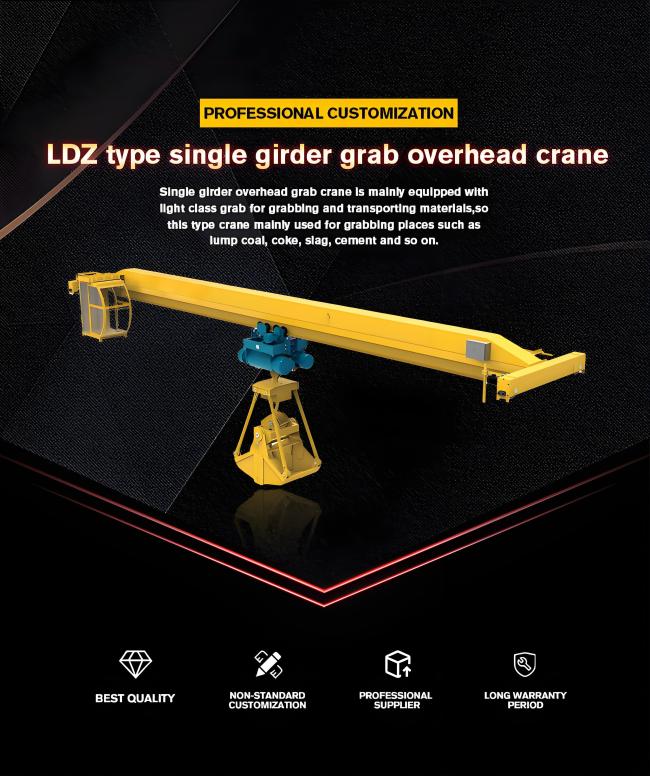

LDZ type single girder grab overhead crane
Single girder overhead grab crane Is malnly equlpped with light class grab for grabblng and transporting materlals,so
this type crane malnly used for grabblng places such as
lump coal, coke, slag, coment and so on.
this type crane malnly used for grabblng places such as
lump coal, coke, slag, coment and so on.

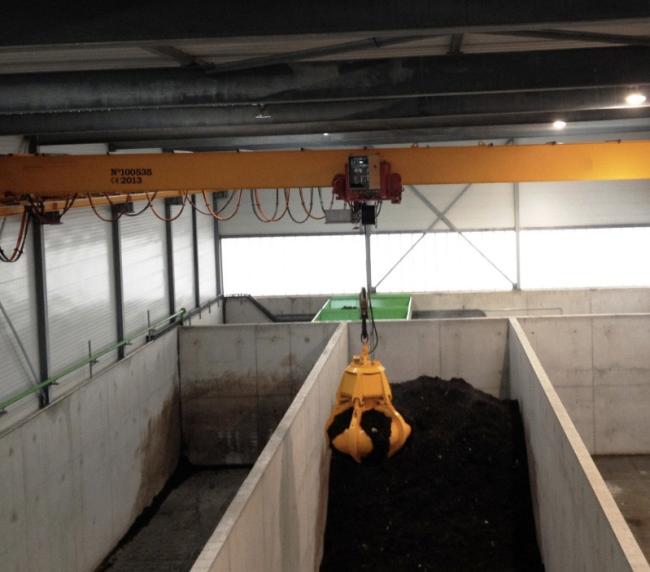

This industrial overhead crane system is specifically designed for handling bulk materials using a grab bucket attachment. It efficiently processes various materials including scrap metal, garbage, wood sand, grain, coal slag, silt, and wine lees.
System Components
The complete system includes double main beams, end beams, trolley assembly, grab bucket, crane running mechanism, electrical systems, and operator cabin. The grab device serves as the primary component for material handling operations.
Grab Bucket Options
Available grab types include single-rope grabs, double-rope grabs, and electric grabs. Selection can be customized based on material characteristics, size, and shape requirements to ensure optimal performance.
Key Features & Benefits
- High Security: Minimal vibration and noise generation with enhanced safety in extreme climatic conditions
- Adaptable Operation: Adjustable lifting height, span, and walking speed with optional remote control and intelligent control systems
- Easy Operation: Simple track design and clear structure requiring only one operator for lifting, transport, and material placement
- High Space Utilization: Ceiling-mounted single support system with compact structure for optimal space efficiency
Technical Specifications
Main Crane Parameters
| Lifting Capacity | 1-20 tons |
| Lifting Height | 6-30 meters |
| Span | 7.5-28.5 meters |
| Power Supply | AC 380V 50Hz |
| Work Class | A3/A4 |
| Wheel Diameter | Φ270, Φ400 |
| Width of Rail | 37-70 mm |
Crane Travelling Mechanism
| Travelling Speed | 20, 30 m/min |
| Power | 0.8*2, 1.5*2, 2.2*2 kW |
Lifting & Travelling Mechanism
| Travelling Speed | 20, 30 m/min |
| Hoist Type | CD/MD |
| Lifting Speed | 6-30 m/min |
Electric Hoist Specifications
| Model | MD₁ model, CD₁ model |
| Lifting Speed | 8/0.8, 7/0.7, 3.5/0.35 m/min (MD₁) 8, 7, 3.5 m/min (CD₁) |
| Lifting Height | 6, 9, 12, 18, 24, 30 meters |
| Travelling Speed | 20, 30 m/min |
| Motor Type | Cone squirrel-cage model |
