China Lightweight Mini Aluminum Gantry Crane with 450 kg Capacity for Small Scale Operations for sale

Lightweight Mini Aluminum Gantry Crane with 450 kg Capacity for Small Scale Operations

Price Negotiable
Price: 500~3000 USD
MOQ: 1 SET
Delivery Time: 7 days
Brand: HG CRANE
Product Description
Lightweight Mini Aluminum Gantry Crane for Small Scale Operations PRG
This compact aluminum gantry crane is specifically designed for small-scale industrial operations, offering exceptional portability and ease of use while maintaining robust lifting capabilities.

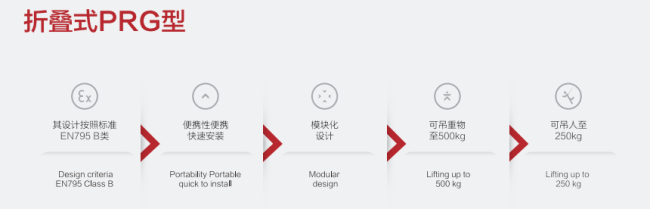

Folding Type PRG Model
Design criteria EN795 Class B  »  Portability Portablequick to instal  »  Modular design  »  Lifting up to500 kg  »  Lifting up to250 kg

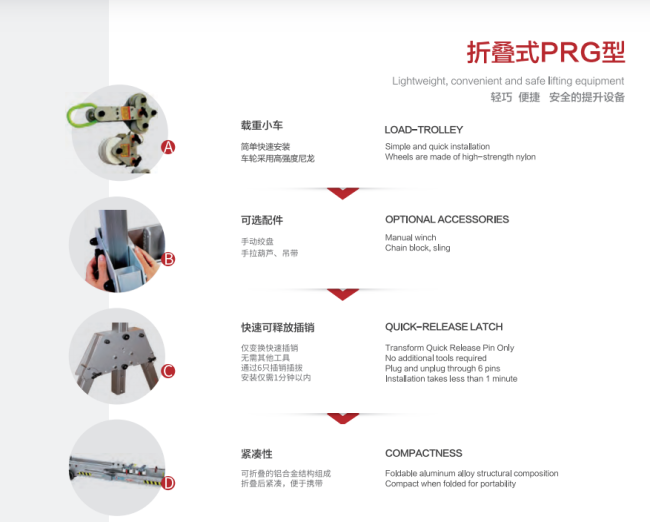

Lightweight, convenient and safe lifting equipment
LOAD-TROLLEY
Simple and quick installationWheels are made of high-strength nylon
OPTIONALACCESSORIES
Manual winchChain block, sling
QUICK-RELEASE LATCH
Transform Quick Release Pin OnlyNo additional tools required
Plug and unplug through 6 pins
Installation takes less than 1 minute
COMPACTNESS
Foldable aluminum alloy structural compositionCompact when folded for portability

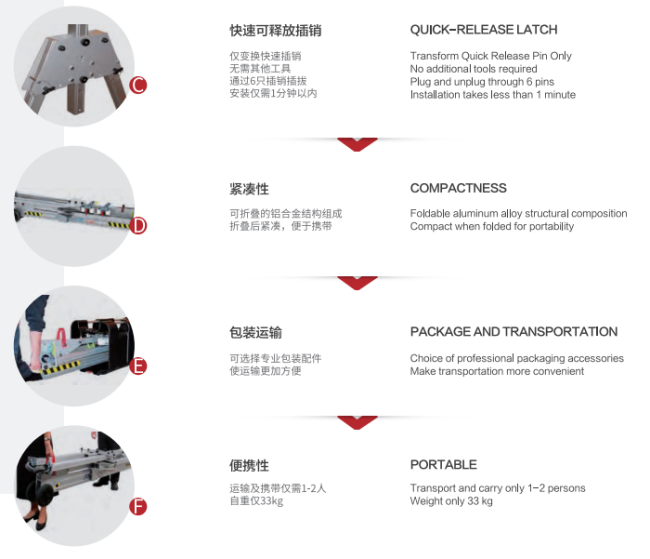

QUICK-RELEASE LATCH
Transform Quick Release Pin Only
No additional tools required
Plug and unplug through 6 pins
Installation takes less than 1 minute
COMPACTNESS
Foldable aluminum alloy structural compositionCompact when folded for portability
PACKAGE AND TRANSPORTATION
Choice of professional packaging accessoriesMake transportation more convenient
PORTABLE
Transport and carry only 1-2 personsWeight only 33 kg

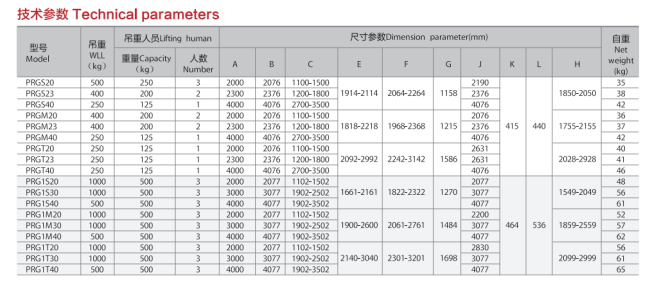

 Technical parameters

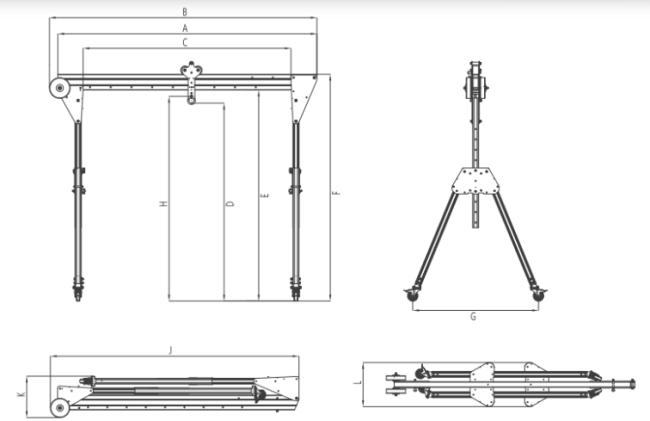

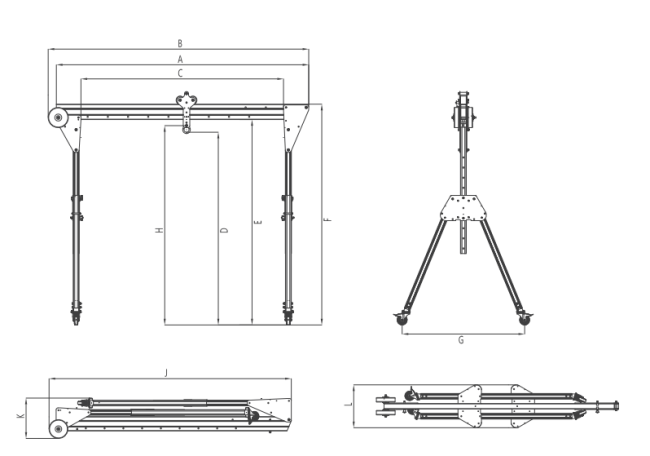

Model WLL(kg) Lifting human Dimension parameter(mm) Net weight(kg)
Capacity(kg) Number A B C E F G J K L H
PRGS20 500 250 3 2000 2076 1100-1500 1914-2114 2064-2264 1158 2190 415 440 1850-2050 35
PRGS23 400 200 2 2300 2376 1200-1800 2376 38
PRGS40 250 125 1 4000 4076 2700-3500 4076 42
PRGM20 400 200 2 2000 2076 1100-1500 1818-2218 1968-2368 1215 2076 1755-2155 36
PRGM23 400 200 2 2300 2376 1200-1800 2376 37
PRGM40 250 125 1 4000 4076 2700-3500 4076 42
PRGT20 250 125 1 2000 2076 1100-1500 2092-2992 2242-3142 1586 2631 2028-2928 40
PRGT23 250 125 1 2300 2376 1200-1800 2631 41
PRGT40 250 125 1 4000 4076 2700-3500 4076 46
PRG1S20 1000 500 3 2000 2077 1102-1502 1661-2161 1822-2322 1270 2077 464 536 1549-2049 48
PRG1S30 1000 500 3 3000 3077 1902-2502 3077 56
PRG1S40 500 500 3 4000 4077 1902-3502 4077 61
PRG1M20 1000 500 3 2000 2077 1102-1502 1900-2600 2061-2761 1484 2200 1859-2559 52
PRG1M30 1000 500 3 3000 3077 1902-2502 3077 57
PRG1M40 500 500 3 4000 4077 1902-3502 4077 62
PRG1T20 1000 500 3 2000 2077 1102-1502 2140-3040 2301-3201 1698 2830 2099-2999 56
PRG1T30 1000 500 3 3000 3077 1902-2502 3077 61
PRG1T40 500 500 3 4000 4077 1902-3502 4077 65
Lightweight aluminum gantry crane overview showing compact design

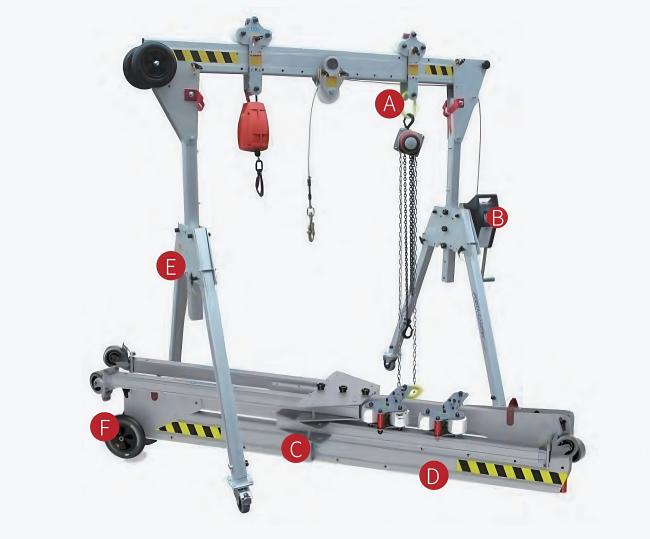

Mini gantry crane in operational environment with detailed construction
Close-up view of aluminum gantry crane structural components
Gantry crane assembly details and connection points
Mini crane lifting mechanism and hoist system
Aluminum gantry crane mobility features and wheel system
Compact gantry crane dimensional specifications and measurements
Lightweight gantry crane application examples and use cases
